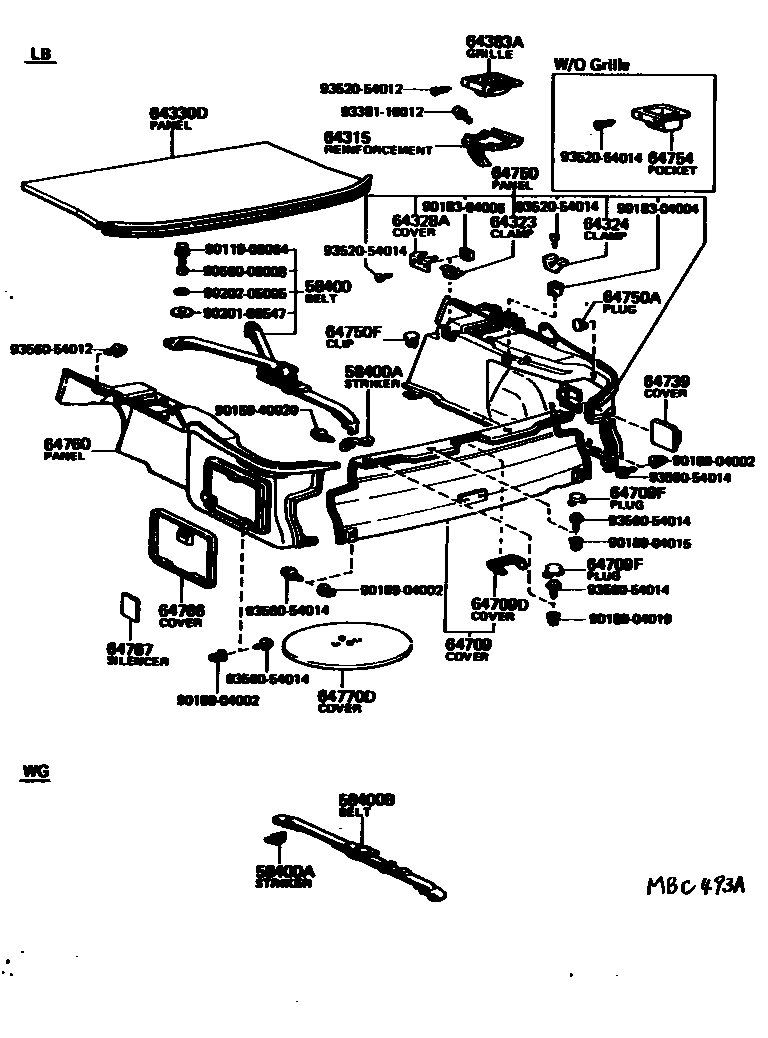

DECK BOARD & DECK TRIM COVER
58400BELT ASSY, LUGGAGE HOLD, NO.1
58400BBELT ASSY, LUGGAGE HOLD, NO.2
64315REINFORCEMENT SUB-ASSY, PACKAGE TRAY BRACKET
64323CLAMP, PACKAGE TRAY TRIM, NO.1
64324CLAMP, PACKAGE TRAY TRIM, NO.2
64328ACOVER, PACKAGE TRAY TRIM CLAMP
64330DPANEL ASSY, PACKAGE TRAY TRIM
64383AGRILLE, SPEAKER, REAR(FOR DECK TRIM)
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
64709COVER SUB-ASSY, LOWER BACK PANEL
64709DCOVER, BACK DOOR STRIKER
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
64709FPLUG, HOLE(FOR LOWER BACK PANEL COVER)
64739COVER, DECK TRIM SIDE WASHER
64750PANEL ASSY, DECK SIDE TRIM, RH
64750APLUG, HOLE(FOR DECK SIDE TRIM PANEL)
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64754POCKET, QUARTER TRIM
64760PANEL ASSY, DECK SIDE TRIM, LH
64766COVER SUB-ASSY, QUARTER TRIM JACK
64767SILENCER, JACK COVER
9011906064
main90119-06064
9015940020
main90159-40020
9018304004
main90183-04004
9018304006
main90183-04006
9018904002
main90189-04002
9018904015
main90189-04015
9018904019
main90189-04019
9020106547
main90201-06547
9020205005
main90202-05005
9056006008
main90560-06008
9338116012
main93381-16012
9352054012
main93520-54012
9352054014
main93520-54014
9356054012
main93560-54012
9356054014
main93560-54014
36 parts on this diagram · 1 diagram in section
