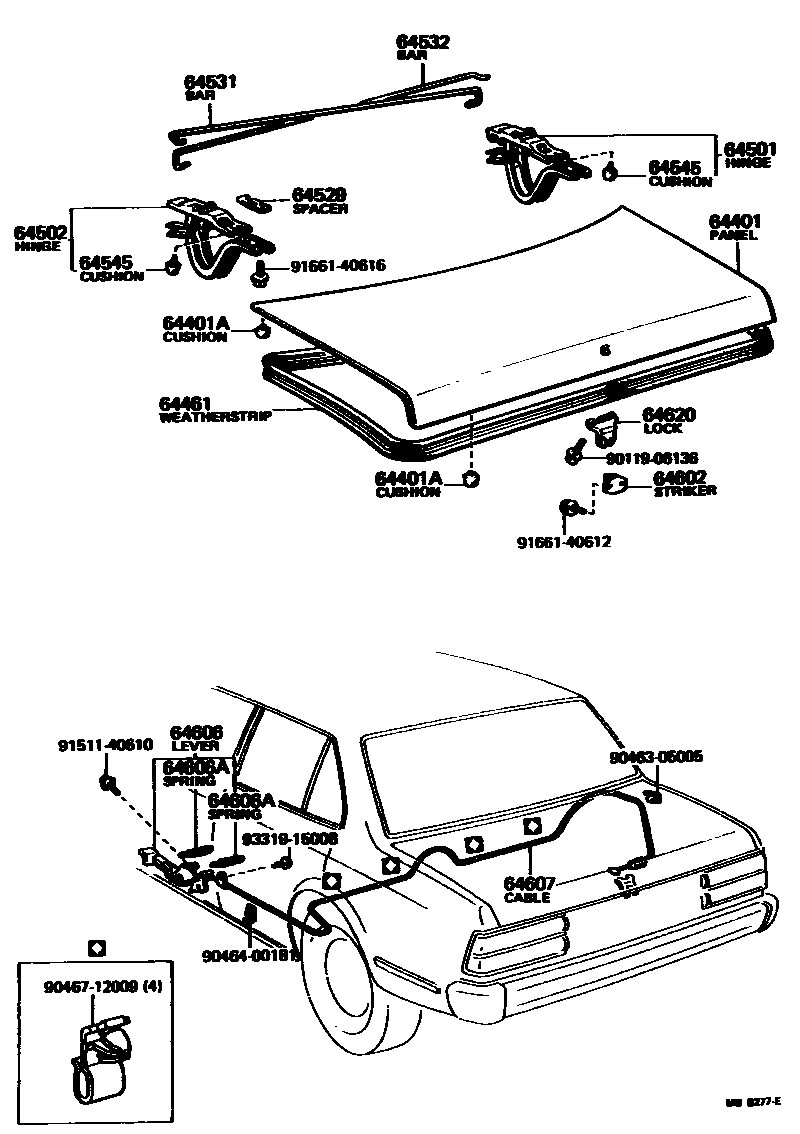

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20360iRT135..SED198102-198112

main64401-20370iRT13#..SED197809-198102

sub64401-20360

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07001iRT135..SED198012-198112

OD=15

sub90541-07003

main90541-07022iRT13#..SED197809-198012

OD=15

sub90541-07001

main90541-08004iRT13#..SED197809-198112

14X15.5

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20110iRT13#..SED197809-198112

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20050iRT13#..SED197809-198112

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20040iRT13#..SED197809-198112

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iRT13#..SED197809-198112

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20070iRT13#..SED197809-198112

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20070iRT13#..SED197809-198112

64545CUSHION, LUGGAGE DOOR HINGE

main90541-09003iRT134..SED197809-197909

main90541-09013iRT13#..SED197909-198112

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iRT13#..SED197809-198112

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20030iRT13#..SED..LE197809-198112

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iRT13#..SED..LE197809-198112

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20030iRT13#..SED..LE197809-198110

L=4190

main64607-20031iRT135..LB,SED198110-198112

L=4250

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20030iRT13#..SED..LE197809-198112

main64610-20040iRT13#..SED..DLX197809-198112

9011906136

main90119-06136

9046305005

main90463-05005

9046400181

main90464-00181

9046712009

main90467-12009

9151140610

main91511-40610

9166140612

main91661-40612

9166140616

main91661-40616

9331915008

main93319-15008

22 parts on this diagram · 1 diagram in section
