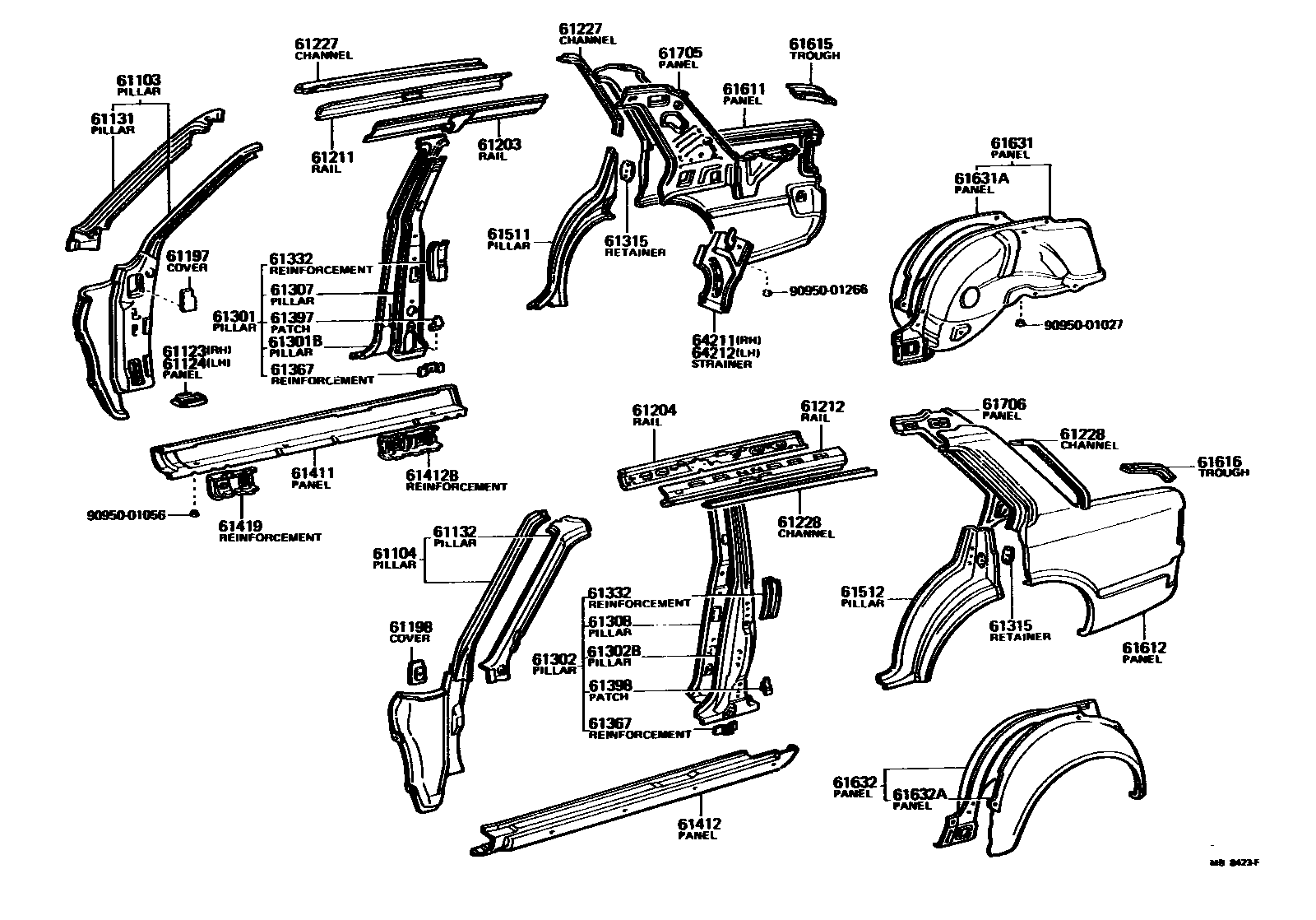

SIDE MEMBER
61103PILLAR SUB-ASSY, FRONT BODY, RH
61104PILLAR SUB-ASSY, FRONT BODY, LH
61123PANEL, COWL SIDE LOWER, RH
61124PANEL, COWL SIDE LOWER, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61197COVER, FRONT PILLAR SERVICE HOLE, NO.1
61198COVER, FRONT PILLAR SERVICE HOLE, NO.2
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61227CHANNEL, ROOF DRIP SIDE, REAR RH
CTR
CTR
RR
RR
61228CHANNEL, ROOF DRIP SIDE, REAR LH
CTR
CTR
RR
RR
61301PILLAR SUB-ASSY, CENTER BODY, RH
sub61301-20171
61301BPILLAR, CENTER BODY, OUTER RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
sub61302-20181
61302BPILLAR, CENTER BODY, OUTER LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61332REINFORCEMENT, CENTER BODY PILLAR, INNER
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
RH
LH
61397PATCH, CENTER BODY PILLAR, INNER RH
61398PATCH, CENTER BODY PILLAR, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61412BREINFORCEMENT, ROCKER PANEL, NO.2
RH
LH
61419REINFORCEMENT, ROCKER OUTER PANEL
RH
LH
61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631PANEL, QUARTER WHEEL HOUSE, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632PANEL, QUARTER WHEEL HOUSE, LH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
W/SUN ROOF
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
W/SUN ROOF
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64212STRAINER, PACKAGE TRAY TO FLOOR, LH
9095001027
main90950-01027
9095001056
main90950-01056
9095001266
main90950-01266
46 parts on this diagram · 4 diagrams in section
