CONSOLE BOX & BRACKET
58267BRACKET, CONSOLE BOX SUPPORT, CENTER
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
LIGHT BROWN,BROWN
58810CONSOLE ASSY
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
LIGHT BROWN,BROWN
58828ABRACKET, CONSOLE BOX, LOWER
58834PANEL, CONSOLE END
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
58835PANEL, CONSOLE, UPPER
W/STEREO
W/STEREO
W/STEREO,BLACK,BLACK
W/STEREO,DARK WINE,RED/MAROON
W/STEREO,DARK BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
DARK BROWN,BROWN
58862PLATE, CONSOLE FINISH
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
58881COVER, SHIFTING HOLE
sub58843-20020
58884COVER, STEREO OPENING
W/STEREO
58895COVER, SWITCH HOLE, NO.1
BLACK
58940CONSOLE ASSY, REAR
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
BLACK,BLACK
DARK WINE,RED/MAROON
LIGHT BROWN,BROWN
BLACK,BLACK
DARK WINE,RED/MAROON
LIGHT BROWN,BROWN
58944COVER, PARKING BRAKE HOLE
BLACK,BLACK
DARK WINE,RED/MAROON
BEIGE,BEIGE
LIGHT BROWN,BROWN
58985RETAINER, CONSOLE BOX
58985ARETAINER, CONSOLE BOX, NO.2
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7404
7501
9015960047
main90159-60047
9015960086
main90159-60086
9165140820
main91651-40820
9354014012
main93540-14012
9354015012
main93540-15012
9356055010
main93560-55010
9356055014
main93560-55014
9356055016
main93560-55016
9356654512
main93566-54512

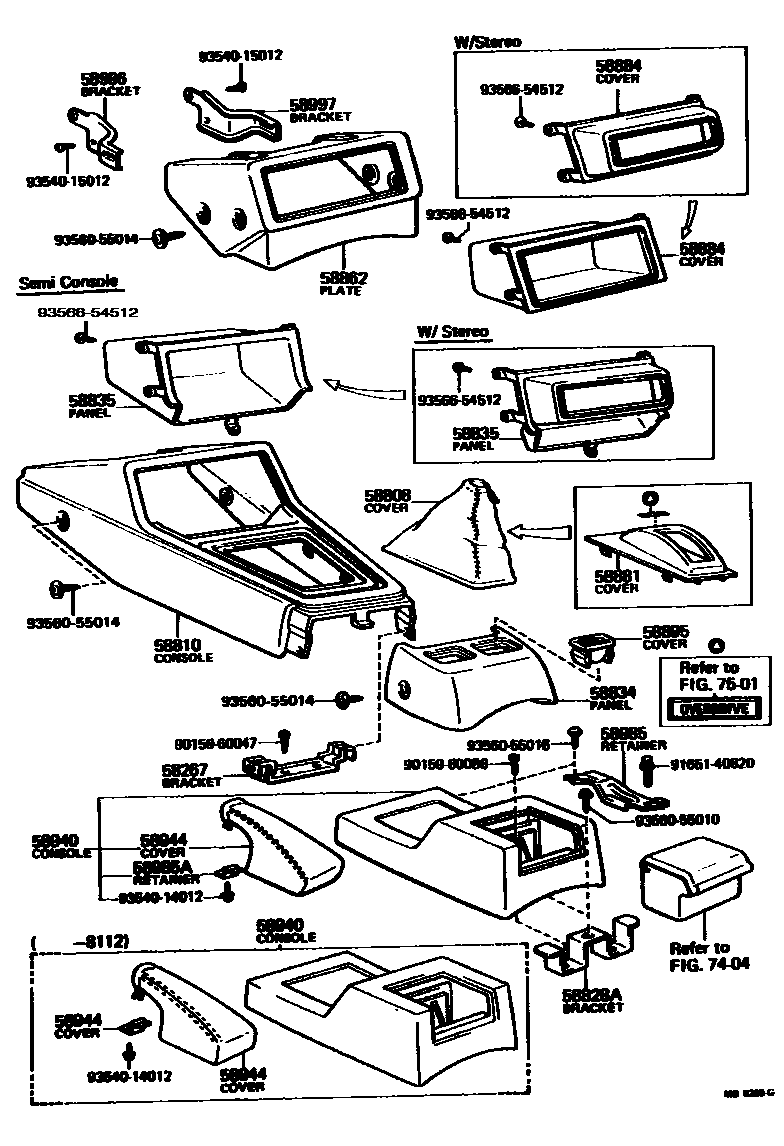

27 parts on this diagram · 3 diagrams in section
