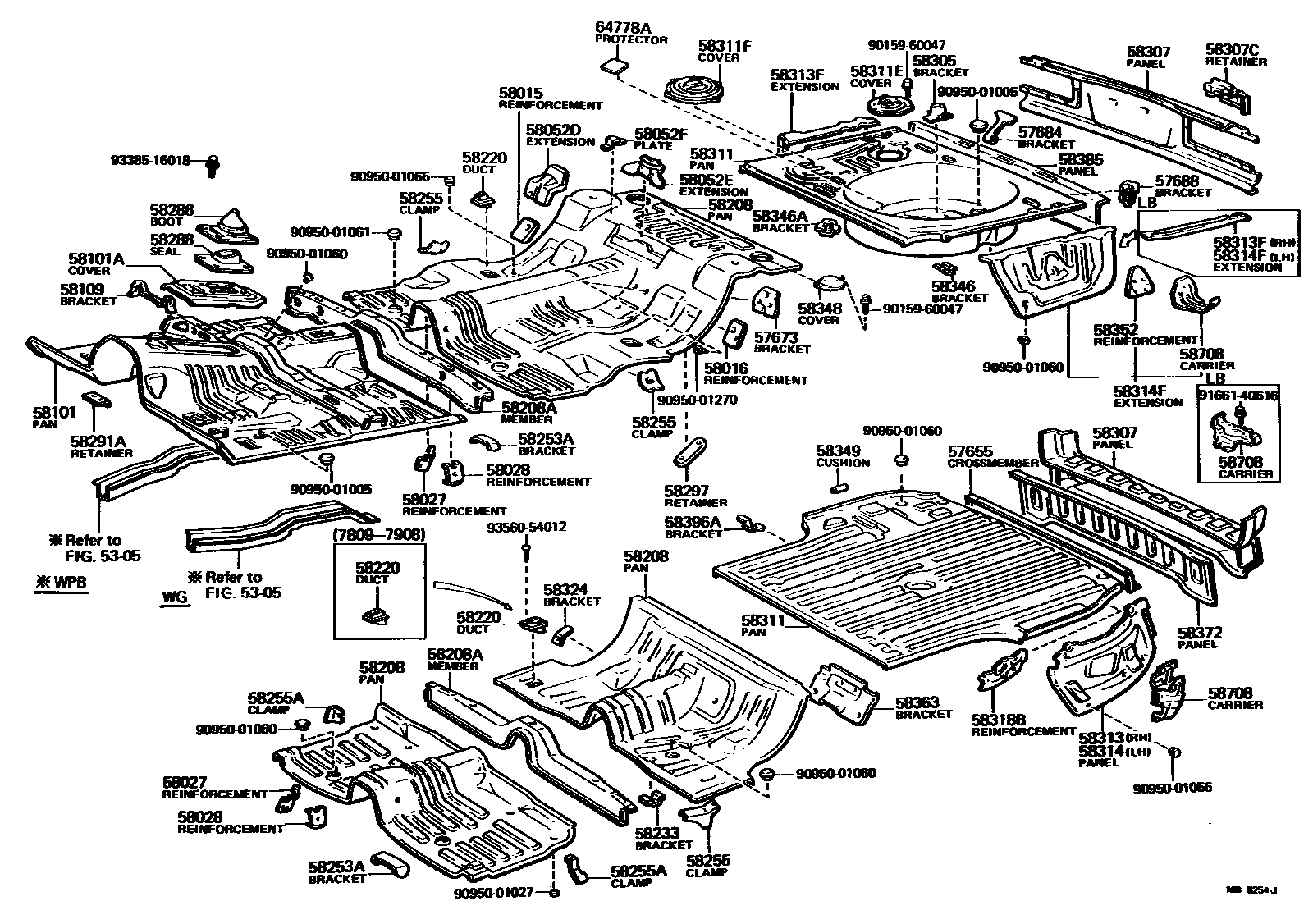

FLOOR PAN & LOWER BACK PANEL
5305
57655MEMBER, REAR FLOOR CROSS, NO.5
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57684BRACKET, FUEL TANK, REAR
57688BRACKET, EXHAUST PIPE CLAMP, NO.2
58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
CTR FLOOR PAN
58028REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2
58052DEXTENSION, CENTER FLOOR TO PACKAGE TRAY
RH
LH
58052EEXTENSION, CENTER FLOOR TO BRACE
58052FPLATE, LUGGAGE HOLD BELT ANCHOR
58101PAN SUB-ASSY, FRONT FLOOR
sub58101-20904
sub58101-20905
sub58111-14040
sub57257-14040
sub57258-14040
sub57408-14010
sub57417-14021
sub57418-14011
sub58131-12020
sub58132-14050
sub58135-20010
sub58141-14010
sub58171-14021
sub58183-14020
sub58184-14020
sub58266-14040
sub58277-14020
sub58278-14020
sub58294-14030
sub90461-07004
sub58111-20042
sub57257-14040
sub57258-14040
sub57408-14010
sub57417-14021
sub57418-14011
sub58107-20020
sub58131-12020
sub58132-14050
sub58135-20010
sub58141-14010
sub58183-14020
sub58184-14020
sub58266-14040
sub58277-14020
sub58278-14020
sub58294-14030
sub90461-07004
58101ACOVER, TRANSMISSION AUXILIARY
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58208PAN, CENTER FLOOR
RR
RR
FR
58208AMEMBER, CENTER FLOOR CROSS, NO.1
58220DUCT ASSY, CENTER FLOOR VENT
58233BRACKET, EXHAUST PIPE MOUNTING
58253ABRACKET, PARKING CABLE CLAMP
58255CLAMP, PARKING BRAKE CABLE, NO.1
RH
LH
RH
LH
58255ACLAMP, PARKING BRAKE CABLE, NO.2
RH
LH
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58291ARETAINER, ACCELERATOR PEDAL
RH
LH
58297RETAINER, SEAT BELT RETRACTOR TO CENTER FLOOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307CRETAINER, LOWER BACK TRIM
RH
LH
58311PAN, REAR FLOOR
58311ECOVER, REAR FLOOR SERVICE HOLE
58311FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58313PANEL, REAR FLOOR SIDE, RH
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314PANEL, REAR FLOOR SIDE, LH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58318BREINFORCEMENT, WASHER TANK BRACKET
58324BRACKET, FLEXIBLE HOSE
58346BRACKET, REAR FLOOR HEAT INSULATOR
sub58345-14020
58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58348COVER, REAR ABSORBER SERVICE HOLE
RH
LH
58349CUSHION, REAR FLOOR SIDE
58352REINFORCEMENT, JACK CLAMP
58363BRACKET SUB-ASSY, DIFF CARRIER BUMPER
58372PANEL, BODY LOWER BACK, INNER
58385PANEL, REAR VALANCE
58396ABRACKET, WIRE HARNESS CLAMP
64778APROTECTOR, SPARE WHEEL
9015960047
main90159-60047
9095001005
main90950-01005
9095001027
main90950-01027
9095001056
main90950-01056
9095001060
main90950-01060
9095001061
main90950-01061
9095001065
main90950-01065
9095001270
main90950-01270
9166140616
main91661-40616
9338516018
main93385-16018
9356054012
main93560-54012
60 parts on this diagram · 3 diagrams in section
