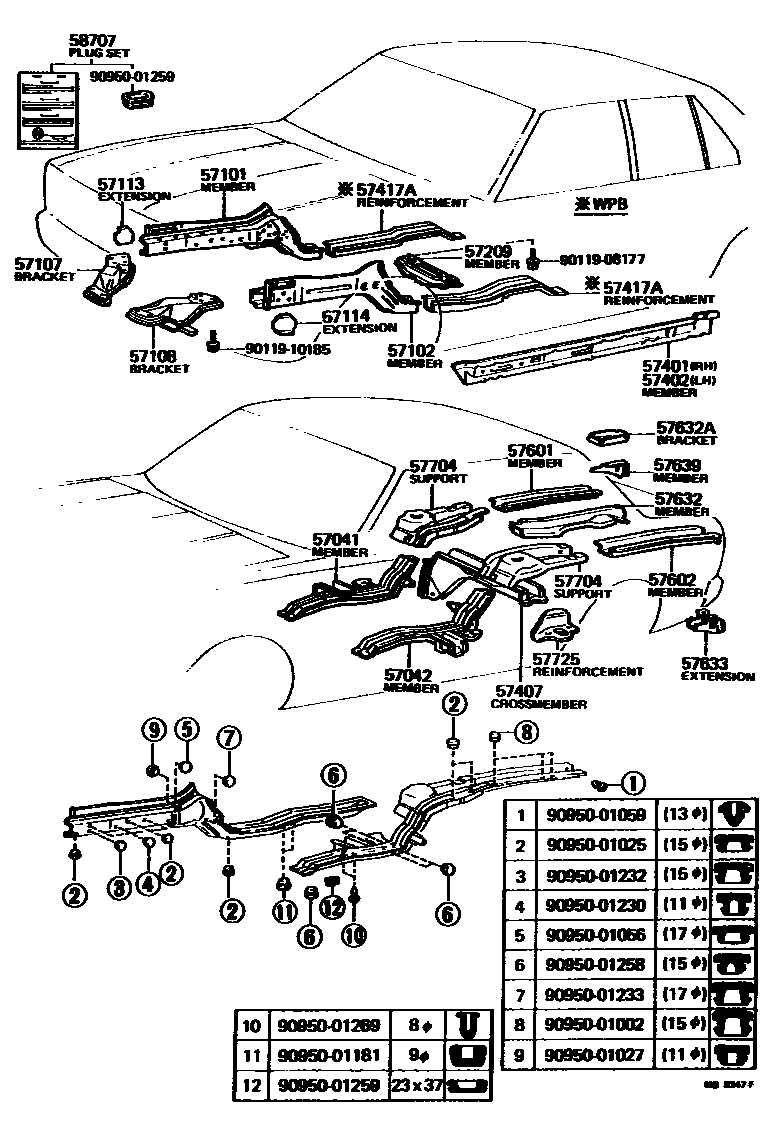

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

57041MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH

main57041-20010iRT134..LB,SED197809-197912

main57041-20011iRT13#..LB,SED197912-198112

57042MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH

main57042-20010iRT134..LB,SED197809-197912

main57042-20011iRT13#..LB,SED197912-198112

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20240iRT13#..LPB197809-198112

main57101-20250iRT134..WPB198001-198003

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20230iRT13#..LPB197809-198112

main57102-20250iRT134..WPB198001-198003

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14012iRT13#..DLX197809-198112

main57107-14040iRT13#197809-198112

W/POWER STEERING

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14012iRT13#..DLX197809-198112

main57108-14040iRT13#197809-198112

W/POWER STEERING

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14050iRT13#197809-198112

57114EXTENSION, FRONT SIDE MEMBER, LH

main57113-14050iRT13#197809-198112

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14061iRT134..CND197809-198008

main57209-14160iRT135..5F198008-198112

main57209-20080iRT135..4FC198008-198112

main57209-20100iRT134..USA197809-198008

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-20150iRT13#..LPB197809-198112

sub57401-20160

main57401-20170iRT134..WPB198001-198003

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-20150iRT13#..LPB197809-198112

sub57402-20160

main57402-20170iRT134..WPB198001-198003

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57405-14021iRT134..LB,SED197809-197901

main57405-14040iRT13#..LB,SED197901-198112

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-14021iRT135198008-198112

RH

main57417-20020iRT134..WPB198001-198003

RH

main57418-14011iRT135198008-198112

LH

main57418-20020iRT134..WPB198001-198003

LH

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20090iRT13#..LB,SED197809-198112

main57601-91256iRT134..WG197809-197908

main57601-91258iRT13#..WG197908-198112

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20090iRT13#..LB,SED197809-198112

main57602-91256iRT134..WG197809-197908

main57602-91258iRT13#..WG197908-198112

57632MEMBER, REAR FLOOR, CENTER NO.1

main57632-14010iRT13#..LB,SED197809-198107

main57632-14020iRT135..LB,SED198107-198112

57632ABRACKET, REAR BUMPER ARM SUPPORT, CENTER

main57616-14050iRT13#..LB,SED197809-198112

57633EXTENSION, REAR FLOOR SIDE MEMBER

main57633-20020iRT13#..LB,SED197809-198112

57639MEMBER, REAR FLOOR, CENTER NO.2

main57639-14010iRT13#..LB,SED197809-198107

main57639-14020iRT135..LB,SED198107-198112

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14010iRT13#..LB,SED197809-198112

RH

main57704-14010iRT13#..LB,SED197809-198112

LH

57725REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main57725-14010iRT13#..LB,SED197809-198112

RH

main57726-14010iRT13#..LB,SED197809-198112

LH

58707PLUG SET, HOLE

main58707-14010iRT13#..LB,SED197811-198112

9005001025

main90050-01025

9005001059

main90050-01059

9005001258

main90050-01258

9011908177

main90119-08177

9011910185

main90119-10185

9095001002

main90950-01002

9095001027

main90950-01027

9095001056

main90950-01056

9095001181

main90950-01181

9095001230

main90950-01230

9095001232

main90950-01232

9095001233

main90950-01233

9095001259

main90950-01259

9095001269

main90950-01269

36 parts on this diagram · 4 diagrams in section
