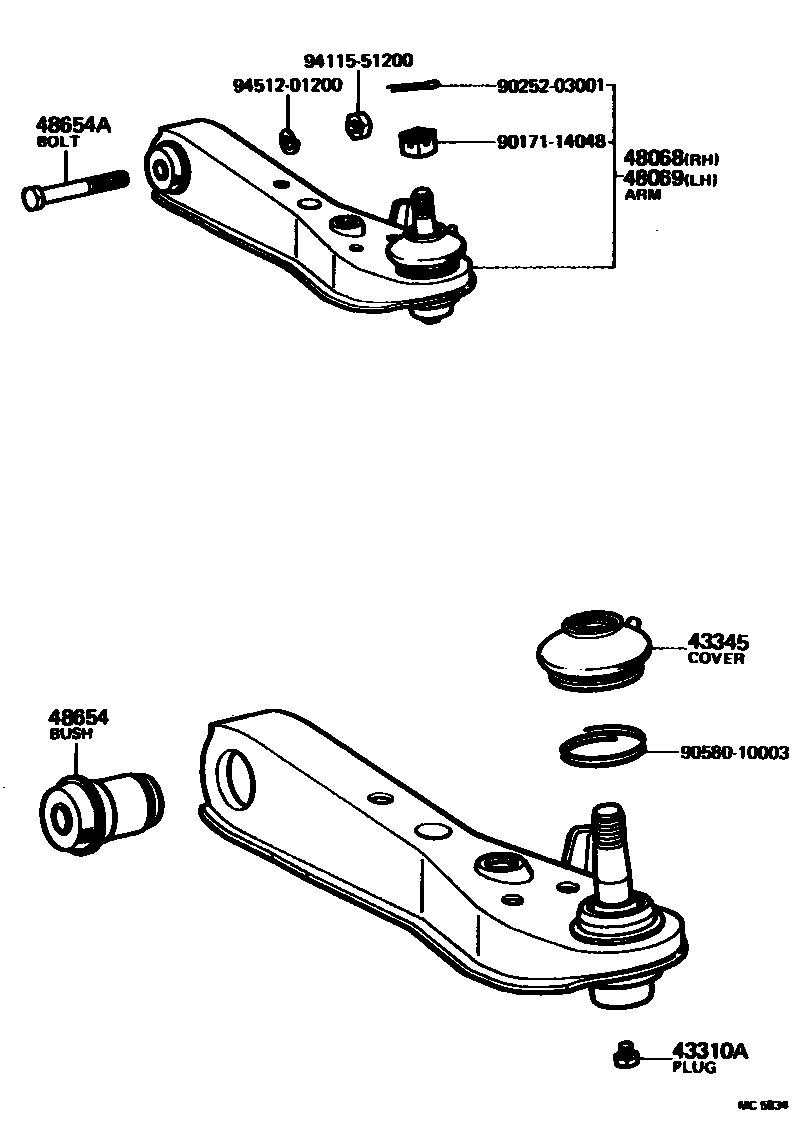

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iRT13#197809-198112

43345COVER, LOWER BALL JOINT DUST

main43345-14020iRT13#197809-198112

sub43345-14010

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19036iRT13#197809-198112

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19036iRT13#197809-198112

48654BUSH, LOWER ARM

main48654-12010iRT13#197809-198112

48654ABOLT, HEXAGON(FOR LOWER ARM)

main90101-12291iRT13#197809-198112

9017114048

main90171-14048

9025203001

main90252-03001

9058010003

main90580-10003

9411551200

main94115-51200

9451201200

main94512-01200

11 parts on this diagram · 1 diagram in section
