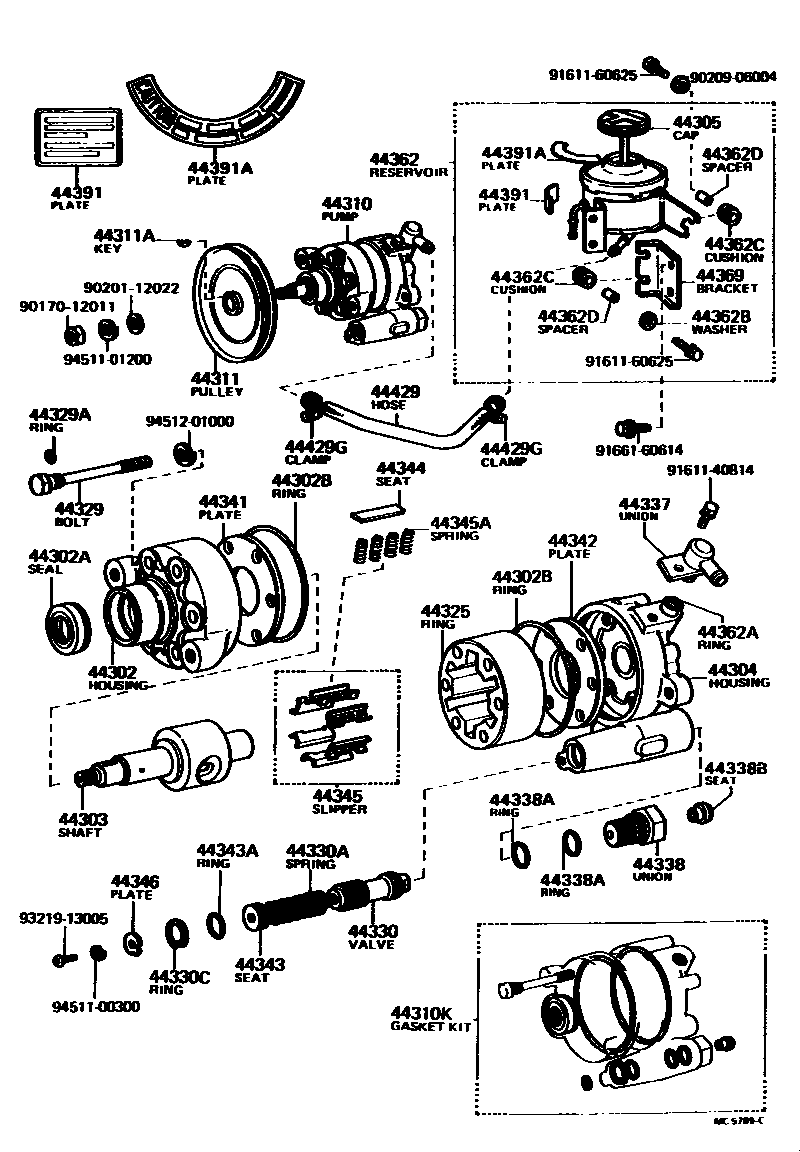

VANE PUMP & RESERVOIR (POWER STEERING)
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44303SHAFT SUB-ASSY, W/ROTOR
L=39.9825-39.9800
L=39.9775-39.9800
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-22040
44310PUMP ASSY, VANE
44311AKEY, VANE PUMP PULLEY
44325RING, FIXED(FOR VANE PUMP)
MARK 1,L=40.0025-40.0050
MARK 2,L=40.0000-40.0025
44329BOLT, VANE PUMP FRONT HOUSING & REAR HOUSING SET
44329ARING, O(FOR VANE PUMP HOUSING SET BOLT)
sub96711-19007
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330CRING, SNAP(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44338ARING, O(FOR PRESSURE PORT UNION)
OD=25.5,ID=22.5
44338BSEAT, UNION(FOR PRESSURE PORT UNION)
44341PLATE, VANE PUMP SIDE, FRONT
44342PLATE, VANE PUMP SIDE, REAR
44344SEAT, SPRING(FOR VANE PUMP)
44345SLIPPER, VANE PUMP
NO MARK,L=39.942-39.937
NO MARK,L=39.932-39.937
44345ASPRING, COMPRESSION(FOR VANE PUMP SLIPPER)
44346PLATE, SNAP RING LOCK
44362RESERVOIR, OIL(FOR VANE PUMP)
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
sub96711-19013
44362BWASHER(FOR VANE PUMP OIL RESERVOIR)
44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)
44362DSPACER(FOR VANE PUMP OIL RESERVOIR)
44369BRACKET, OIL RESERVOIR, NO.1
44391PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391APLATE, OIL RESERVOIR CAUTION
sub44392-35010
44429HOSE, RESERVOIR TO OIL PUMP
44429GCLAMP, RESERVOIR TO OIL PUMP HOSE
9017012011
main90170-12011
9020112022
main90201-12022
9020906004
main90209-06004
9161140814
main91611-40814
9161160625
main91611-60625
9166160614
main91661-60614
9321913005
main93219-13005
9451100300
main94511-00300
9451101200
main94511-01200
9451201000
main94512-01000
48 parts on this diagram · 2 diagrams in section
