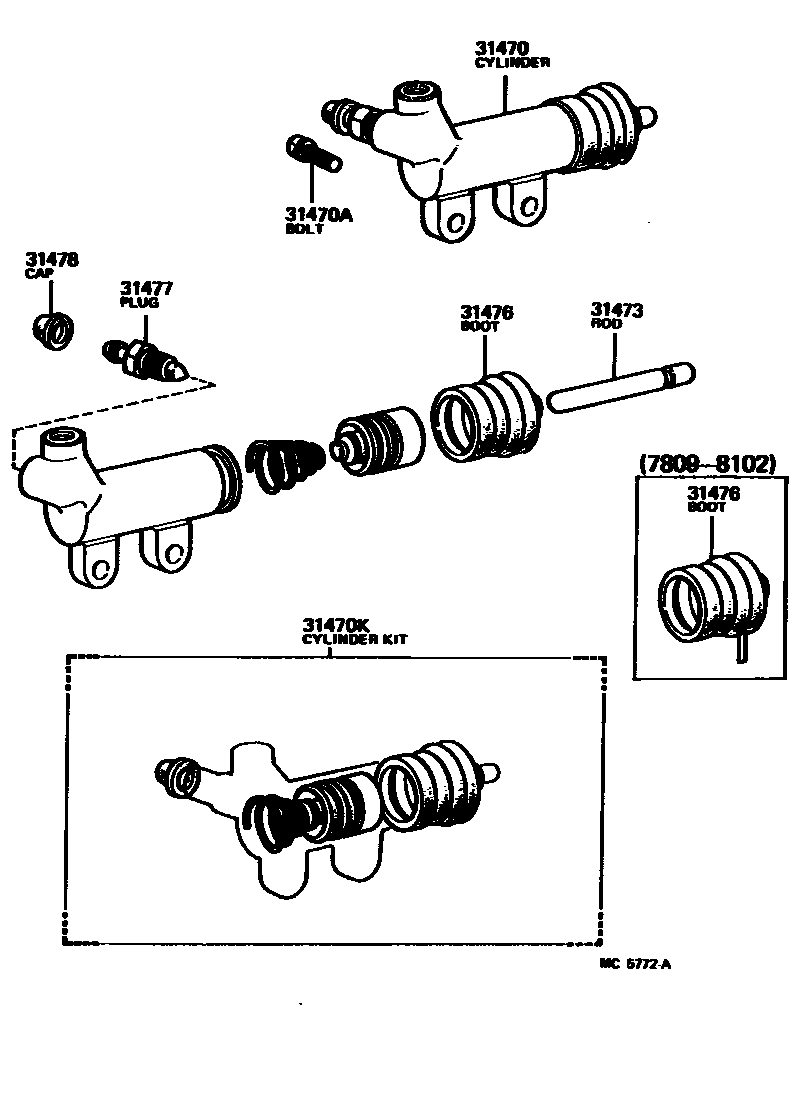

CLUTCH RELEASE CYLINDER

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14020iRT135..5F198008-198102

sub31470-14021

main31470-14021iRT135..5F198102-198112

sub31470-20190

main31470-20150iRT134..MTM197809-198008

sub31470-20151

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iRT13#..MTM197809-198112

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-22020iRT135..5F198102-198112

sub04313-12030

main04313-30100iRT13#..MTM197809-198102

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14010iRT135..5F198008-198102

main31473-20030iRT134..MTM197809-198008

main31473-22010iRT135..5F198102-198112

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRT135..5F198102-198112

main31476-30040iRT13#..MTM197809-198102

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRT13#..MTM197809-198112

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRT13#..MTM197809-198112

7 parts on this diagram · 1 diagram in section
