CLUTCH & RELEASE FORK

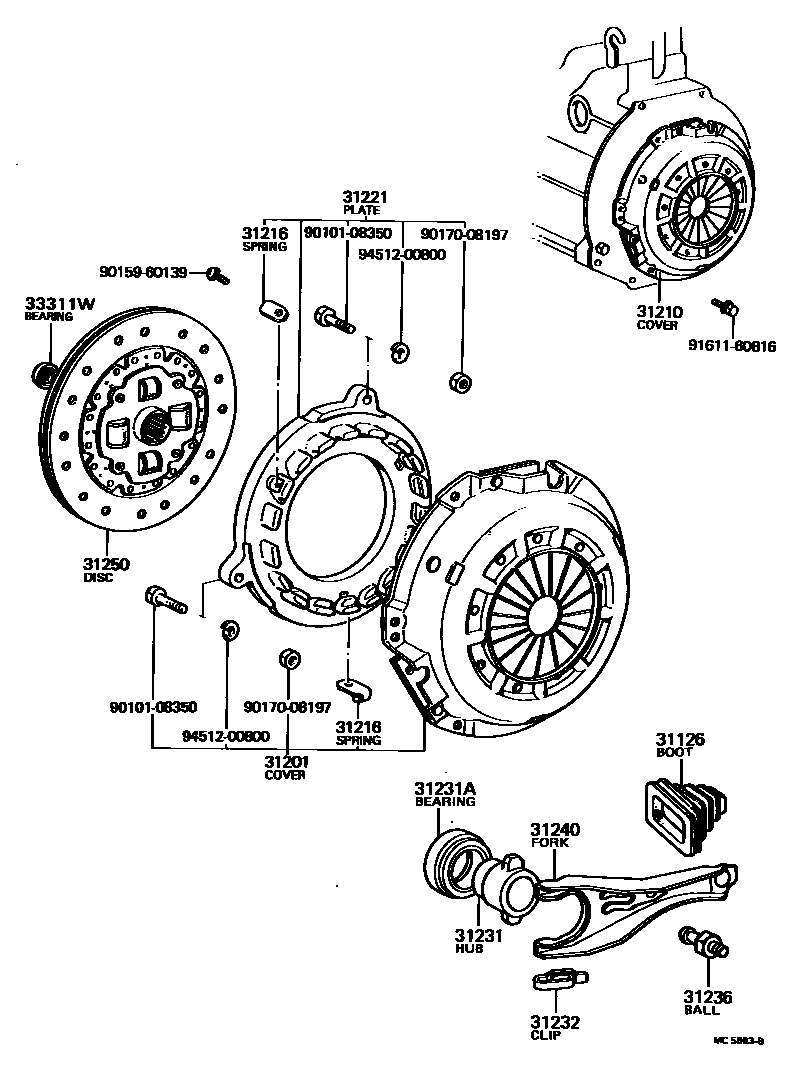

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-20060i197809-198112

31201COVER SUB-ASSY, CLUTCH

main31201-29085i198008-198112

main31201-39045i197809-197908

main31201-39046i197908-198003

main31201-39047i198003-198008

31210COVER ASSY, CLUTCH

main31210-30140i197809-198003

main31210-30142i198003-198008

main31210-36029i198008-198112

31216SPRING, CLUTCH RETRACTING

main31216-30010i197809-198112

31221PLATE, CLUTCH PRESSURE

main31221-39025i197809-198008

main31221-39056i198008-198112

31231HUB, CLUTCH RELEASE BEARING

main31231-20070i197809-197903

main31231-20071i197903-198008

main31231-20090i198008-198112

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001i197809-198002

main90363-40008i198002-198008

main90363-40015i198008-198012

main90363-40022i198012-198112

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010i197809-198112

31236BALL, RELEASE FORK

main31236-20020i197809-198107

main31236-30060i198107-198112

31240FORK ASSY, CLUTCH RELEASE

main31204-20050i197809-198008

main31204-20070i198008-198112

31250DISC ASSY, CLUTCH

main31250-22042i197809-197812

main31250-22043i197812-197910

main31250-22044i197910-198008

main31250-30200i198008-198112

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i198008-198112

main97143-06201i197809-198008

9010108350

main90101-08350

9015960139

main90159-60139

9017008197

main90170-08197

9161160816

main91611-60816

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
