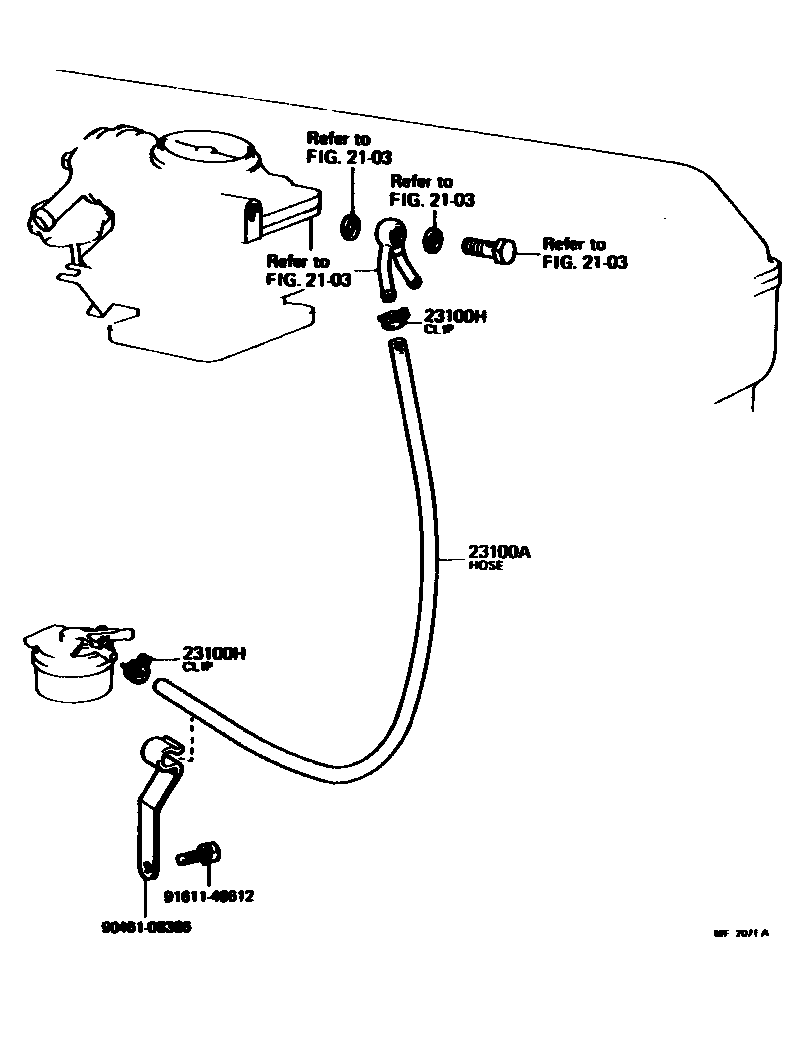

FUEL PIPE & CLAMP

0001 1 0002 1

2103

23100AHOSE, FUEL

main23271-35010i22R..RT135198008-198112

main90447-12009i20R..RT134197908-198008

L=650

main95332-06044i20R..RT134197809-197904

L=440

main95332-06060i20R..RT134197904-197908

*H,L=440

sub95333-06060

23100HCLIP(FOR FUEL HOSE)

main96132-30600i20R,22R..RT13#197809-198112

sub96132-51100

9046108386

main90461-08386

9161140612

main91611-40612

5 parts on this diagram · 2 diagrams in section
