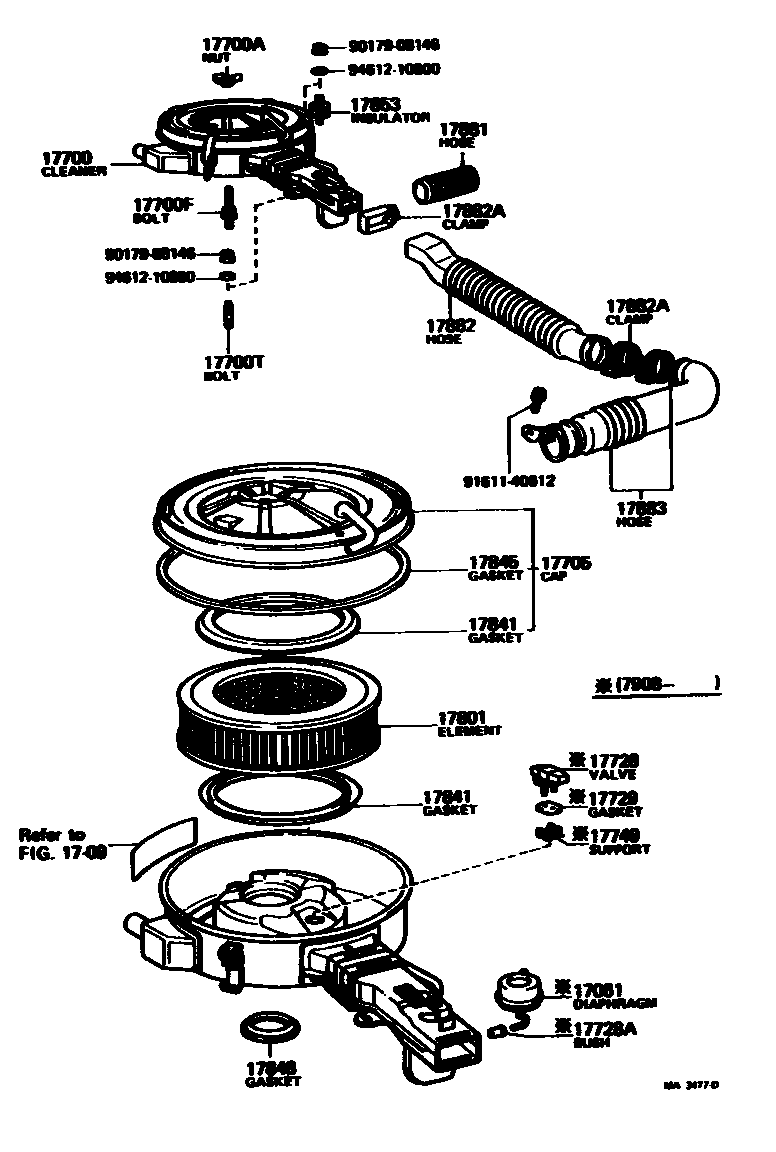

AIR CLEANER

0001 1 0002 1 0003 1

17061DIAPHRAGM SUB-ASSY

main17061-13010i20R..RT134197908-198008

main17061-37010i22R..RT135198008-198112

1709

17700CLEANER ASSY, AIR

main17700-35040i22R..RT135..5F..USA198008-198108

sub17700-35080

sub12262-35010

main17700-35050i22R..RT135..4FC..USA198008-198108

sub17700-35090

sub12262-35010

main17700-35060i22R..RT135..CND198008-198108

sub17700-35100

sub12262-35010

main17700-35080i22R..RT135..5F..USA198108-198112

main17700-35090i22R..RT135..4FC..USA198108-198112

sub17700-35120

main17700-35100i22R..RT135..CND198108-198112

main17700-38090i20R..RT134197809-197908

main17700-38091i20R..RT134197908-198008

sub17700-38110

17700ANUT, WING(FOR AIR CLEANER)

main90175-06003i20R,22R..RT13#197809-198112

17700FBOLT, STUD(FOR AIR CLEANER SETTING)

main90116-06020i22R..RT135198008-198112

L=62,S=12.5&25

main90116-06280i20R..RT134197809-198008

L=49,S=12&20

17700TBOLT, STUD(FOR AIR CLEANER)

main90116-08033i20R,22R..RT13#197809-198112

L=26,S=8&13.5

17705CAP SUB-ASSY, AIR CLEANER

main17705-35030i22R..RT135..USA198008-198108

sub17705-35060

sub12262-35010

main17705-35040i22R..RT135..CND198008-198108

sub17705-35070

sub12262-35010

main17705-35060i22R..RT135..USA198108-198112

main17705-35070i22R..RT135..CND198108-198112

main17705-38020i20R..RT134197809-197908

sub17705-38060

main17705-38060i20R..RT134197908-198008

17728VALVE, THERMOSTATIC

main17728-24010i20R,22R..RT13#197908-198112

sub17728-24011

17728ABUSH

main90386-03001i20R,22R..RT13#197908-198112

17729GASKET, THERMOSTAT VALVE

main17729-34010i20R,22R..RT13#197908-198112

17749SUPPORT, THERMOSTAT VALVE

main17749-34010i20R,22R..RT13#197908-198112

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41090i20R,22R..RT13#197809-198112

17841GASKET, FILTER ELEMENT

main17841-41050i20R,22R..RT13#197809-198112

17845GASKET, AIR CLEANER CAP

main17845-35010i22R..RT135198008-198112

sub17845-61011

main17845-38011i20R..RT134197809-198008

sub17845-42010

17848GASKET, AIR CLEANER TO CARBURETOR

main17848-35010i22R..RT135198008-198112

main90430-72003i20R..RT134197809-198008

17853INSULATOR, AIR CLEANER BRACKET

main17853-38010i20R,22R..RT13#197809-198112

17881HOSE, AIR CLEANER, NO.1

main17881-26010i20R..RT134197809-198008

sub17881-34040

main17881-37030i22R..RT135198008-198112

sub17881-35060

17882HOSE, AIR CLEANER, NO.2

main17882-38050i20R..RT134197809-198008

main17882-38051i22R..RT135198008-198112

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01003i20R..RT134197809-198008

AIR CLEANER SIDE

main90460-01015i22R..RT135198008-198112

FENDER SIDE

main90460-01016i22R..RT135198008-198112

AIR CLEANER SIDE

sub90460-01055

main90460-58004i20R..RT134197901-198008

FENDER SIDE

sub96111-10580

main90460-58013i20R..RT134197809-197901

FENDER SIDE

sub96111-10580

17883HOSE, AIR CLEANER, NO.3

main53299-20030i20R..RT134197809-198008

sub53299-20031

main53299-20040i22R..RT135198008-198112

9017908146

main90179-08146

9161140612

main91611-40612

9461210800

main94612-10800

23 parts on this diagram · 3 diagrams in section
