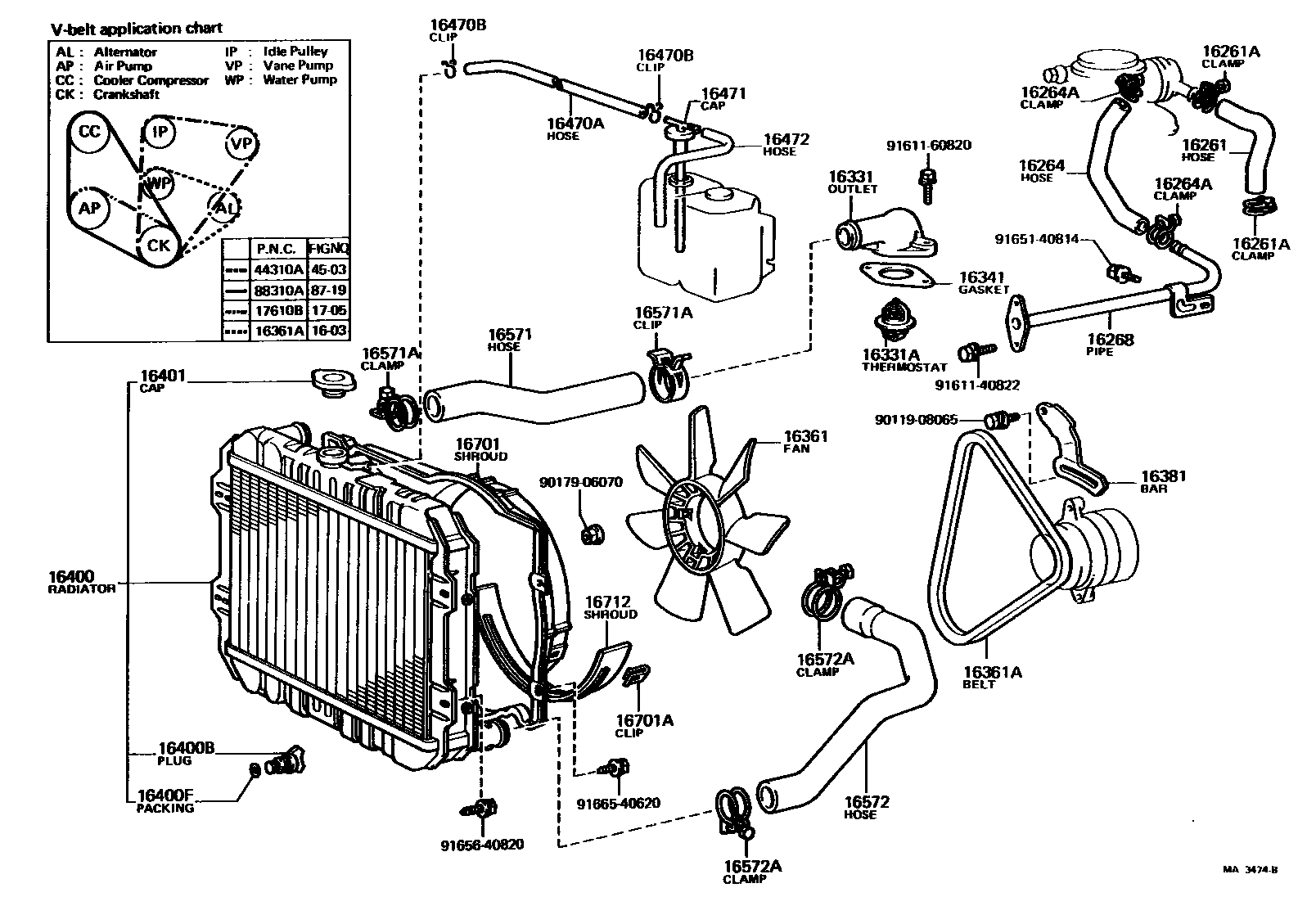

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1603

16261HOSE, WATER BY-PASS

main16261-35010i22R..RT135198008-198112

sub16261-35040

main16261-38010i20R..RT134197809-198008

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-25002i20R..RT134197809-197901

sub96112-10250

main90467-20004i22R..RT135198008-198010

sub90467-20005

main90467-20005i22R..RT135198010-198112

sub96134-41900

main96112-10250i20R..RT134197901-198008

16264HOSE, WATER BY-PASS, NO.2

main16264-38020i20R..RT134197809-197908

main16264-38030i20R..RT134197908-198008

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90460-25002i20R..RT134197809-197901

sub96112-10250

main96112-10250i20R..RT134197901-198008

16268PIPE, WATER BY-PASS, NO.1

main16268-35010i22R..RT135198008-198112

main16268-38010i20R..RT134197809-197908

main16268-38020i20R..RT134197908-198008

16331OUTLET, WATER

main16331-35020i22R..RT135198008-198112

main16331-38011i20R..RT134197809-197908

main16331-38012i20R..RT134197908-198008

16331ATHERMOSTAT

main90916-03034i20R..RT134..(3FC,3HC,5F)..USA197908-198008

*WAX 82-95,FUJI-THOMSON,*CAL

main90916-03034i20R..RT134..USA197809-197908

*WAX 82-95,FUJI-THOMSON

main90916-03036i20R,22R..RT13#197809-198112

*WAX 88-100,FUJI-THOMSON

sub90916-03040

16341GASKET, WATER OUTLET

main16341-38010i20R..RT134197809-198008

sub16341-38012

main16341-38020i22R..RT135198008-198112

sub16341-38021

16361FAN

main16361-38010i20R,22R..RT13#197809-198112

7 BLADES,OD=380

16361ABELT, V(FOR FAN & ALTERNATOR)

main99331-00880i20R..RT134197809-197908

L=880

main99331-10880i20R,22R..RT13#197908-198112

L=880

16381BAR, FAN BELT ADJUSTING

main16381-38020i20R,22R..RT13#197809-198112

16400RADIATOR ASSY

main16400-38120i20R,22R..RT13#..MTM197809-198112

sub16400-38130

main16400-38130i20R,22R..RT13#..ATM197902-198112

main16400-38140i20R..RT134..ATM197809-197902

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i20R,22R..RT13#197809-198112

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i20R,22R..RT13#197809-198110

sub96711-19007

main96711-19007i22R..RT135198110-198112

16401CAP SUB-ASSY, RADIATOR

main16401-36011i20R,22R..RT13#197809-198112

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12015i22R..RT135198008-198112

L=1300

main90445-12079i20R..RT134197809-198008

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i20R,22R..RT13#197809-198112

16471CAP SUB-ASSY, RESERVE TANK

main85037-20010i20R..RT134197809-197810

sub85339-14010

sub85338-20010

sub85338-20020

main85339-14010i20R,22R..RT13#197810-198112

16472HOSE, BREATHER

main85338-20020i20R,22R..RT13#197810-198112

16571HOSE, RADIATOR, INLET

main16571-35030i22R..RT135198108-198112

main16571-37010i20R,22R..RT13#197908-198108

sub16571-35030

main16571-38012i20R..RT134197809-197908

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i20R..RT134197809-198008

ID=37,OUTLET SIDE

sub90467-37003

main90467-37001i22R..RT135198008-198112

ID=37

sub90467-37003

main96111-10430i20R..RT134197809-198008

ID=43,RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16572-38070i20R,22R..RT13#197809-198112

sub16572-35080

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96111-10460i20R,22R..RT13#197809-198112

ID=46,RADIATOR SIDE

main96111-10480i20R,22R..RT13#197809-198108

ID=48,PUMP SIDE

main96111-10490i22R..RT135198108-198112

ID=49,PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16711-38050i20R,22R..RT13#197809-198112

16701ACLIP(FOR FAN SHROUD)

main90468-06001i20R..RT134197809-197905

W/COOLER

sub90468-06013

main90468-06013i20R,22R..RT13#197905-198112

W/COOLER

16712SHROUD, FAN, NO.2

main16712-38010i20R,22R..RT13#197809-198112

W/COOLER

1705

17610BBELT, V(FOR AIR PUMP)

main99332-00865i20R..RT134197809-197908

L=865

sub99332-10865

main99332-10820i22R..RT135..USA198008-198112

L=820

main99332-10830i20R..RT134197908-198008

L=830

44310ABELT, V(FOR VANE PUMP)

main99332-11135iRT13#..3FC,3HC,4FC,5F197908-198112

main99332-51135iRT134197809-197908

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-01140iRT134197809-197908

L=1140

main99332-10890iRT135..CND198008-198112

L=890

main99332-11110iRT134197908-198112

L=1140

9011908065

main90119-08065

9017906070

main90179-06070

9161140822

main91611-40822

9161160820

main91611-60820

9165140814

main91651-40814

9165640820

main91656-40820

9166540620

main91665-40620

40 parts on this diagram · 3 diagrams in section
