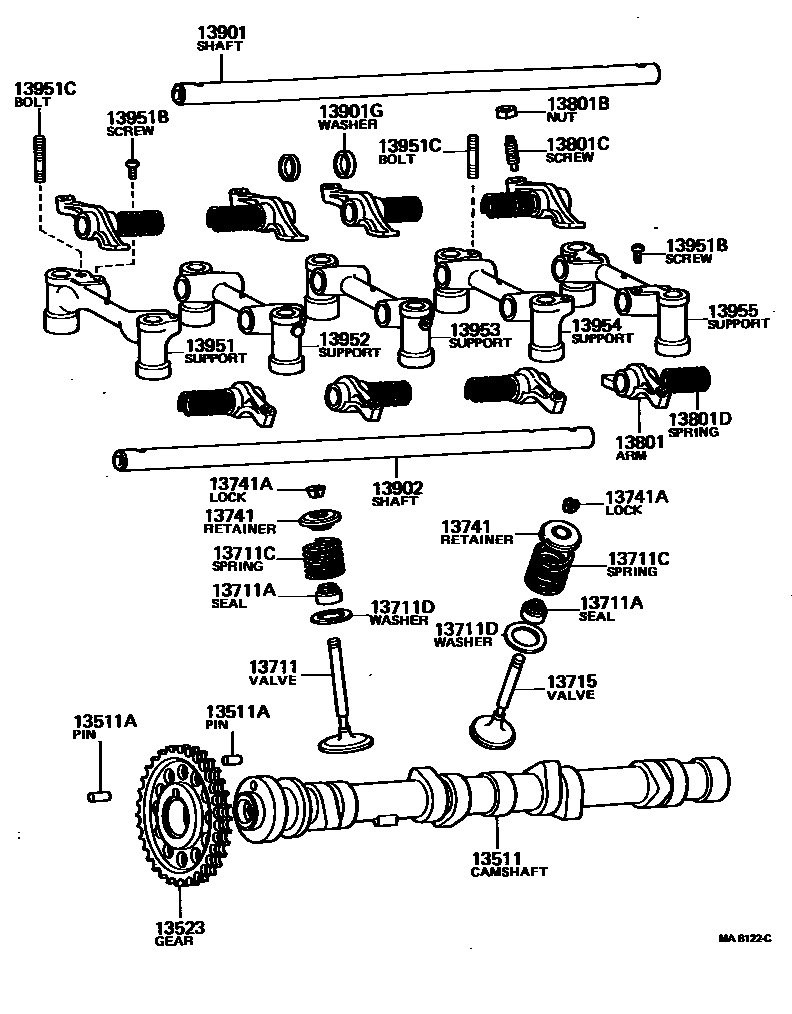

CAMSHAFT & VALVE

13511CAMSHAFT

main13511-35010i22R..RT135198008-198112

main13511-38011i20R..RT134197809-198008

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-06001i20R,22R..RT13#197809-198112

L=14,OD=6,L=14,OD=6

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-38011i20R,22R..RT13#197809-198112

N=36

13711VALVE, INTAKE

main13711-35010i22R..RT135198008-198112

sub13711-35051

main13711-38010i20R..RT134197809-198008

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02023i20R,22R..RT13#197809-198112

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-47001i20R,22R..RT13#197809-198112

WD=4.7,CW=6.0

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-20579i20R,22R..RT13#197809-198112

13715VALVE, EXHAUST

main13715-35020i22R..RT135198008-198112

main13715-38050i20R..RT134197809-198008

13741RETAINER, VALVE SPRING

main13741-38010i20R,22R..RT13#197809-198112

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i20R,22R..RT13#197809-198112

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-35010i22R..RT135198110-198112

main13811-38010i20R,22R..RT13#197809-198110

sub13801-35010

sub90179-08049

sub90913-05019

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08210i20R,22R..RT13#197809-198108

sub90170-08005

main90179-08049i22R..RT135198108-198112

13801CSCREW, VALVE ADJUSTING

main90913-05016i20R,22R..RT13#197809-198102

sub90913-05019

main90913-05019i22R..RT135198102-198112

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-12008i20R,22R..RT13#197809-198112

WD=1.4,CW=8.5

sub90501-14064

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13911-38010i20R..RT134197809-197811

sub13911-38011

main13911-38011i20R,22R..RT13#197811-198112

sub13911-35010

13901GWASHER, ROCKER SHAFT

main90560-16448i20R,22R..RT13#197809-198112

sub90561-16005

13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2

main13912-38011i20R,22R..RT13#197809-198112

sub13912-35010

13951SUPPORT, VALVE ROCKER, NO.1

main13951-38011i20R..RT134197809-197910

sub13951-38012

sub90116-08089

main13951-38012i20R,22R..RT13#197910-198112

sub13951-35010

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main93210-16008i20R,22R..RT13#197809-198112

sub93210-56008

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main90116-08030i20R..RT134197809-197910

L=56,S=11&33

sub90116-08089

main90116-08089i20R,22R..RT13#197910-198112

L=58,S=9&32

13952SUPPORT, VALVE ROCKER, NO.2

main13952-38010i20R,22R..RT13#197809-198112

13953SUPPORT, VALVE ROCKER, NO.3

main13953-38010i20R,22R..RT13#197809-198112

13954SUPPORT, VALVE ROCKER, NO.4

main13954-38010i20R..RT134197809-197910

sub13954-38011

sub90116-08089

main13954-38011i20R,22R..RT13#197910-198112

13955SUPPORT, VALVE ROCKER, NO.5

main13955-38010i20R,22R..RT13#197809-198112

24 parts on this diagram · 1 diagram in section
