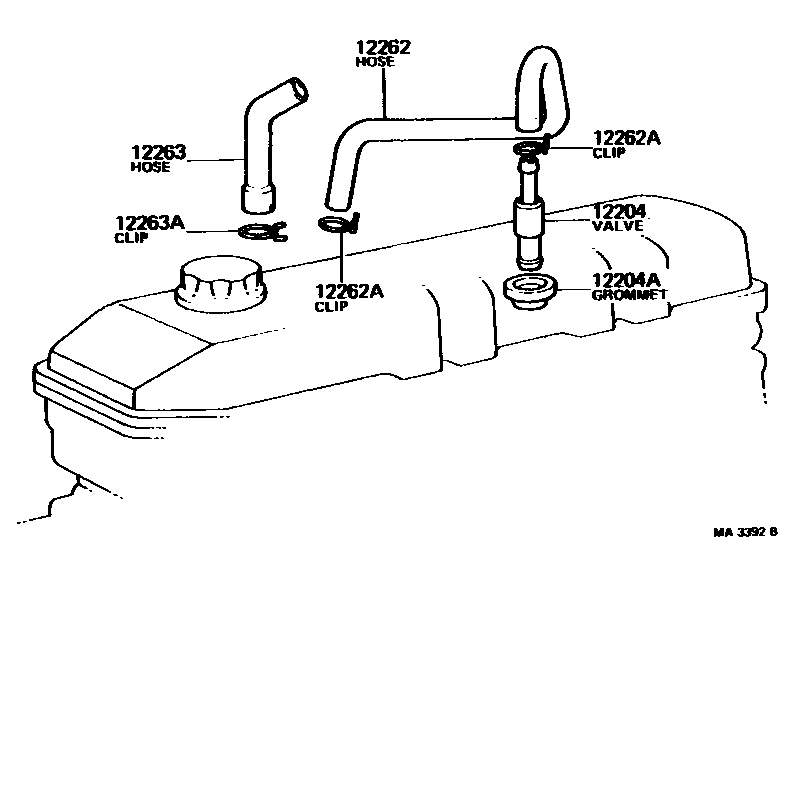

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-31020i20R..RT134197809-197908

main12204-35010i22R..RT135198008-198112

main12204-45010i20R..RT134197908-198008

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18180i20R,22R..RT13#197809-198112

12262HOSE, VENTILATION, NO.2

main12261-38011i20R,22R..RT13#197809-198112

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16010i20R,22R..RT13#197809-198112

12263HOSE, VENTILATION, NO.3

main12262-35010i22R..RT135198108-198112

main12262-38010i20R,22R..RT13#197809-198108

12263ACLIP(FOR VENTILATION HOSE)

main90467-20020i20R,22R..RT13#197809-198112

6 parts on this diagram · 1 diagram in section
