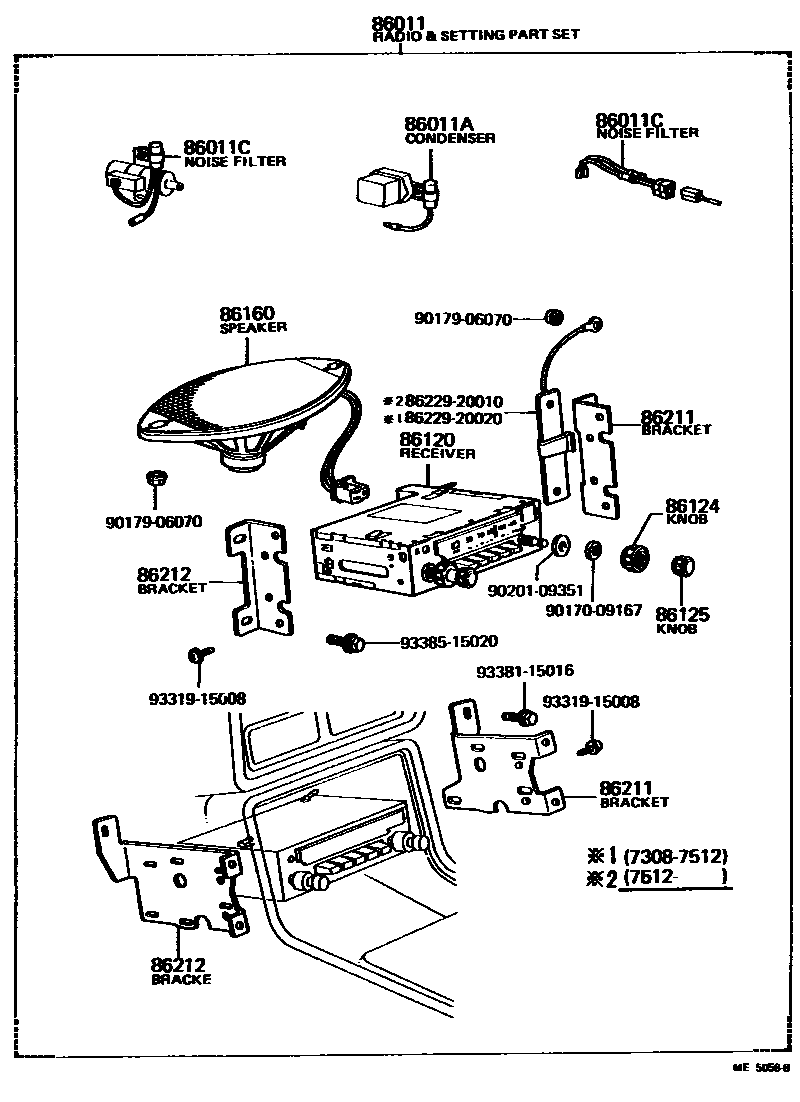

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86011RADIO & SETTING PARTS SET

main86011-29055iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

AM,5-BUTTON

main86011-29056iRT119..3HC;RT105..3FC..4D197509-197701

AM,5-BUTTON

main86011-29065iRT118..4F;RT104..3FC..STD197308-197509

AM/FM,5-BUTTON

main86011-29066iRT119..3HC;RT105..3FC..4D197509-197701

AM/FM,5-BUTTON

main86011-29075iRT105..3FC..4D197408-197509

AM/FM,MULTIPLEX

main86011-29076iRT119..3HC;RT105..3FC..4D197509-197701

AM/FM,MULTIPLEX TYPE

86011ACONDENSER, RADIO SETTING

main90980-04011iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD¥460197308-197808

PLUG CONNECTOR

86011CFILTER, NOISE

main90980-05010iRT104,11#¥5,700197308-197408

;U; & PLUG CONNECTOR

main90980-05011iRT119..3HC197408-197808

AM/FM

main90980-05020iRT119..3HC;RT105..3FC..4D197408-197701

PLUG CONNECTOR

main90980-05021iRT105..3FC..4D¥2,730197408-197506

;U; & PLUG CONNECTOR

sub90980-05010¥5,700

main90980-05029iRT119..3HC¥2,240197701-197808

86120RECEIVER ASSY, RADIO

main86120-20130iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

AM,5-BUTTON

main86120-20150iRT118..4F;RT104..3FC..STD¥57,600197308-197605

AM/FM,5-BUTTON

sub86120-20151

main86120-20151iRT119..3HC197605-197701

AM/FM,5-BUTTON

main86120-20190iRT105..3FC..4D197408-197605

AM/FM,MULTIPLEX

sub86120-20191

main86120-20191iRT119..3HC197605-197701

AM/FM,MULTIPLEX

86124KNOB, RADIO RECEIVER CONTROL

main86124-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD¥260197308-197701

main86124-20050iRT119..3HC;RT105..3FC..4D¥430197408-197701

BALANCE,MULTIPLEX TYPE

main86124-22030iRT119..3HC197701-197808

sub86124-22031

main86124-22040iRT119..3HC197708-197808

BALANCE,MULTIPLEX TYPE

86125KNOB, RADIO RECEIVER SWITCH

main86125-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD¥370197308-197701

main86125-22020iRT119..3HC197701-197808

86160SPEAKER ASSY, FRONT NO.1

main86160-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD¥1,500197308-197701

sub86160-14070

main86160-20060iRT119..3HC¥1,750197701-197708

FRONT

sub86160-20061

main86160-20061iRT119..3HC197708-197808

FRONT

sub86160-95012

main86160-22031iRT119..3HC197708-197808

REAR

86211BRACKET, RADIO, NO.1

main86211-20040iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

CONSOLE

main86211-20041iRT119..3HC;RT105..3FC..4D197509-197701

CONSOLE

main86211-20050iRT119..3HC;RT105..3FC..4D197308-197701

INPANE

main86211-20052iRT119..3HC197701-197808

86212BRACKET, RADIO, NO.2

main86212-20030iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

CONSOLE

main86212-20031iRT119..3HC;RT105..3FC..4D197509-197701

CONSOLE

main86212-20040iRT118..4F;RT104..3FC..STD197308-197701

INPANE

main86212-20042iRT119..3HC197701-197808

8622920010BRACKET, STEREO SPEAKER, LH

main86229-20010

8622920020BRACKET, STEREO SPEAKER, LH

main86229-20020

9017009167

main90170-09167¥160

9017906070

main90179-06070¥180

9020109351

main90201-09351¥120

9331915008

main93319-15008¥170

9338115016

main93381-15016¥100

9338515020

main93385-15020¥170

17 parts on this diagram · 3 diagrams in section
