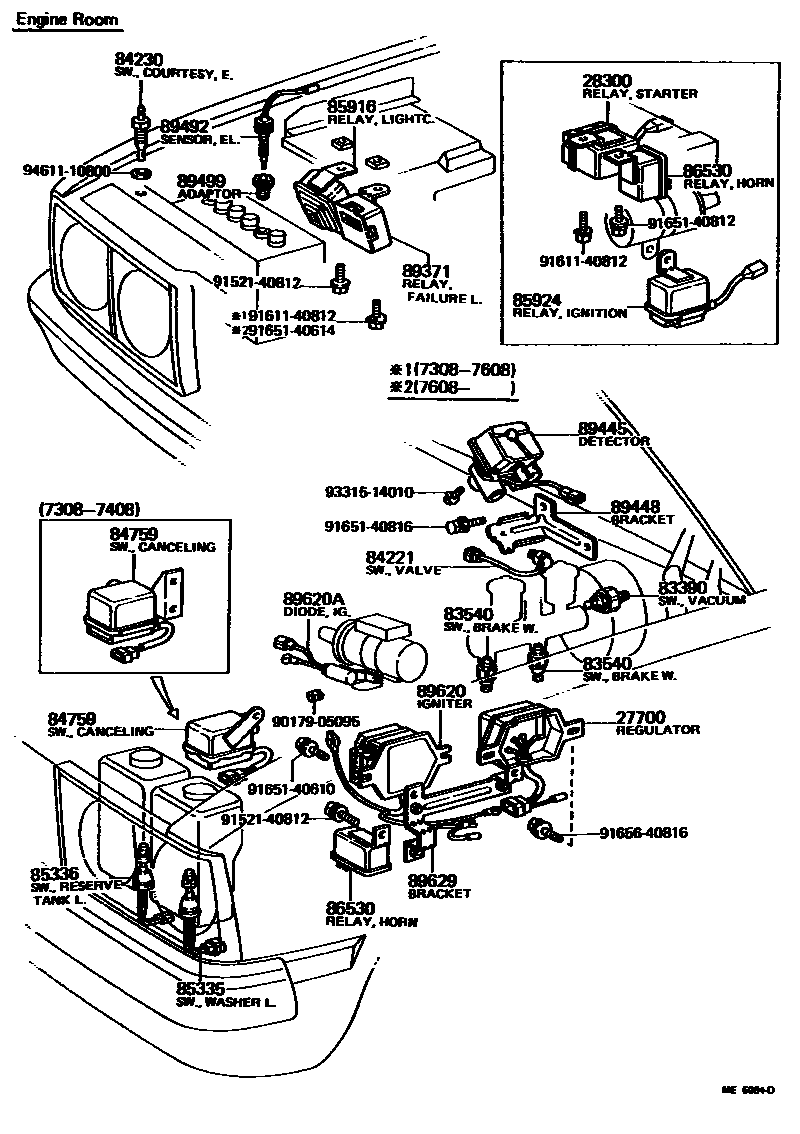

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

27700REGULATOR ASSY, GENERATOR

main27700-26020i20R..RT105..3FC..4D197506-197509

ARCTIC(W/GREASE)

main27700-36010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

sub27700-36020

main27700-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main27700-38050i20R..RT119..3HC197608-197707

sub27700-38060

main27700-38060i20R..RT119..3HC197707-197808

sub27700-26030

main27700-45020i20R..RT119..3HC197708-197807

FOR BUILT IN ALTERNATOR

sub27700-45021

main27700-45021i20R..RT119..3HC197807-197808

FOR BUILT IN ALTERNATOR

sub27700-28030

28300RELAY ASSY, STARTER

main28300-20010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main28300-20011i20R..RT105..3FC..4D197408-197502

USA SPEC.

main28300-20040i20R..RT105..3FC..4D197408-197502

CALIFORNIA SPEC.

83390SWITCH ASSY, VACUUM WARNING

main83390-22010iRT118..4F;RT104..3FC..STD197308-197408

sub83390-22011

main83390-22011iRT105..3FC..4D197408-197701

sub83390-22012

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

84221SWITCH ASSY, DIFFERENTIAL VALVE

main84220-20031iRT119..3HC;RT105..3FC..4D197512-197608

84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)

main84231-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197506

sub84230-12080

84759SWITCH ASSY, INTERLOCK CANCELING

main84759-20010iRT118..4F;RT104..3FC..STD197308-197408

USA SPEC.

main84759-20011iRT105..3FC..4D197408-197411

USA SPEC.

85335SWITCH ASSY, WASHER LEVEL WARNING

main85335-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

85336SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85335-20020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

sub85335-20040

85916RELAY, LIGHT CONTROL

main85919-20020iRT118..4F;RT104..3FC..STD197308-197408

sub85919-20021

main85919-20030iRT119..3HC;RT105..3FC..4D197408-197609

sub85919-20031

main85919-20031iRT119..3HC197609-197701

main90987-01001iRT119..3HC197701-197808

sub90999-99088

85924RELAY, IGNITION CONTROL

main85924-12010iRT118..4F;RT104..3FC..STD197401-197408

2 POINT DISTRIBUTOR

86530RELAY ASSY, HORN

main86530-20060iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

89371RELAY, LAMP FAILURE INDICATOR

main89371-20020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

HEADLAMP

main89371-20040iRT119..3HC;RT105..3FC..4D197308-197701

TAIL LAMP & STOP LAMP

89445DETECTOR, MAINTENANCE INTERVAL

main89445-20020iRT105..3FC..4D197408-197509

main89445-22010iRT105..3FC..4D197408-197509

89448BRACKET, MAINTENANCE INTERVAL DETECTOR

main89448-20010iRT105..3FC..4D197408-197509

89492SENSOR, ELECTROLYTE LEVEL

main89492-20030iRT118..4F;RT104..3FC..STD197308-197408

sub89492-36030

main89492-20040iRT105..3FC..4D197408-197701

89499ADAPTER, ELECTROLYTE LEVEL SENSOR

main89499-20010iRT105..3FC..4D197408-197701

89620IGNITER ASSY

main89620-14120iRT119..3HC197708-197808

sub89620-14121

main89620-14130iRT119..3HC197708-197808

USA(ARCTIC & HIGH ALTITUDE)

sub89620-14131

main89620-20010iRT105..3FC..4D197408-197509

sub89620-35H90

main89620-20020iRT105..3FC..4D197509-197605

sub89620-35H91

main89620-20021iRT119..3HC197605-197701

main89620-20022iRT119..3HC197701-197708

main89620-20070iRT119..3HC;RT105..3FC..4D197511-197608

ARCTIC

sub89620-35H91

main89620-20071iRT119..3HC197608-197701

ARCTIC

main89620-20072iRT119..3HC197701-197708

ARCTIC

main89620-20100iRT119..3HC197708-197808

CANADA

sub89620-20101

89620ADIODE, IGNITION COIL

main90919-14001iRT119..3HC;RT105..3FC..4D197509-197608

CALIFORNIA SPEC.

sub90919-14005

main90919-14005iRT119..3HC197608-197808

CAL. & HIGH ALTITUDE SPEC.

89629BRACKET, IGNITER ASSY

main89629-20020iRT105..3FC..4D197408-197509

9017905095

main90179-05095

9152140812

main91521-40812

9161140812

main91611-40812

9165140610

main91651-40610

9165140614

main91651-40614

9165140812

main91651-40812

9165140816

main91651-40816

9165640816

main91656-40816

9331514010

main93315-14010

9461110800

main94611-10800

30 parts on this diagram · 9 diagrams in section
