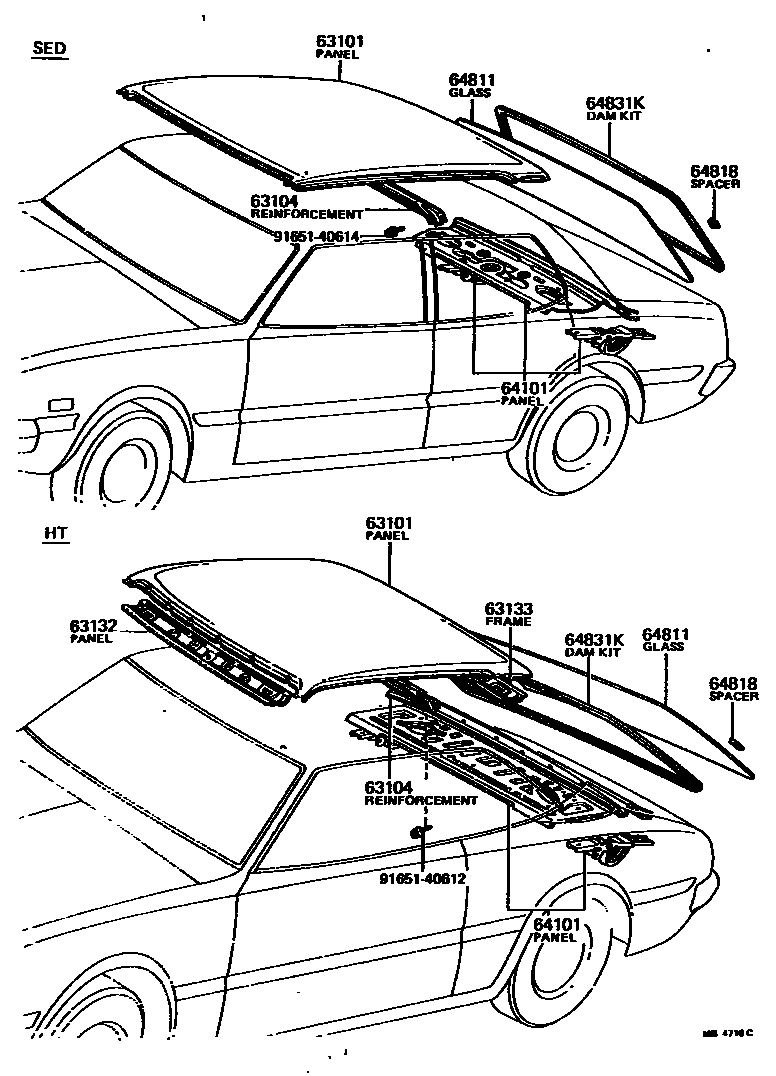

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63101-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub63111-20080

sub63132-20060

sub63133-20060

sub63145-20030

main63101-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub63111-21010

sub63132-20060

sub63145-20030

main63111-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63143-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main63143-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

63132PANEL, WINDSHIELD HEADER, INNER

main63132-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

63133FRAME, BACK WINDOW OPENING, UPPER

main63133-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

64101PANEL SUB-ASSY, UPPER BACK

main64101-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main64101-20090iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197603

sub64101-20100

main64101-20100iRT119..3HC;RT105..3FC..4D197603-197712

sub64101-20101

sub64531-20061

sub64532-20061

main64101-20101iRT119..3HC197712-197808

64811GLASS, BACK WINDOW

main64811-20170iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

sub64811-20260

main64811-20200iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

sub64811-20290

main64811-20220iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197504

TP.T=5.0

sub64811-20300

main64811-20240iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

ELECT.TP.T=4.0

sub64811-20250

main64811-20250iRT119..3HC197308-197808

ELECT.TN.TP.T=4.0

main64811-20260iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

ELECT.TN.TP.T=4.0

main64811-20280iRT119..3HC;RT105..3FC..4D197503-197808

ELECT.TP.T=4.0,ARCTIC

sub64811-20290

main64811-20290iRT119..3HC;RT105..3FC..4D197503-197808

ELECT.TN.TP.T=4.0,ARCTIC

main64811-20300iRT119..3HC;RT105..3FC..4D197504-197808

TP.T=4.0

sub64811-20200

main64811-95502iRT119..3HC;RT105..3FC..4D197503-197808

ELECT.TN.TP.T=4.0,ARCTIC

64818SPACER, BACK WINDOW GLASS

main56116-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main56116-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

64831KDAM KIT, BACK WINDOW GLASS

main04562-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197709

main04562-30020iRT119..3HC197709-197808

sub04562-30030

9165140612

main91651-40612

9165140614

main91651-40614

10 parts on this diagram · 2 diagrams in section
