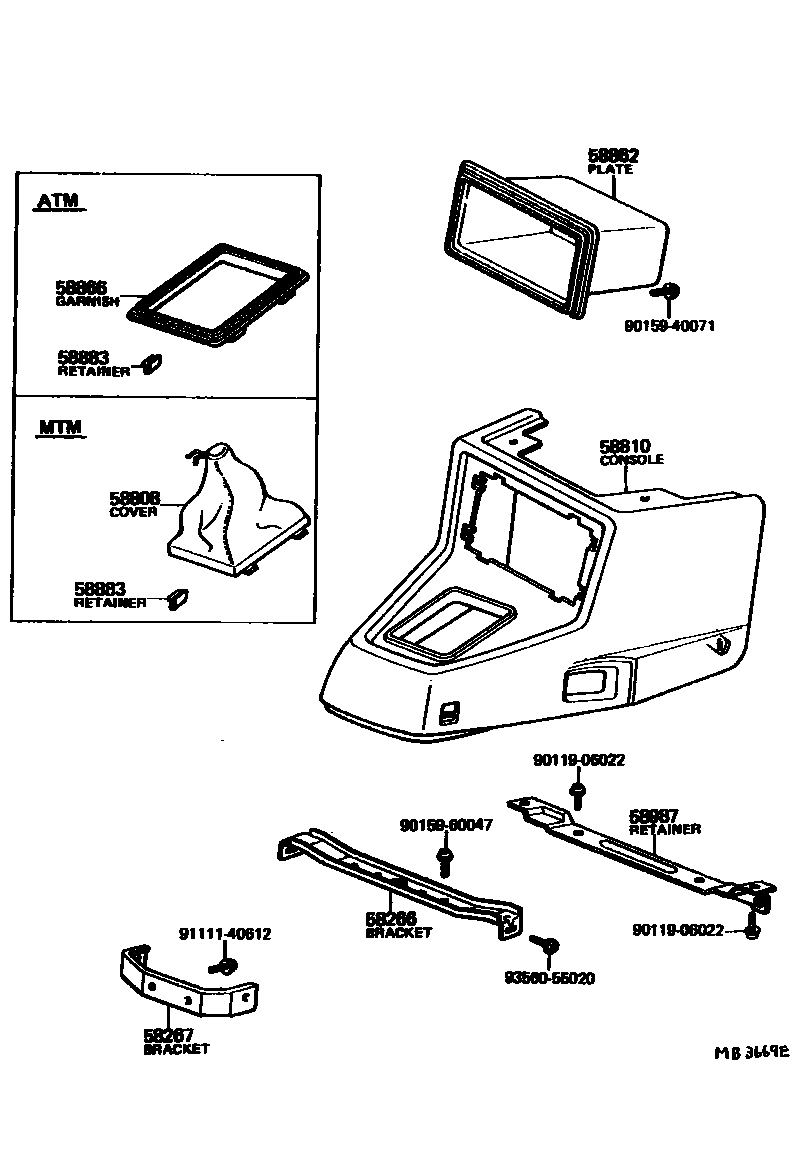

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58851-20010iRT118..4F;RT104..3FC..STD197308-197604

main58851-20011iRT119..3HC197604-197808

58267BRACKET, CONSOLE BOX SUPPORT, CENTER

main58859-20010iRT118..4F;RT104..3FC..STD197308-197408

main58859-20010iRT105..3FC..4D197408-197701

FOR SEMI CONSOLE

main58859-20011iRT119..3HC197701-197808

FOR SEMI CONSOLE

main58859-20020iRT119..3HC;RT105..3FC..4D197308-197608

FOR FULL CONSOLE

main58859-20020iRT119..3HC197608-197701

FOR FULL CONSOLE;SR-5,FOR FULL CONSOLE

main58859-20021iRT119..3HC197701-197808

FOR FULL CONSOLE

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20030iRT118..4F;RT104..3FC..STD197308-197701

main58808-20030-01iRT119..3HC197701-197808

BLACK,BLACK

sub58808-20030

main58808-20030-05iRT119..3HC197701-197808

BEIGE,BEIGE

sub58808-20030

58810CONSOLE ASSY

main58801-20020-01iRT105..3FC..4D197308-197501

FULL CONSOLE,BLACK,BLACK

main58801-20020-03iRT118..4F;RT104..3FC..STD197308-197408

FULL CONSOLE,GRAY,GRAY

main58801-20020-06iRT118..4F;RT104..3FC..STD197308-197501

FULL CONSOLE,OLIVE-BROWN,BROWN

main58801-20060-01iRT119..3HC197503-197808

SEMI CONSOLE,FULL DUCT,BLACK,BLACK

sub58801-20060

main58801-20060-03iRT119..3HC197701-197808

SEMI CONSOLE,FULL DUCT,GRAY,GRAY

sub58801-20060

main58801-20060-05iRT119..3HC197701-197808

SEMI CONSOLE,FULL DUCT,BEIGE,BEIGE

sub58801-20060

main58801-20060-06iRT105..3FC..4D197503-197701

SEMI CONSOLE,FULL DUCT,BROWN,BROWN

sub58801-20060

main58811-20060-01iRT119..3HC;RT105..3FC..4D197308-197808

SEMI CONSOLE,BLACK,BLACK

sub58811-20060

main58811-20060-03iRT118..4F;RT104..3FC..STD197308-197408

SEMI CONSOLE,GRAY,GRAY

sub58811-20060

main58811-20060-05iRT119..3HC197701-197808

SEMI CONSOLE,BEIGE,BEIGE

sub58811-20060

main58811-20060-06iRT119..3HC197506-197701

SEMI CONSOLE,BROWN,BROWN

sub58811-20060

main58811-20060-06iRT105..3FC..4D197308-197506

SEMI CONSOLE,OLIVE-BROWN,BROWN

sub58811-20060

main58811-20060-13iRT119..3HC197701-197808

SEMI CONSOLE,GRAY,GRAY

sub58811-20060

main58811-21010-01iRT119..3HC197701-197808

FULL CONSOLE,BLACK,BLACK

sub58811-21010

main58811-21010-03iRT119..3HC197701-197808

FULL CONSOLE,GRAY,GRAY

sub58811-21010

main58811-21010-05iRT119..3HC197701-197808

FULL CONSOLE,BEIGE,BEIGE

sub58811-21010

main58811-95500-01iRT105..3FC..4D197501-197512

FULL CONSOLE,BLACK,BLACK

sub58811-95501

main58811-95500-06iRT105..3FC..4D197501-197512

FULL CONSOLE,OLIVE-BROWN,BROWN

sub58811-95501

main58811-95501-01iRT119..3HC197608-197701

SR-5,FULL CONSOLE,BLACK,BLACK

main58811-95501-01iRT119..3HC;RT105..3FC..4D197512-197701

FULL CONSOLE,BLACK,BLACK

main58811-95501-06iRT119..3HC;RT105..3FC..4D197512-197701

FULL CONSOLE,OLIVE-BROWN,BROWN

main58811-95501-06iRT119..3HC197608-197701

SR-5,FULL CONSOLE,OLIVE-BROWN,BROWN

58862PLATE, CONSOLE FINISH

main58862-20080iRT118..4F;RT104..3FC..STD197308-197808

FOR L/RADIO

main58862-20100iRT119..3HC;RT105..3FC..4D197308-197701

FOR W/RADIO

58866GARNISH, SHIFTING HOLE

main58866-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

sub58866-20021

main58866-20021iRT119..3HC197701-197808

58883RETAINER, SHIFTING HOLE COVER

main58883-22010iRT118..4F;RT104..3FC..STD197308-197808

58987RETAINER, CONSOLE BOX STEREO, NO.1

main58084-20020iRT119..3HC;RT105..3FC..4D197308-197701

FOR W/RADIO

main58987-20020iRT119..3HC;RT105..3FC..4D197408-197612

FOR L/RADIO

main58987-20020iRT118..4F;RT104..3FC..STD197308-197408

main58987-20021iRT119..3HC197612-197808

FOR L/RADIO

9011906022

main90119-06022

9015940071

main90159-40071

9015960047

main90159-60047

9111140612

main91111-40612

9356055020

main93560-55020

13 parts on this diagram · 3 diagrams in section
