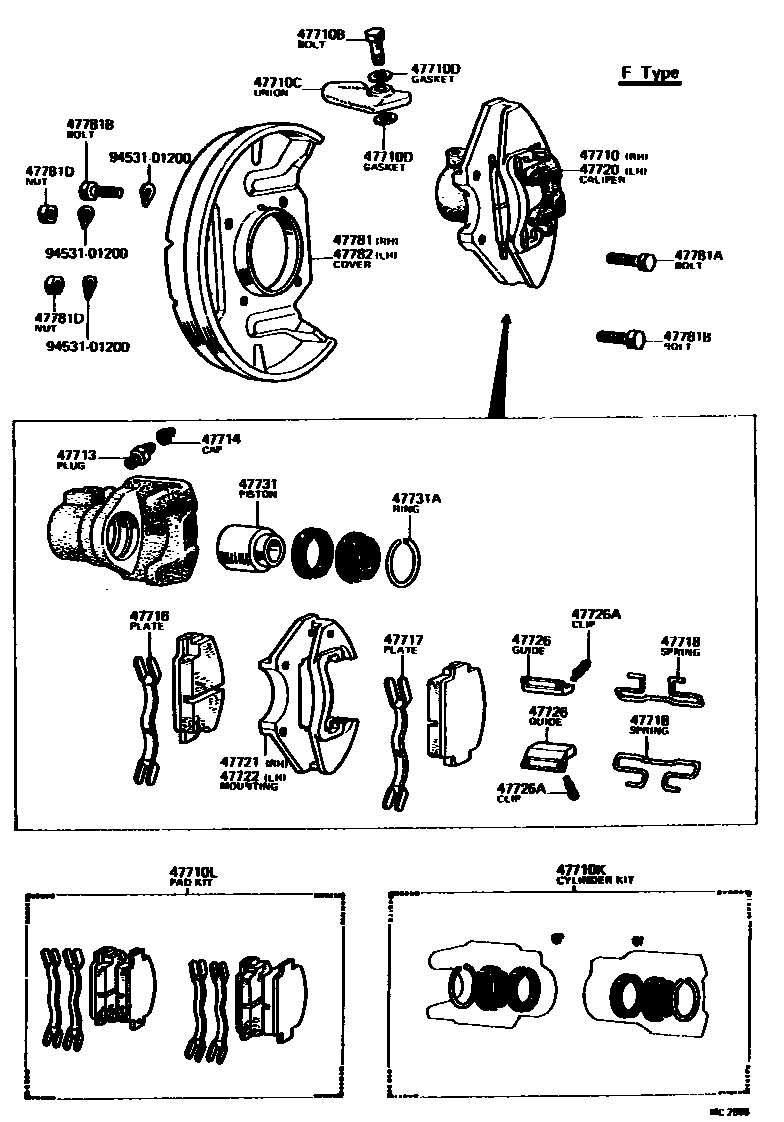

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0004 1 0005 1

47710CALIPER ASSY, DISC BRAKE, FRONT, RH

main47710-20070iRT118..4F;RT104..3FC..STD197311-197408

sub47730-20040

main47710-20090iRT118..4F;RT104..3FC..STD197308-197312

main47710-20091iRT118..4F;RT104..3FC..STD197312-197501

main47710-20100iRT118..4F;RT104..3FC..STD197308-197312

main47710-20110iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197312-197501

47710BBOLT, UNION(FOR FRONT DISC BRAKE CALIPER)

main90401-10092iRT118..4F;RT104..3FC..STD197311-197312

main90401-10098iRT118..4F;RT104..3FC..STD197312-197408

47710CUNION(FOR FRONT DISC BRAKE CALIPER)

main90404-10292iRT118..4F;RT104..3FC..STD197311-197312

RH.

sub90999-99022

main90404-10293iRT118..4F;RT104..3FC..STD197311-197312

LH.

sub90999-99023

main90999-99022iRT118..4F;RT104..3FC..STD197312-197408

RH.

main90999-99023iRT118..4F;RT104..3FC..STD197312-197408

LH.

47710DGASKET(FOR FRONT DISC BRAKE CALIPER UNION)

main90430-10074iRT118..4F;RT104..3FC..STD197311-197408

47710KCYLINDER KIT, DISC BRAKE, FRONT

main04479-14010iRT118..4F;RT104..3FC..STD197405-197408

main04479-20041iRT118..4F;RT104..3FC..STD197311-197405

sub04479-14010

main04479-30021iRT119..3HC;RT105..3FC..4D197308-197808

sub04479-30022

47710LPAD KIT, DISC BRAKE, FRONT

main04491-20050iRT118..4F;RT104..3FC..STD197311-197408

sub04491-20051

main04491-20080iRT118..4F;RT104..3FC..STD197308-197312

sub04491-22100

main04491-20090iRT104,118..DLX197308-197312

sub04491-30060

main04491-20100iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197312-197701

FOR E.S.P.

sub04465-20350

main04491-22070iRT115..3FC,4F197312-197808

sub04491-22071

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iRT118..4F;RT104..3FC..STD197311-197408

main47547-20030iRT119..3HC;RT105..3FC..4D197308-197808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14010iRT118..4F;RT104..3FC..STD197311-197408

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-14010iRT118..4F;RT104..3FC..STD197311-197408

47718SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-14010iRT118..4F;RT104..3FC..STD197311-197408

47720CALIPER ASSY, DISC BRAKE, FRONT, LH

main47720-20070iRT118..4F;RT104..3FC..STD197311-197408

sub47750-20030

main47720-20090iRT118..4F;RT104..3FC..STD197308-197312

sub47750-20050

main47720-20091iRT105..3FC..4D197312-197501

main47720-20100iRT118..4F;RT104..3FC..STD197308-197312

main47720-20110iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197312-197501

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20020iRT118..4F;RT104..3FC..STD197311-197408

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20020iRT118..4F;RT104..3FC..STD197311-197408

47726GUIDE, FRONT DISC BRAKE CYLINDER

main47726-14010iRT118..4F;RT104..3FC..STD197311-197408

47726ACLIP(FOR FRONT DISC BRAKE CYLINDER)

main90468-12017iRT118..4F;RT104..3FC..STD197311-197405

sub90468-12134

main90468-12134iRT118..4F;RT104..3FC..STD197405-197408

47731PISTON, FRONT DISC BRAKE

main47731-20030iRT118..4F;RT104..3FC..STD197311-197408

main47731-20040iRT118..4F;RT104..3FC..STD197308-197808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-54038iRT118..4F;RT104..3FC..STD197311-197408

sub90522-58001

main90522-58026iRT118..4F;RT104..3FC..STD197308-197808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20040iRT118..4F;RT104..3FC..STD197308-197808

main47781-20050iRT118..4F;RT104..3FC..STD197311-197408

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-12019iRT119..3HC197701-197808

main91161-71250iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

47781BBOLT(FOR DUST COVER SETTING)

main90101-12018iRT119..3HC197701-197808

sub90119-12068

main90109-12085iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

FOR E.S.P.

main91161-71230iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

FOR E.S.P.

sub91162-81230

main91161-71230iRT119..3HC;RT105..3FC..4D197509-197701

sub91162-81230

47781DNUT(FOR DUST COVER SETTING)

main94115-51200iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20040iRT118..4F;RT104..3FC..STD197308-197808

main47782-20050iRT118..4F;RT104..3FC..STD197311-197408

9453101200

main94531-01200
