STEERING WHEEL

0001 1 0003 1

45027PLATE SUB-ASSY, HORN BUTTON

main45027-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197808

main45027-20020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

FOR SOFT PAD WHEEL

main45027-20020iRT119..3HC197701-197808

LUXURY EDITION;FOR SOFT PAD WHEEL

45100WHEEL ASSY, STEERING

main45100-20130iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197501

sub45102-20120

main45100-20150iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197501

SOFT PAD TYPE

sub45102-20130

45102WHEEL SUB-ASSY, STEERING

main45102-20120iRT105..3FC..4D197501-197509

sub45102-20121

main45102-20121iRT119..3HC197509-197701

main45102-20121-01iRT119..3HC197701-197808

BLACK,BLACK

sub45102-20121

main45102-20121-05iRT119..3HC197701-197808

BEIGE,BEIGE

sub45102-20121

main45102-20130iRT105..3FC..4D197501-197701

SOFT PAD WHEEL

main45102-20130-01iRT119..3HC197701-197808

LUXURY EDITION,BLACK;SOFT PAD WHEEL,BLACK,BLACK

sub45102-20130

main45102-20130-05iRT119..3HC197701-197808

LUXURY EDITION,BEIGE;SOFT PAD WHEEL,BEIGE,BEIGE

sub45102-20130

45125MARK, STEERING WHEEL PAD

main45125-20050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197808

main45125-20060iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

FOR SOFT PAD WHEEL

sub45125-20061

main45125-20061iRT119..3HC197701-197808

LUXURY EDITION;FOR SOFT PAD WHEEL

45129BUTTON, HORN, NO.2

main45129-20030iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197808

main45131-20090iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

FOR SOFT PAD WHEEL

main45131-20090iRT119..3HC197701-197808

LUXURY EDITION;FOR SOFT PAD WHEEL

45130BUTTON ASSY, HORN

main45130-20090iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

sub45130-20100

main45130-20100-01iRT119..3HC197701-197808

BLACK,BLACK

sub45130-20100

main45130-20100-03iRT119..3HC197701-197808

GRAY,GRAY

sub45130-20100

main45130-20100-05iRT119..3HC197701-197808

BEIGE,BEIGE

sub45130-20100

main45130-20110iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197701

FOR SOFT PAD WHEEL

main45130-20110-01iRT119..3HC197701-197808

FOR SOFT PAD WHEEL,BLACK;LUXURY EDITION,BLACK,BLACK

sub45130-20110

main45130-20110-03iRT119..3HC197701-197808

FOR SOFT PAD WHEEL,GRAY;LUXURY EDITION,GRAY,GRAY

sub45130-20110

main45130-20110-05iRT119..3HC197701-197808

LUXURY EDITION,BEIGE;FOR SOFT PAD WHEEL BEIGE,BEIGE

sub45130-20110

45131BUTTON, HORN, NO.1

main45129-20030iRT119..3HC;RT105..3FC..4D197308-197808

main45131-20090iRT119..3HC;RT105..3FC..4D197308-197701

FOR SOFT PAD WHEEL

main45131-20090iRT119..3HC197701-197808

LUXURY EDITION;FOR SOFT PAD WHEEL

45132PLATE, HORN BUTTON BACK

main45132-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

45189BUTTON, HORN, NO.3

main45131-20080iRT119..3HC;RT105..3FC..4D197308-197808

main45131-20090iRT119..3HC;RT105..3FC..4D197308-197701

FOR SOFT PAD WHEEL

main45131-20090iRT119..3HC197701-197808

LUXURY EDITION;FOR SOFT PAD WHEEL

45201PNUT, STEERING WHEEL SET

main90179-12086iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

45207RING, HORN CONTACT

main45176-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9331915008

main93319-15008

9331915014

main93319-15014

9351013008

main93510-13008

9351013010

main93510-13010

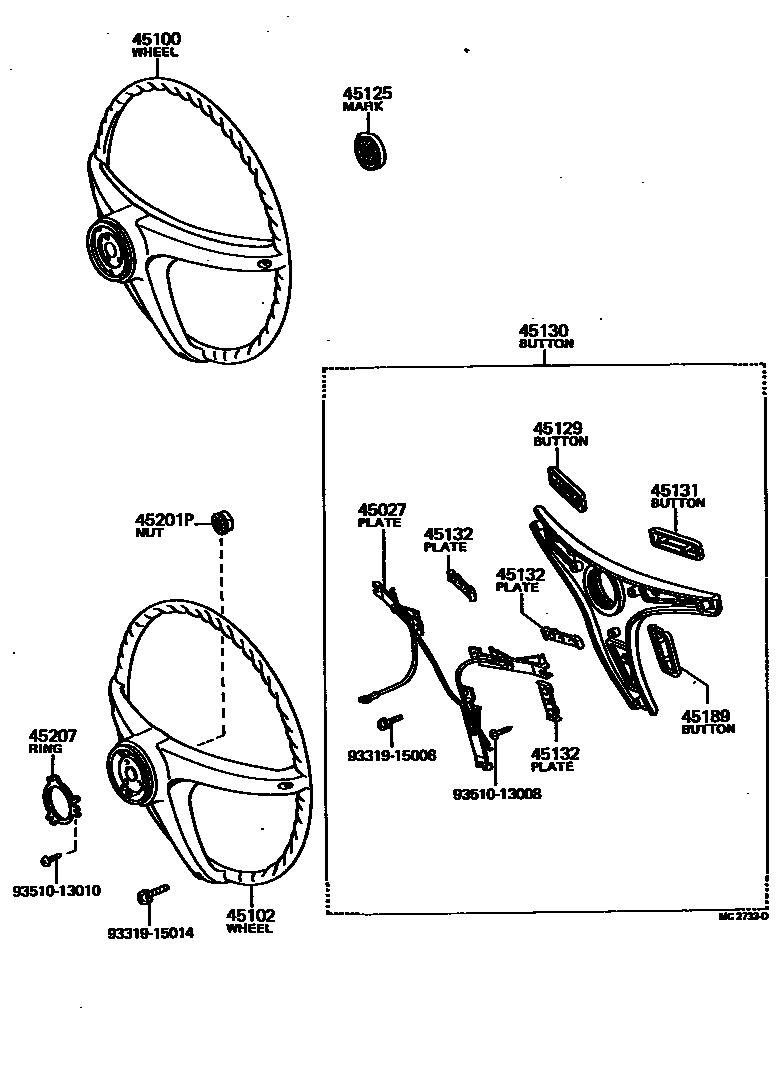

15 parts on this diagram · 2 diagrams in section
