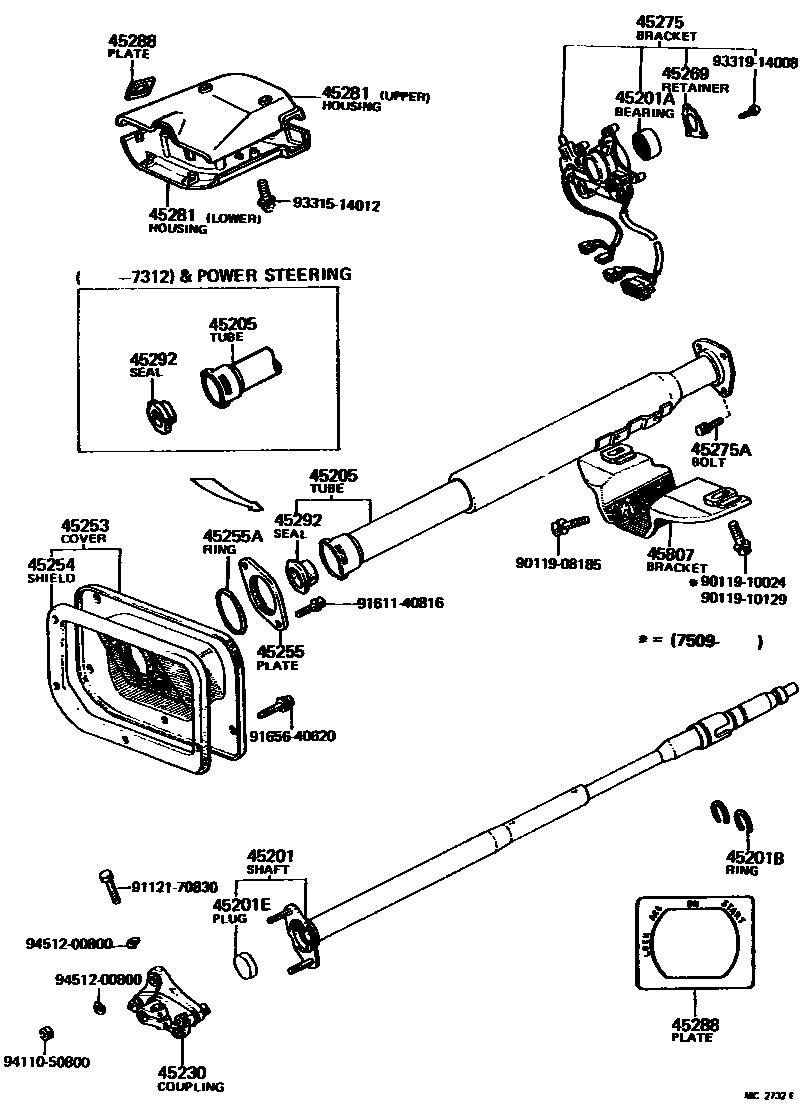

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-20150iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

sub45201-20151

main45201-20151iRT119..3HC;RT105..3FC..4D197511-197808

main45201-20160iRT119..3HC197701-197808

FOR POWER STEERING

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

B18Z-1B1 C3

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

T=1.20,T=1.2

main90520-17196iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

T=1.35-1.45,T=1.4

45201EPLUG, PLATE(FOR STEERING MAIN SHAFT)

main90333-21008iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

45205TUBE SUB-ASSY, STEERING COLUMN

main45870-20050iRT118..4F;RT104..3FC..STD197308-197312

main45870-20060iRT119..3HC197701-197808

FOR POWER STEERING

main45870-20907iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197312-197808

45230COUPLING ASSY, FLEXIBLE

main45230-14020iRT119..3HC;RT105..3FC..4D197511-197808

main45230-30041iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

sub45230-12020

45253COVER, STEERING COLUMN HOLE

main45253-20911iRT119..3HC197605-197808

main45253-20912iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main45253-20915iRT119..3HC197701-197808

FOR POWER STEERING

main45253-20916iRT119..3HC197701-197808

FOR POWER STEERING

45254SHIELD, STEERING COLUMN HOLE

main45254-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

45255PLATE, STEERING COLUMN HOLE COVER

main45255-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-45202iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

45269RETAINER, MAIN SHAFT BEARING

main45269-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub45269-35010

45275BRACKET, STEERING COLUMN, UPPER

main45280-20170iRT118..4F;RT104..3FC..STD197308-197408

sub45280-20171

main45280-20171iRT119..3HC;RT105..3FC..4D197408-197808

main45280-20190iRT119..3HC197605-197808

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main91611-40614iRT119..3HC;RT105..3FC..4D197512-197808

sub91611-60614

main91611-40616iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

sub91611-60616

45281HOUSING, STEERING COLUMN

main45023-20060iRT118..4F;RT104..3FC..STD197308-197408

UPPER

main45023-20090iRT105..3FC..4D197408-197509

UPPER

sub45286-20120

main45023-20090-01iRT119..3HC;RT105..3FC..4D197509-197701

UPPER,BLACK,BLACK

sub45023-20090

sub45286-20120

main45023-20090-06iRT119..3HC;RT105..3FC..4D197509-197701

UPPER,BROWN,BROWN

sub45023-20090

sub45286-20120

main45023-20100-01iRT119..3HC197605-197701

UPPER,BLACK,BLACK

sub45023-20100

sub45286-20130

main45023-20100-06iRT119..3HC197605-197701

UPPER,BROWN,BROWN

sub45023-20100

sub45286-20130

main45286-20120-01iRT119..3HC197701-197808

BLACK,UPPER,BLACK

sub45286-20120

main45286-20120-03iRT119..3HC197701-197808

GRAY,UPPER,GRAY

sub45286-20120

main45286-20120-05iRT119..3HC197701-197808

BEIGE,UPPER,BEIGE

sub45286-20120

main45286-20130-01iRT119..3HC197701-197808

BLACK,UPPER,BLACK

main45286-20130-03iRT119..3HC197701-197808

GRAY,UPPER,GRAY

main45286-20130-05iRT119..3HC197701-197808

BEIGE,UPPER,BEIGE

main45287-20070iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

LOWER

main45287-20070-01iRT119..3HC;RT105..3FC..4D197509-197808

LOWER,BLACK,BLACK

sub45287-20070

main45287-20070-03iRT119..3HC197701-197808

LOWER,GRAY,GRAY

sub45287-20070

main45287-20070-05iRT119..3HC197701-197808

LOWER,BEIGE,BEIGE

sub45287-20070

main45287-20070-06iRT119..3HC;RT105..3FC..4D197509-197701

LOWER,BROWN,BROWN

sub45287-20070

main45287-20090-01iRT119..3HC197605-197808

LOWER,BLACK,BLACK

sub45287-20090

main45287-20090-03iRT119..3HC197701-197808

LOWER,GRAY,GRAY

sub45287-20090

main45287-20090-05iRT119..3HC197701-197808

LOWER,BEIGE,BEIGE

sub45287-20090

main45287-20090-06iRT119..3HC197605-197701

LOWER,BROWN,BROWN

sub45287-20090

45288PLATE, STEERING COLUMN COVER

main45288-20030iRT119..3HC197701-197808

45292SEAL, MAIN SHAFT LOWER DUST

main45292-14030iRT119..3HC197710-197808

main45292-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main45292-22040iRT119..3HC197701-197710

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45807-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9011908185

main90119-08185

9011910024

main90119-10024

9011910129

main90119-10129

9112170830

main91121-70830

9161140816

main91611-40816

9165640620

main91656-40620

9331514012

main93315-14012

9331914008

main93319-14008

9411050800

main94110-50800

9451200800

main94512-00800

27 parts on this diagram · 3 diagrams in section
