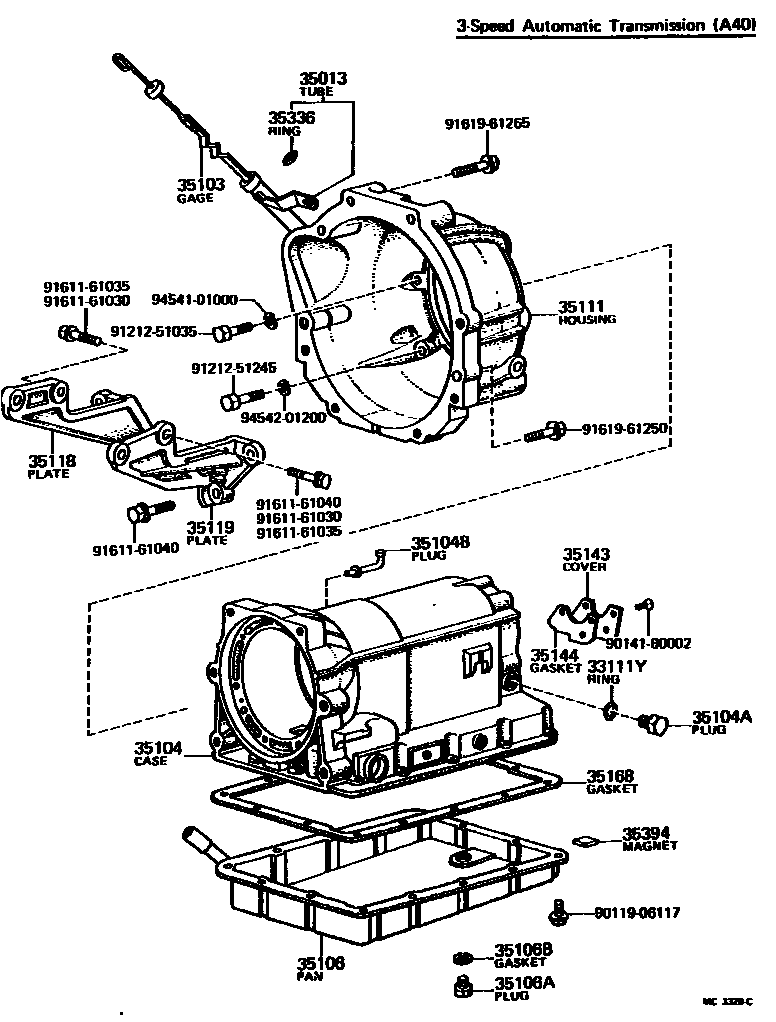

TRANSMISSION CASE & OIL PAN (ATM)

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main90301-06196×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-20050iRT118..4F;RT104..3FC..STD197308-197408

main35013-20082iRT119..3HC197605-197808

main35013-20083iRT105..3FC..4D197512-197605

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-20071iRT119..3HC;RT105..3FC..4D197408-197808

main35103-22030iRT118..4F;RT104..3FC..STD197308-197408

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22021iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197705

main35104-22022iRT119..3HC197705-197808

sub35104-22023

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08079×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03061iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub90930-03069

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-14020iRT105..3FC..4D197512-197605

sub35106-14021

main35106-20011iRT119..3HC197605-197808

main35106-22020iRT118..4F;RT104..3FC..STD197308-197408

sub35106-22021

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10078iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub90341-10003

sub35178-30010

35106BGASKET, DRAIN PLUG (ATM)

main90202-10110iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-20060iRT119..3HC;RT105..3FC..4D197408-197808

sub35111-20061

main35111-22020iRT118..4F197308-197311

sub90461-08041

sub91651-40610

main35111-22030iRT118..4F;RT104..3FC..STD197311-197408

sub35111-22031

35118PLATE, STIFENER, RH (ATM)

main33118-20050iRT118..4F;RT104..3FC..STD197308-197408

main33118-22030iRT119..3HC;RT105..3FC..4D197408-197808

35119PLATE, STIFENER, LH (ATM)

main33119-20050iRT118..4F;RT104..3FC..STD197308-197408

sub91611-61030

main33119-22020iRT119..3HC;RT105..3FC..4D197408-197807

main33119-22021iRT119..3HC197807-197808

sub33119-22022

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub35168-22011

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30010×2iRT118..4F;RT104..3FC..STD197308-197408

main35394-30011×2iRT119..3HC;RT105..3FC..4D197408-197808

9011906117

main90119-06117

9014160002

main90141-60002

9121251035

main91212-51035

9121251245

main91212-51245

9161161030

main91611-61030

9161161035

main91611-61035

9161161040

main91611-61040

9161961250

main91619-61250

9161961265

main91619-61265

9454101000

main94541-01000

9454201200

main94542-01200

28 parts on this diagram · 1 diagram in section
