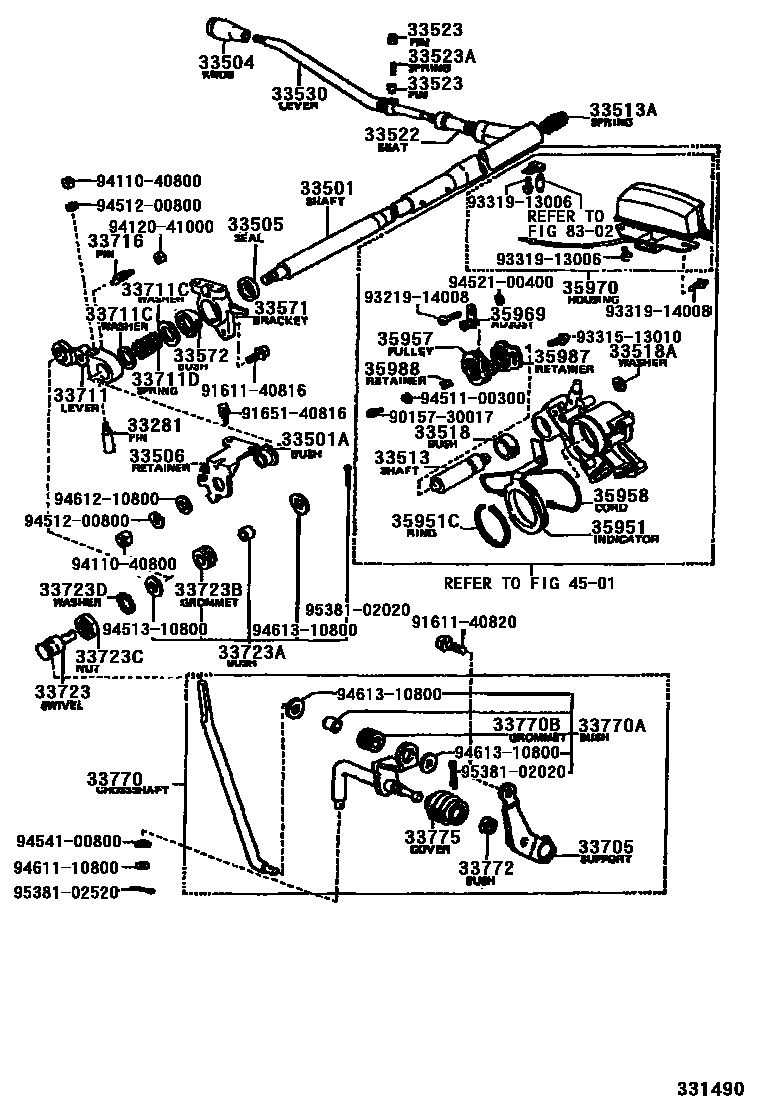

CONTROL SHAFT & CROSSSHAFT
33281PIN, LEVER LOCK (FOR COLUMN SHIFT)
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ASPRING, COMPRESSION
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
FOR POWER STEERING
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33705SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711CWASHER, PLATE (FOR CONTROL SHAFT LEVER)
T=1.2,T=1.2,LOWER
T=1.0,T=1.0,UPPER
33711DSPRING, COMPRESSION (FOR CONTROL SHAFT LEVER)
33716PIN, CONTROL SHAFT LEVER STOPPER
33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)
33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)
33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)
33770SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
33770ABUSH (FOR CROSS SHAFT)
33770BGROMET (FOR COLUMN SHIFT CROSS SHAFT)
33772BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33775COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
35951INDICATOR, CONTROL POSITION
35951CRING, SHAFT SNAP (FOR CONTROL POSITION INDICATOR)
35957PULLEY, POSITION INDICATOR DRIVE
35958CORD, POSITION INDICATOR DRIVE
35969ADJUST, DRIVE CORD
35970HOUSING ASSY, POSITION INDICATOR (FOR COLUMN SHIFT)
35987RETAINER, POSITION INDICATOR DRIVE PULLEY
35988RETAINER, DRIVE CORD
4501
8302
9015730017
main90157-30017
9161140816
main91611-40816
9161140820
main91611-40820
9165140816
main91651-40816
9321914008
main93219-14008
9331513010
main93315-13010
9331913006
main93319-13006
9331914008
main93319-14008
9411040800
main94110-40800
9412041000
main94120-41000
9451100300
main94511-00300
9451200800
main94512-00800
9451310800
main94513-10800
9452100400
main94521-00400
9454100800
main94541-00800
9461110800
main94611-10800
9461210800
main94612-10800
9461310800
main94613-10800
9538102020
main95381-02020
9538102520
main95381-02520
61 parts on this diagram · 1 diagram in section
