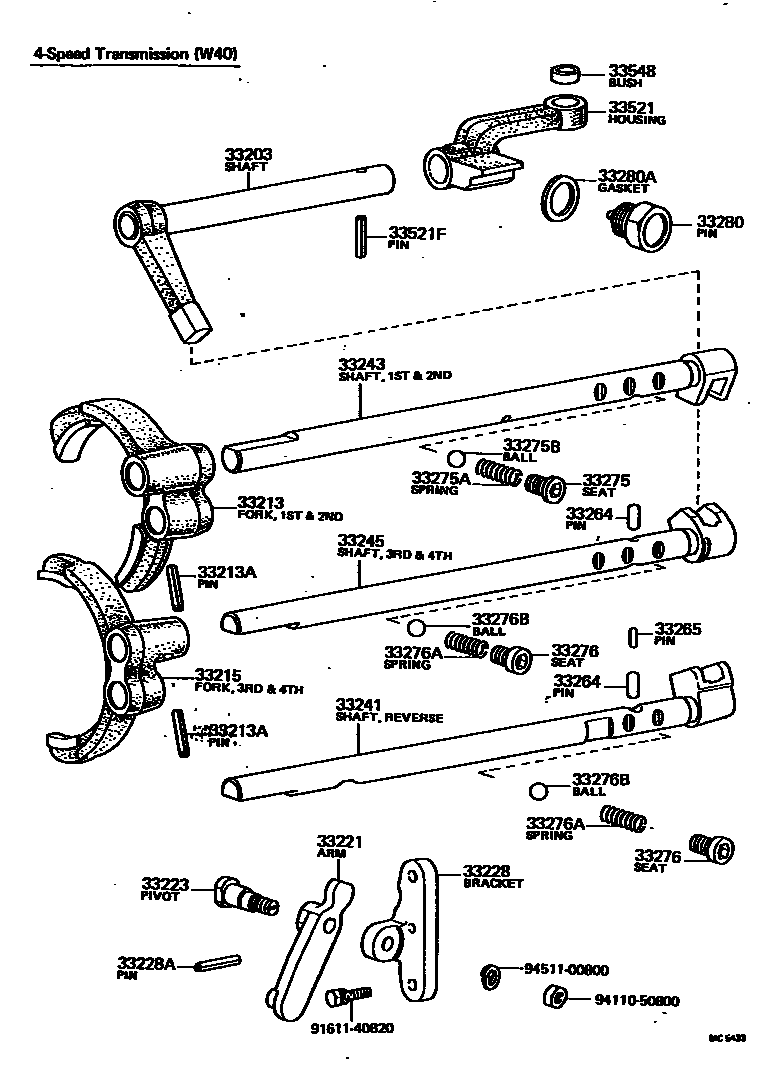

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main33203-20090iRT118..4F;RT104..3FC..STD197308-197408

sub33203-20091

main33203-20091iRT105..3FC..4D197408-197411

sub33203-20092

main33203-20092iRT119..3HC;RT105..3FC..4D197411-197808

sub33251-20040

33213FORK, 1ST & 2ND SHIFT

main33212-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33215FORK, 3RD & 4TH SHIFT

main33213-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33221ARM, REVERSE SHIFT

main33221-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33223PIVOT, SHIFT ARM

main33223-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33228BRACKET, REVERSE SHIFT ARM

main33228-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33228APIN, REVERSE SHIFT ARM BRACKET

main90254-05001iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33241SHAFT, REVERSE SHIFT FORK

main33241-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main33244-20010iRT118..4F;RT104..3FC..STD197308-197408

sub33244-20011

main33244-20011iRT119..3HC;RT105..3FC..4D197408-197808

sub33244-20902

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-20040iRT118..4F;RT104..3FC..STD197308-197408

sub33242-20041

main33242-20041iRT119..3HC;RT105..3FC..4D197408-197807

sub33242-20042

main33242-20042iRT119..3HC197807-197808

main33242-31010iRT118..4F;RT104..3FC..STD197308-197408

sub33242-31011

main33242-31011iRT119..3HC;RT105..3FC..4D197408-197807

sub33242-31012

main33242-31012iRT119..3HC197807-197808

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-20030iRT118..4F;RT104..3FC..STD197308-197408

main33243-20031iRT119..3HC;RT105..3FC..4D197408-197808

main33243-31010iRT118..4F;RT104..3FC..STD197308-197408

sub33243-31011

main33243-31011iRT119..3HC;RT105..3FC..4D197408-197808

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33265PIN, SHIFT INTERLOCK, NO.2

main33265-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-10004iRT119..3HC197807-197808

main90341-10065iRT10#,11#..MTM197308-197807

L=7.5,OD=15

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13001iRT119..3HC;RT105..3FC..4D197408-197808

L=16.5,WD=1.4,CW=10

main90501-14597iRT118..4F;RT104..3FC..STD197308-197408

WD=1.4,CW=10

sub90501-13001

33275BBALL, SHAFT DETENT

main90360-08009iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-10064iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-13001iRT119..3HC;RT105..3FC..4D197408-197808

WD=1.4,CW=10

main90501-14597iRT118..4F;RT104..3FC..STD197308-197408

WD=1.4,CW=10

sub90501-13001

33276BBALL, SHIFT DETENT, NO.2

main90360-08009iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33280PIN ASSY, REVERSE RESTRICT

main33280-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33280AGASKET, REVERSE RESTRICT PIN

main90430-18165iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33521HOUSING, SHIFT LEVER

main33521-20120iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main33521-20130iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main33521-20140iRT119..3HC;RT105..3FC..4D197507-197701

FOR NOISE COUNTERMEASURE

sub33521-20141

main33521-20140iRT119..3HC197701-197808

sub33521-20141

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90254-05016iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33548BUSH, SHIFT LEVER

main33548-31010iRT119..3HC;RT105..3FC..4D197507-197701

FOR NOISE COUNTERMEASURE

main33548-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9161140820

main91611-40820

9411050800

main94110-50800

9451100800

main94511-00800

27 parts on this diagram · 2 diagrams in section
