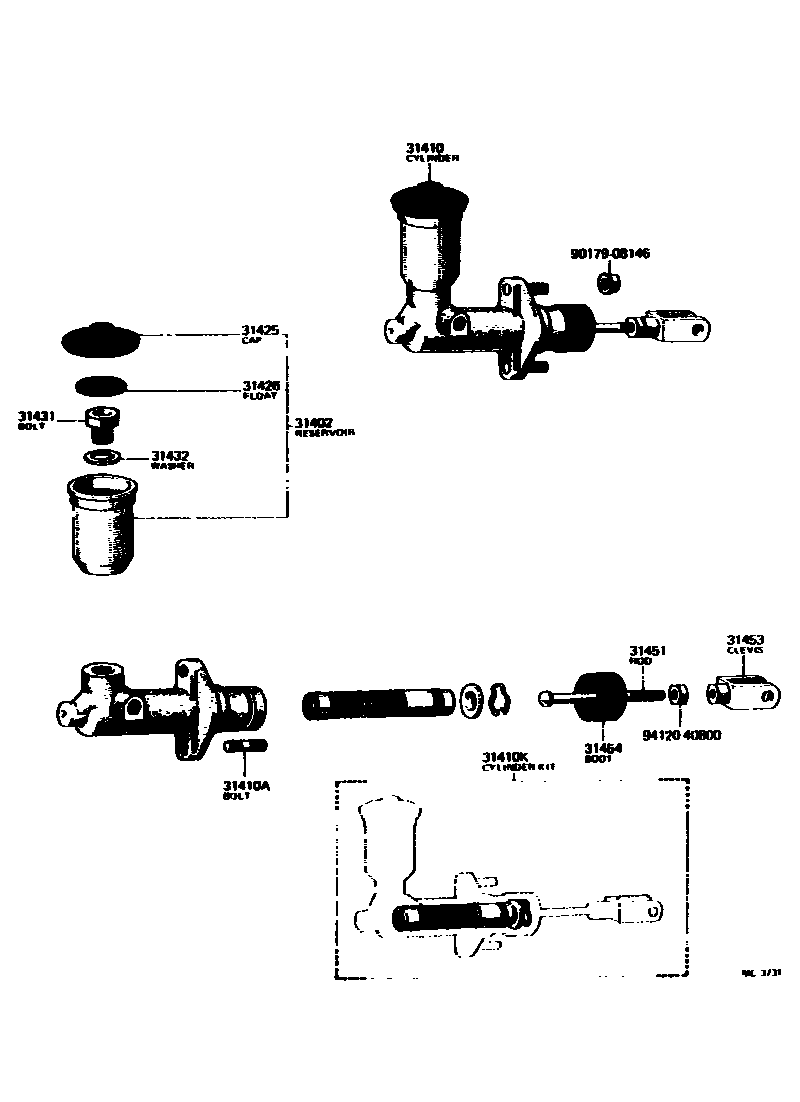

CLUTCH MASTER CYLINDER

0001 1 0002 1

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20010iRT119..3HC;RT105..3FC..4D197408-197701

main47202-12050iRT118..4F;RT104..3FC..STD197308-197408

main47202-20010iRT119..3HC197701-197808

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20100iRT118..4F;RT104..3FC..STD197308-197408

sub31410-20101

main31410-20120iRT119..3HC;RT105..3FC..4D197408-197808

sub31410-20121

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08302iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

31410KCYLINDER KIT, CLUTCH MASTER

main04311-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub04311-14011

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-12030iRT118..4F;RT104..3FC..STD197308-197408

sub47230-20040

main47230-20040iRT119..3HC;RT105..3FC..4D197408-197808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iRT119..3HC;RT105..3FC..4D197408-197808

main47231-30010iRT118..4F;RT104..3FC..STD197308-197408

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-14010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main47264-10011iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9017908146

main90179-08146

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
