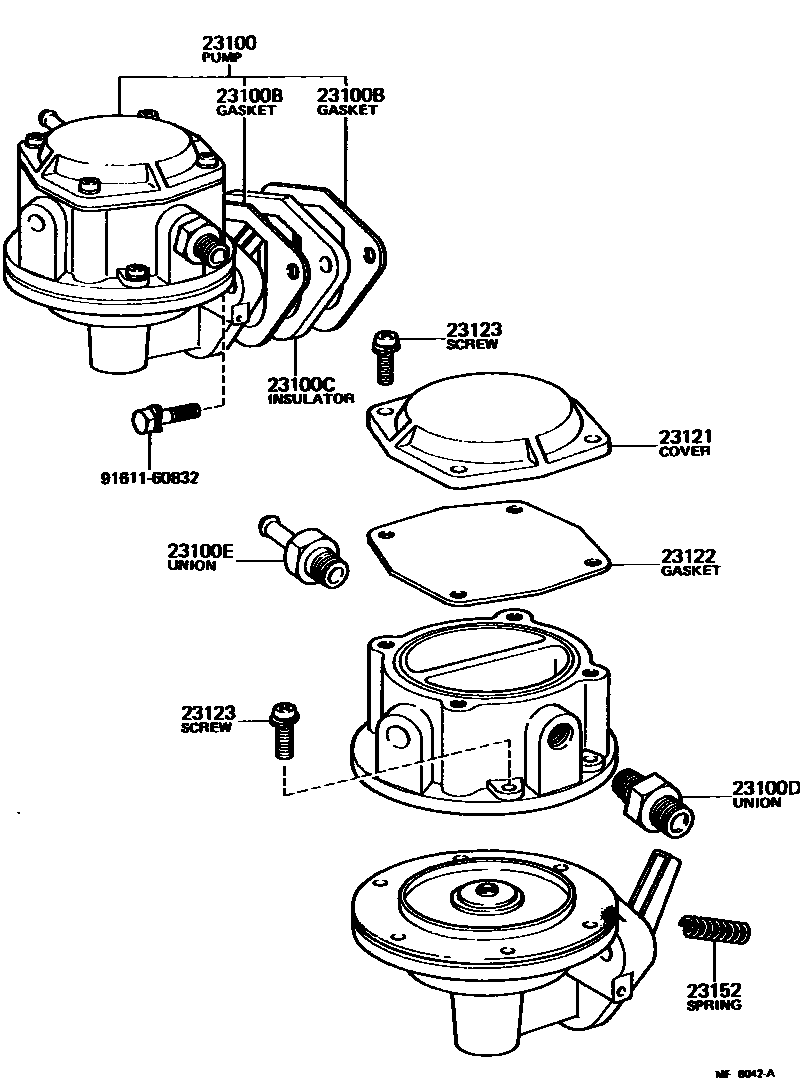

FUEL PUMP & PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

23100PUMP ASSY, FUEL

main23100-39115i18RC..RT118..4F197308-197311

sub23100-39116

main23100-39116i18RC..RT118..4F;18RC..RT104..3FC..STD197311-197408

sub23100-39117

main23100-39135i20R..RT105..3FC..4D197408-197509

sub23100-39136

main23100-39145i20R..RT105..3FC..4D197408-197509

sub23100-39146

23100BGASKET, FUEL PUMP

main83361-14010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

main90923-05005i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

sub90923-05019

23100CINSULATOR, FUEL PUMP

main90923-06001i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

sub90923-06009

23100DUNION, NIPPLE(FOR FUEL OUTLET)

main90404-13105i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

23100EUNION, NIPPLE(FOR FUEL INLET)

main90404-51244i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

23121COVER, FUEL PUMP

main23121-41030i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

23122GASKET, FUEL PUMP COVER

main23122-41030i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

23123SCREW, COVER SET, NO.1

main23123-60022i18RC..RT118..4F197308-197311

main93319-15014i18RC..RT118..4F;18RC..RT104..3FC..STD197311-197408

23152SPRING, ROCKER ARM

main23152-34040i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

9161160832

main91611-60832

10 parts on this diagram · 5 diagrams in section
