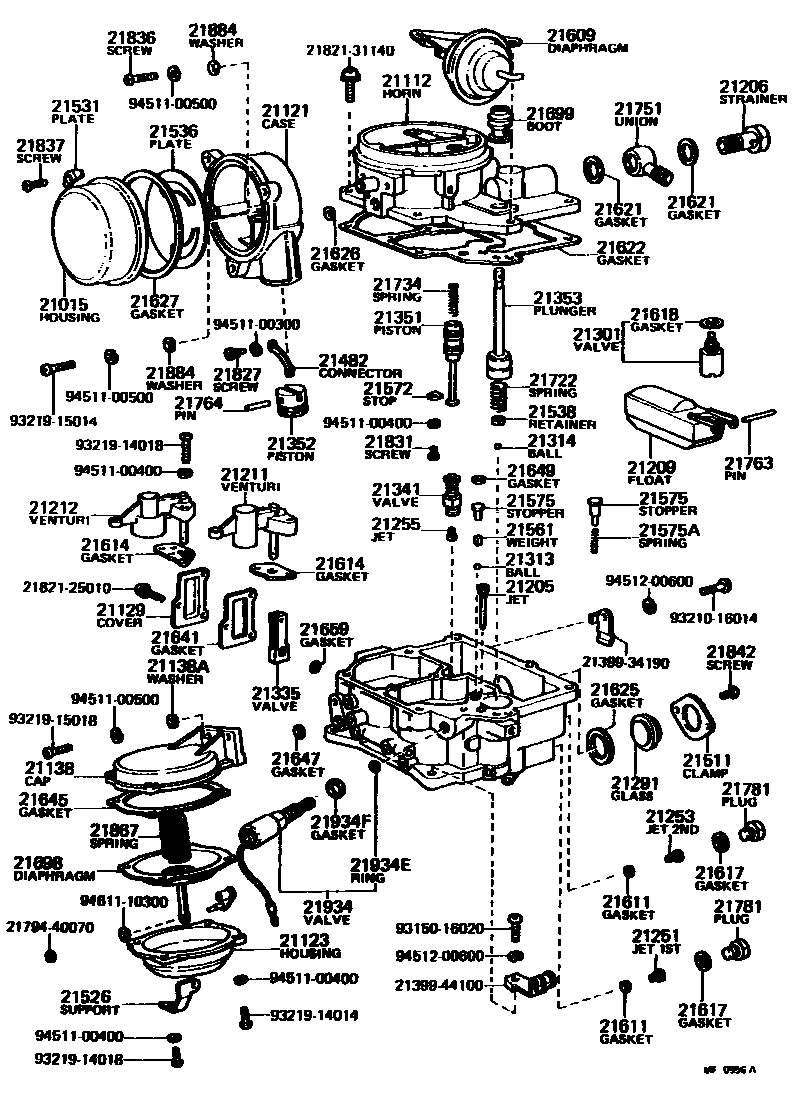

CARBURETOR
21112HORN, AIR
HIGH ALTITUDE SPEC.
W/EGR CALIFORNIA SPEC.
HIGH ALTITUDE SPEC.
CANADA SPEC.
21121CASE, THERMOSTAT
21123HOUSING, DIAPHRAGM
21129COVER(FOR THERMOSTATIC VALVE)
21138CAP, DIAPHRAGM
W/EGR CALIFORNIA SPEC.
21138AWASHER(FOR DIAPHRAGM CAP SET)
21205JET SUB-ASSY, SLOW
ID=0.53,W/EGR CAL.
ID=0.53
ID=0.53
ID=0.51
ID=0.54 W/EGR CAL.
21206STRAINER SUB-ASSY
main21811-11060i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21211VENTURI, 1ST SMALL
W/EGR CALIFORNIA SPEC.
21212VENTURI, 2ND SMALL
21251JET, 1ST MAIN
ID=1.16
ID=1.17
ID=1.19
ID=1.21 HIGH ALTITUDE SPEC.
ID=1.21 CALIFORNIA SPEC.;ID=1.21
ID=1.23 HIGH ALTITUDE SPEC.;ID=1.23 CALIFORNIA SPEC.
ID=1.25 CALIFORNIA SPEC.
21253JET, 2ND MAIN
ID=1.62
ID=1.65 HIGH ALTITUDE SPEC.
ID=1.68 W/EGR CAL.
ID=1.77
21255JET, POWER
ID=0.50
ID=0.60 W/EGR CAL.
ID=0.70
21291GLASS, LEVEL GAGE
main21291-60200i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197311-197708
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
main21313-11020i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)
main21314-11020i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21335VALVE, THERMOSTATIC
21341VALVE, POWER
main21304-30010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21351PISTON, POWER
main21351-33080i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21352PISTON, VACUUM
21353PLUNGER, PUMP
main21353-44101i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21482CONNECTOR, PISTON
21511CLAMP, LEVEL GAGE
21526SUPPORT, BACK SPRING
21531RETAINER, COIL HOUSING
21536PLATE, COIL HOUSING
21538RETAINER, BALL CHECK
main21538-31010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21561WEIGHT, PUMP DISCHARGE
21572STOP, POWER PISTON
21575STOPPER, B(FOR DISCHARGE WEIGHT)
W/EGR CALIFORNIA SPEC.
21575ASPRING(FOR STOPPER, B)
21609DIAPHRAGM SUB-ASSY
21611GASKET, MAIN JET
main21611-22010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21614GASKET, VENTURI
main21614-34031i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
1ST
sub21614-38010
main21615-44010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
2ND
sub21615-38010
21617GASKET, MAIN PASSAGE PLUG
main21617-30010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21618GASKET, NEEDLE VALVE SEAT
main21618-24030i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21621GASKET, UNION NIPPLE
main21633-24030i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
ID=12,T=1.0
21625GASKET, LEVEL GAGE
main21655-60200i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197311-197808
21626GASKET, CASE
21627GASKET, COIL HOUSING
main21627-34080i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21645GASKET, DIAPHRAGM, CAP
main21645-33080i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
sub21645-41010
21647GASKET, DIAPHRAGM HOUSING CAP
main21649-33080i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21659RING, O(FOR THERMOSTATIC VALVE)
main21641-24030i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21699BOOT(FOR PUMP PLUNGER)
main21699-21061i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
sub21699-28150
21722SPRING, PUMP DAMPING
21734SPRING, POWER PISTON
W/EGR CALIFORNIA SPEC.
main21734-33081i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21751UNION, NIPPLE
21764PIN, PISTON(FOR VACUUM PISTON)
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
main21781-30020i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
sub21781-16510
21827SCREW, CONNECTOR SET
21831SCREW, POWER PISTON STOP
main21842-33010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21836SCREW, THERMOSTAT CASE SET
21837SCREW, COIL HOUSING SET
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-33010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21867SPRING, DIAPHRAGM
W/EGR CALIFORNIA SPEC.
21884WASHER, THERMOSTAT CASE SET
21934ERING, O(FOR SOLENOID VALVE)
main21655-44101i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
21934FGASKET
main21617-10010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808
2139934190SUPPORT(FOR DASH POT)
main21399-34190
2139944100SUPPORT(FOR DASH POT)
main21399-44100
2179440070RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
main21794-40070
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
9315016020
main93150-16020
9321016014
main93210-16014
9321914014
main93219-14014
9321914018
main93219-14018
9321915014
main93219-15014
9321915018
main93219-15018
9451100300
main94511-00300
9451100400
main94511-00400
9451100500
main94511-00500
9451200600
main94512-00600
9461110300
main94611-10300
83 parts on this diagram · 14 diagrams in section
