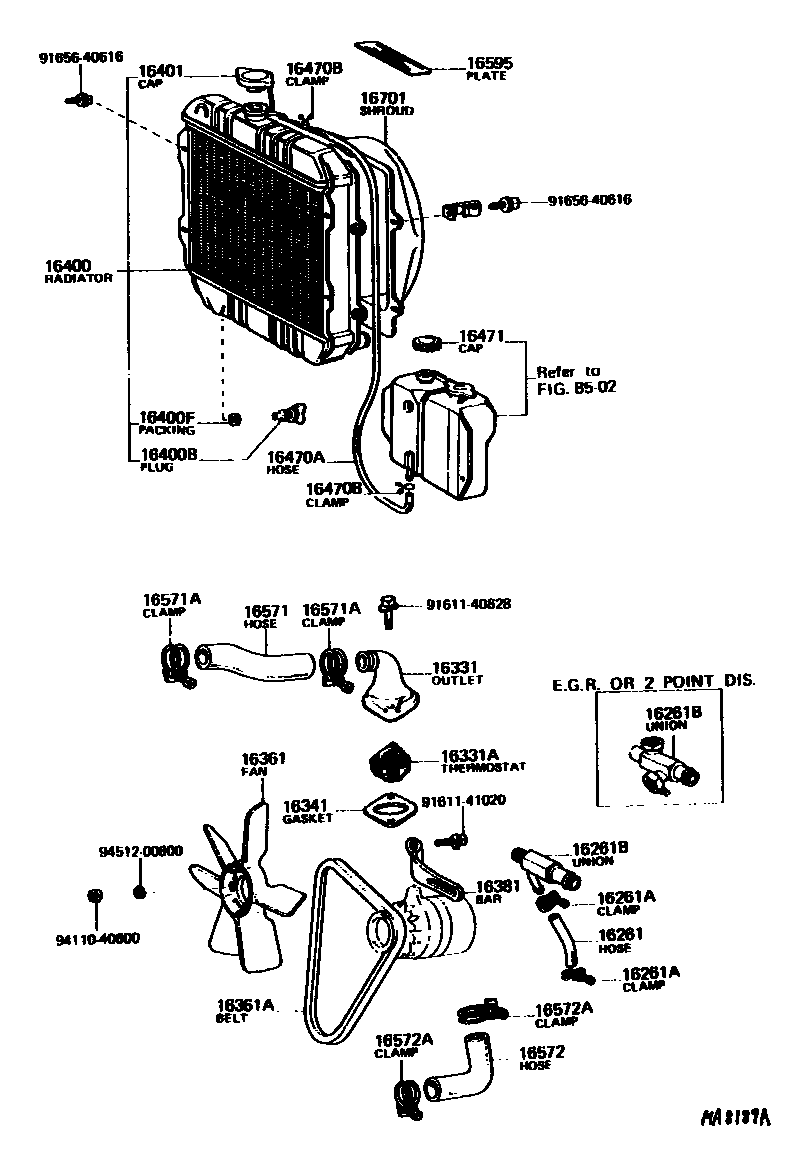

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16261HOSE, WATER BY-PASS

main16261-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

main90910-05081i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90460-25002i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

sub96112-10250

main96112-10160i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-17285i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main90404-17318i18RC..RT118..4F;18RC..RT104..3FC..STD197311-197408

W/EGR CALIFORNIA SPEC.

16331OUTLET, WATER

main16331-34021i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

W/EGR CALIFORNIA SPEC.

main16331-36010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main16331-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main16331-38011i20R..RT119..3HC197608-197808

16331ATHERMOSTAT

main90916-03033i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197608

WAX 82-95 FUJI-THOMSON

sub90916-03034

main90916-03034i20R..RT119..3HC197612-197808

WAX 82-95 FUJI-THOMSON

main90916-03036i20R..RT119..3HC197608-197612

WAX 88-100 FUJI-THOMSON

sub90916-03040

main90916-03037i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197608

WAX 82-95 KUZEH

sub90916-03083

16341GASKET, WATER OUTLET

main16341-38010i20R..RT119..3HC197807-197808

sub16341-38012

main16341-49010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197807

sub16341-38010

16361FAN

main16361-38010i20R..RT119..3HC;20R..RT105..3FC..4D197509-197808

7 BLADES OD=380

main16361-41022i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

6 BLADES OD=380

main16361-41050i20R..RT105..3FC..4D197408-197509

7 BLADES OD=380

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02038i20R..RT119..3HC;20R..RT105..3FC..4D197408-197708

L=869

sub99331-00870

main90916-02043i20R..RT119..3HC;20R..RT105..3FC..4D197503-197708

L=885 12V 55A ALTERNATOR

sub99331-50890

main99331-00870i20R..RT119..3HC197708-197808

L=870

main99521-10843i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

L=843

sub99321-00840

16381BAR, FAN BELT ADJUSTING

main16381-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main16381-38010i20R..RT105..3FC..4D197408-197503

sub16381-38011

main16381-38011i20R..RT119..3HC;20R..RT105..3FC..4D197503-197701

main16381-38012i20R..RT119..3HC197701-197702

sub16381-38013

main16381-38013i20R..RT119..3HC197702-197808

16400RADIATOR ASSY

main16400-34150i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

sub16400-36010

main16400-34160i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

sub16400-36020

main16400-36010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main16400-36020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main16400-38011i20R..RT105..3FC..4D197408-197509

main16400-38012i20R..RT119..3HC;20R..RT105..3FC..4D197509-197708

sub16400-38013

main16400-38013i20R..RT119..3HC197708-197808

main16400-38020i20R..RT105..3FC..4D197408-197509

sub16400-38011

main16400-38021i20R..RT119..3HC;20R..RT105..3FC..4D197509-197608

sub16400-38022

main16400-38022i20R..RT119..3HC197608-197708

sub16400-38023

main16400-38023i20R..RT119..3HC197708-197808

sub16400-38013

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

sub96711-19007

16401CAP SUB-ASSY, RADIATOR

main16401-36010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

sub16401-36011

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12521i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

16471CAP SUB-ASSY, RESERVE TANK

main85332-20030i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

16571HOSE, RADIATOR, INLET

main16571-36010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main16571-38011i20R..RT105..3FC..4D197408-197509

main16571-38012i20R..RT119..3HC;20R..RT105..3FC..4D197509-197808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-47036i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197406

ID=47

main90467-37001i20R..RT119..3HC197708-197808

ID=37 OUTLET SIDE

sub90467-37003

main96111-10450i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197406-197708

ID=45

main96111-10450i20R..RT119..3HC197708-197808

ID=45 RADIATOR SIDE

16572HOSE, RADIATOR, OUTLET

main16572-36020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

sub16572-36021

sub96111-10490

main16572-38011i20R..RT105..3FC..4D197408-197509

main16572-38012i20R..RT119..3HC;20R..RT105..3FC..4D197509-197701

sub16572-38050

main16572-38040i20R..RT105..3FC..4D197503-197509

ARCTIC

main16572-38050i20R..RT119..3HC197701-197808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-47036i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197406

ID=47

main90460-49062i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

ID=49,PUMP SIDE

sub96111-10490

main90460-49062i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197406

ID=49

sub96111-10490

main96111-10450i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197406-197808

ID=45,RADIATOR SIDE

main96111-10480i18RC..RT118..4F;18RC..RT104..3FC..STD197406-197408

ID=48

main96111-10480i20R..RT119..3HC197608-197808

ID=48,PUMP SIDE

16595PLATE, RADIATOR CAUTION

main16595-34010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

16701SHROUD SUB-ASSY, FAN

main16711-36020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

sub16711-36021

main16711-38011i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

8502

9161140828

main91611-40828

9161141020

main91611-41020

9165640616

main91656-40616

9411040600

main94110-40600

9451200600

main94512-00600

28 parts on this diagram · 3 diagrams in section
