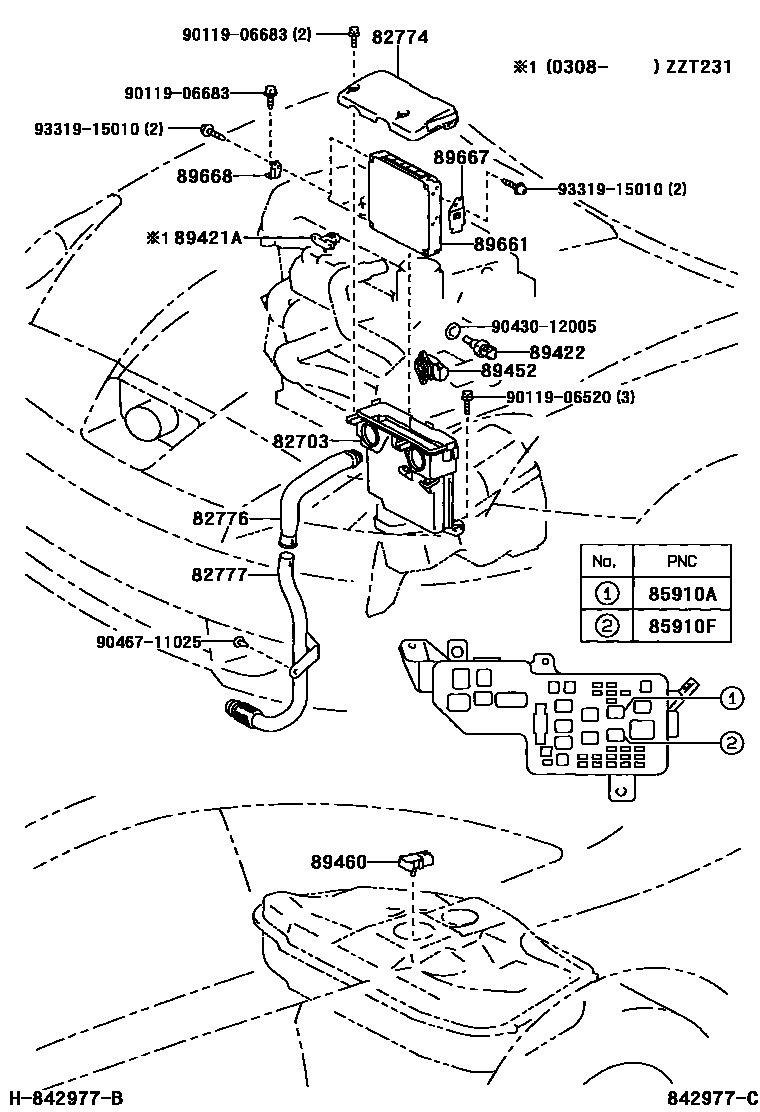

ELECTRONIC FUEL INJECTION SYSTEM
82703BOX SUB-ASSY, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82776DUCT, ENGINE ROOM ECU OUTLET
82777DUCT, ENGINE ROOM ECU, LWR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89421ASENSOR, TURBO PRESSURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-20A01
sub89661-20A11
VENEZUELA SPEC & SOUTH AMERICA SPEC
VENEZUELA SPEC & SOUTH AMERICA SPEC
sub89661-2G381
sub89661-20A00
sub89661-2G391
sub89661-2G401
sub89661-2G411
VENEZUELA SPEC & SOUTH AMERICA SPEC
VENEZUELA SPEC & SOUTH AMERICA SPEC
sub89666-20031
sub89666-20041
sub89666-20082
sub89666-20092
VENEZUELA SPEC
TAIWAN SPEC OR VENEZUELA SPEC
TAIWAN SPEC
TAIWAN SPEC
TAIWAN SPEC
TAIWAN SPEC OR VENEZUELA SPEC
VENEZUELA SPEC
VENEZUELA SPEC
VENEZUELA SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906520
main90119-06520
9011906683
main90119-06683
9043012005
main90430-12005
9046711025
main90467-11025
9331915010
main93319-15010
18 parts on this diagram · 1 diagram in section
