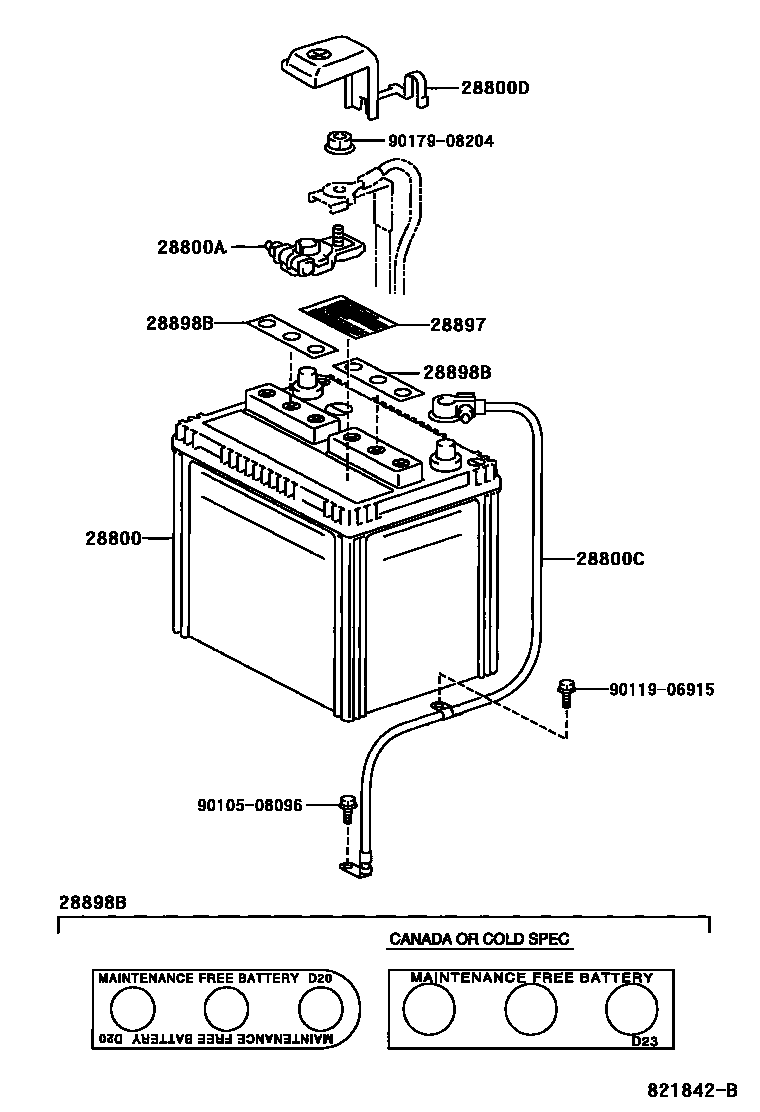

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15140i1ZZFE,2ZZGE..ZZT23#199908-200506

50D20L

main28800-16141i1ZZFE,2ZZGE..ZZT23#199908-200103

55D23L

main28800-16151i1ZZFE,2ZZGE..ZZT23#199908-200506

55D23L,FURUKAWA

sub28800-43262

main28800-43262i1ZZFE,2ZZGE..ZZT23#199908-200506

55D23L,MATSUSHITA

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1ZZFE,2ZZGE..ZZT23#199908-200004

main90982-05054i1ZZFE,2ZZGE..ZZT23#200004-200507

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82123-20400i1ZZFE..ZZT230;2ZZGE..ZZT231..6F199908-200102

main82123-20401i1ZZFE..ZZT230;2ZZGE..ZZT231..6F200102-200507

main82123-20420i2ZZGE..ZZT231..4FC199908-200102

main82123-20421i2ZZGE..ZZT231..4FC200102-200507

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1ZZFE,2ZZGE..ZZT23#199908-200004

main82821-12490i1ZZFE,2ZZGE..ZZT23#200012-200507

main82821-20350i1ZZFE,2ZZGE..ZZT23#200004-200012

28897PLATE, BATTERY CAUTION

main28897-46020i1ZZFE,2ZZGE..ZZT23#199908-200506

28898BPLATE, BATTERY

main28898-11010i1ZZFE,2ZZGE..ZZT23#199908-200506

main28898-11020i1ZZFE,2ZZGE..ZZT23#199908-200506

CANADA OR COLD SPEC

9010508096

main90105-08096

9011906915

main90119-06915

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
