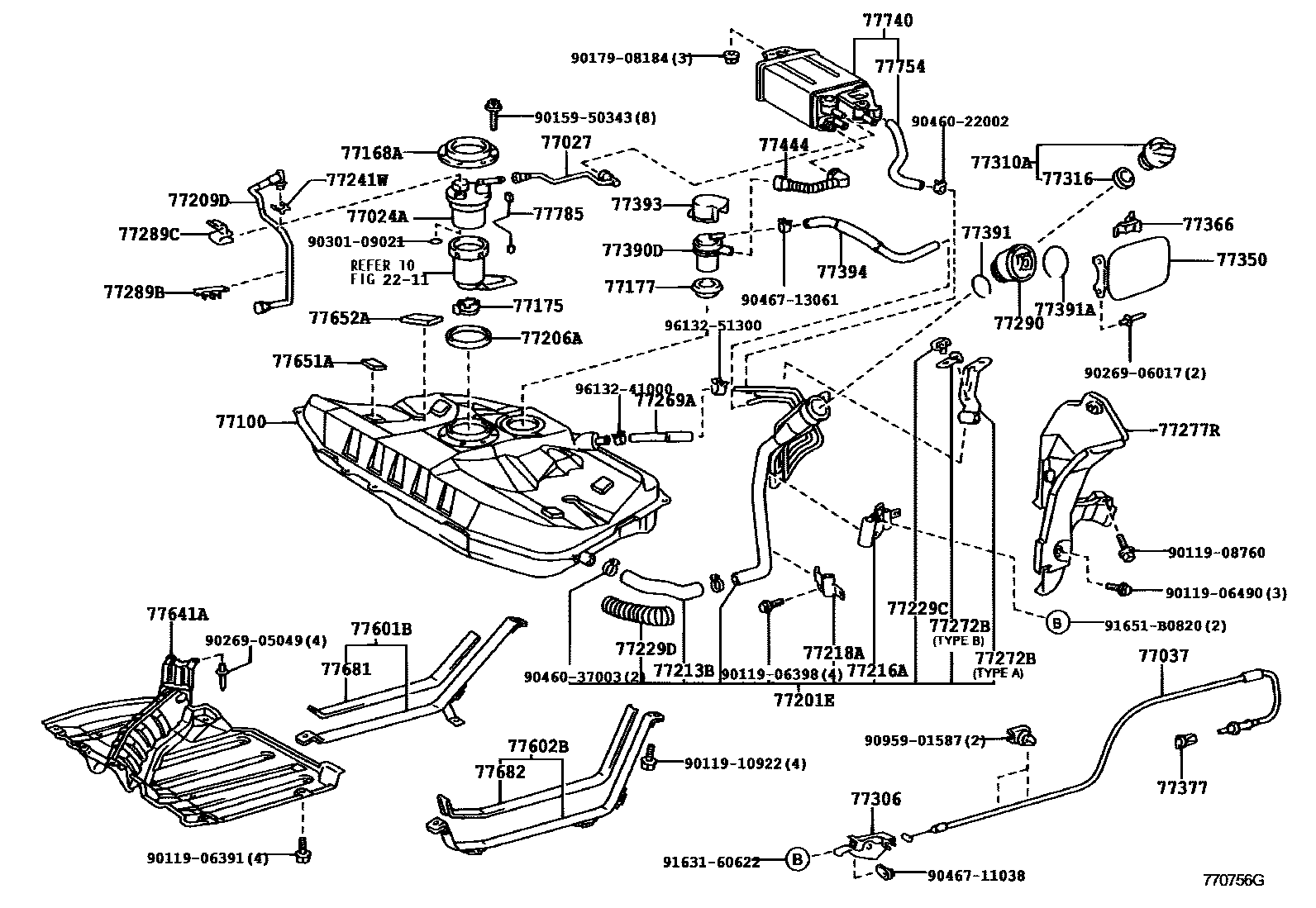

FUEL TANK & TUBE
2211
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77168APLATE, FUEL TANK VENT TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77177GASKET, CHECK VALVE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77229CCLAMP, BREATHER TUBE
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77272BSUPPORT, BREATHER TUBE, NO.1
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER ILLUST.
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER ILLUST.
77277RPROTECTOR, FUEL TANK FILLER PIPE
77289BCLAMP, FUEL TUBE, NO.3
sub77289-20090
77289CCLAMP, FUEL TUBE, NO.4
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
sub77350-20311
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77390DVALVE ASSY, FUEL TANK OVER FILL CHECK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77393PROTECTOR, CHECK VALVE
77394HOSE, VALVE TO FUEL FILLER PIPE
L=440
77444HOSE, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77785HARNESS, FUEL PUMP
9011906391
main90119-06391
9011906398
main90119-06398
9011906490
main90119-06490
9011908760
main90119-08760
9011910922
main90119-10922
9015950343
main90159-50343
9017908184
main90179-08184
9026905049
main90269-05049
9026906017
main90269-06017
9030109021
main90301-09021
9046022002
main90460-22002
9046037003
main90460-37003
9046711038
main90467-11038
9046713061
main90467-13061
9095901587
main90959-01587
9163160622
main91631-60622
91651B0820
main91651-B0820
9613241000
main96132-41000
9613251300
main96132-51300
64 parts on this diagram · 3 diagrams in section
