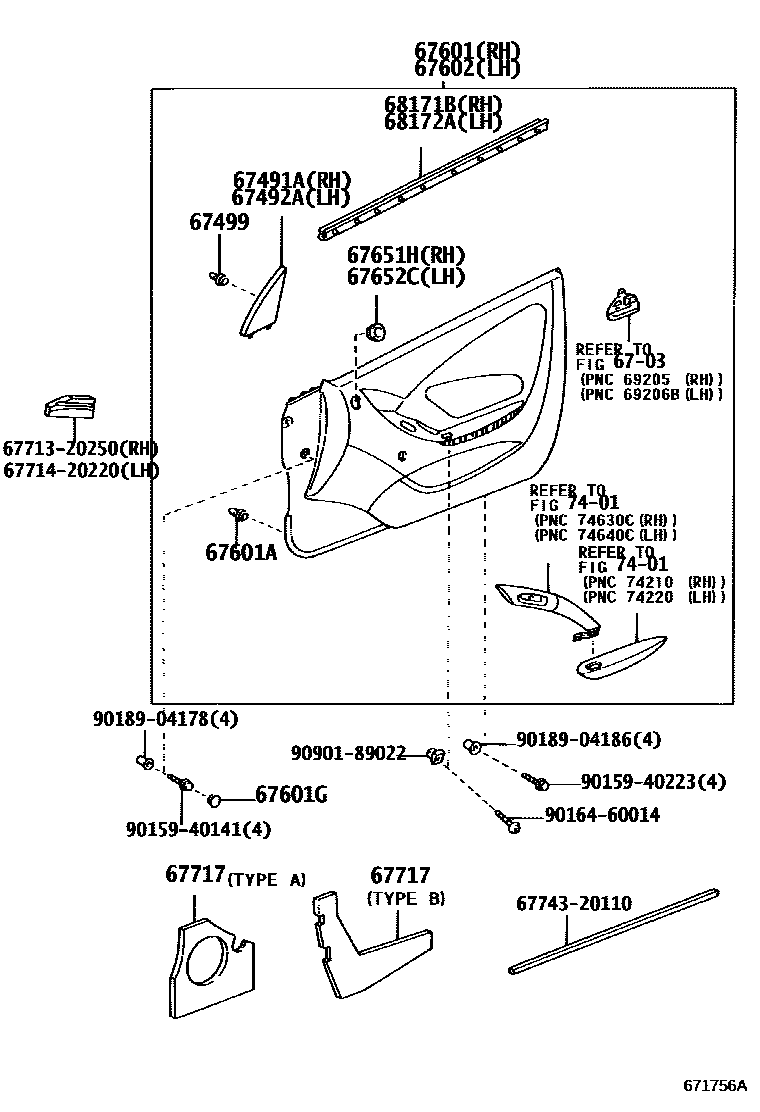

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

6703

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20400iZZT23#199908-200507

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20420iZZT23#199908-200507

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main90467-10167iZZT23#199908-200507

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2G710-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67610-2G711

main67610-2G710-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67610-2G711

main67610-2G710-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67610-2G711

main67610-2G711-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67610-2G731

sub67610-2G712

main67610-2G711-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67610-2G731

sub67610-2G712

main67610-2G711-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67610-2G731

sub67610-2G712

main67610-2G711-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67610-2G731

sub67610-2G712

main67610-2G711-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

sub67610-2G731

sub67610-2G712

main67610-2G711-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67610-2G731

sub67610-2G712

main67610-2G712-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

main67610-2G712-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

main67610-2G712-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

main67610-2G730-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G731

main67610-2G730-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67610-2G731

main67610-2G730-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G731

main67610-2G731-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G732

main67610-2G731-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67610-2G732

main67610-2G731-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G732

main67610-2G731-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G732

main67610-2G731-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),GRAY,TRIM21

sub67610-2G732

main67610-2G731-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G732

main67610-2G732-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

main67610-2G732-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),GRAY,TRIM21

main67610-2G732-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

main67610-2G740-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

sub67610-2G741

main67610-2G740-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM21

sub67610-2G741

main67610-2G740-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

sub67610-2G741

main67610-2G741-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

sub67610-2G771

sub67610-2G742

main67610-2G741-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM21

sub67610-2G771

sub67610-2G742

main67610-2G741-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

sub67610-2G771

sub67610-2G742

main67610-2G741-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

sub67610-2G771

sub67610-2G742

main67610-2G741-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),GRAY,TRIM21

sub67610-2G771

sub67610-2G742

main67610-2G741-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

sub67610-2G771

sub67610-2G742

main67610-2G742-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

main67610-2G742-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),GRAY,TRIM21

main67610-2G742-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

main67610-2G750-C0iZZT23#199908-200008

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67610-2G751

main67610-2G751-C1iZZT23#200008-200208

DOOR TRIM=TYPE B-*104 & W(POWER SEAT),BLACK,TRIM2#

sub67610-2G781

sub67610-2G752

main67610-2G751-C2iZZT23#200208-200309

DOOR TRIM=TYPE B-*104 & W(POWER SEAT),BLACK,TRIM2#

sub67610-2G781

sub67610-2G752

main67610-2G752-C1iZZT23#200309-200507

DOOR TRIM=TYPE B-*104 & W(POWER SEAT),BLACK,TRIM2#

main67610-2G760-C0iZZT23#199908-200008

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67610-2G761

main67610-2G761-C1iZZT23#200008-200208

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67610-2G791

sub67610-2G762

main67610-2G761-C2iZZT23#200208-200309

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67610-2G791

sub67610-2G762

main67610-2G762-C1iZZT23#200309-200507

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67610-2G792

main67610-2G770-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G771

main67610-2G770-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM21

sub67610-2G771

main67610-2G770-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G771

main67610-2G771-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G772

main67610-2G771-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM21

sub67610-2G772

main67610-2G771-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G772

main67610-2G771-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G772

main67610-2G771-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),GRAY,TRIM21

sub67610-2G772

main67610-2G771-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G772

main67610-2G772-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

main67610-2G772-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),GRAY,TRIM21

main67610-2G772-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

main67610-2G780-C0iZZT23#199908-200008

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67610-2G781

main67610-2G781-C1iZZT23#200008-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67610-2G782

main67610-2G781-C2iZZT23#200208-200309

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67610-2G782

main67610-2G782-C1iZZT23#200309-200507

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

main67610-2G790-C0iZZT23#199908-200008

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67610-2G791

main67610-2G791-C1iZZT23#200008-200208

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67610-2G792

main67610-2G791-C2iZZT23#200208-200309

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67610-2G792

main67610-2G792-C1iZZT23#200309-200507

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

main67610-2H060-C0iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM20

sub67610-2H061

main67610-2H060-C1iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,GRAY,TRIM21

sub67610-2H061

main67610-2H060-C2iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM22

sub67610-2H061

main67610-2H061-C0iZZT230200309-200408

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM20

main67610-2H061-C1iZZT230200309-200408

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,GRAY,TRIM21

main67610-2H061-C2iZZT230200309-200408

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM22

main67610-2H070-C0iZZT23#200208-200309

DOOR TRIM=TYPE B-*104 & 8 SPEAKER,BLACK,TRIM2#

sub67610-2H071

main67610-2H071-C0iZZT230200309-200507

DOOR TRIM=TYPE B-*104 & 8 SPEAKER,BLACK,TRIM2#

main67610-2H080-C0iZZT23#200208-200309

DOOR TRIM=TYPE C-*104 & 8 SPEAKER,BLACK,TRIM2#

sub67610-2H081

main67610-2H081-C0iZZT230200309-200507

DOOR TRIM=TYPE C-*104 & 8 SPEAKER,BLACK,TRIM2#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161iZZT23#199908-200507

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B7iZZT231199908-200208

AMETHYST,TRIM2#

sub90950-01800

main90950-01800-B7iZZT230199908-200208

AMETHYST,TRIM20,21,22,23

sub90950-01800

main90950-01800-P0iZZT230200208-200507

DK.GRAY,TRIM20,21,22,23

sub90950-01800

main90950-01800-P0iZZT230200208-200507

DK.GRAY,TRIM2#

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67660-20080-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20081

main67660-20080-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67660-20081

main67660-20080-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20081

main67660-20081-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20101

sub67660-20082

main67660-20081-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67660-20101

sub67660-20082

main67660-20081-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20101

sub67660-20082

main67660-20081-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20101

sub67660-20082

main67660-20081-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

sub67660-20101

sub67660-20082

main67660-20081-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20101

sub67660-20082

main67660-20082-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

main67660-20082-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

main67660-20082-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

main67660-20100-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67660-20101

main67660-20100-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67660-20101

main67660-20100-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67660-20101

main67660-20101-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67660-20102

main67660-20101-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67660-20102

main67660-20101-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67660-20102

main67660-20101-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67660-20102

main67660-20101-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),GRAY,TRIM21

sub67660-20102

main67660-20101-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67660-20102

main67660-20102-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

main67660-20102-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),GRAY,TRIM21

main67660-20102-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

main67660-20110-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

sub67660-20111

main67660-20110-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM21

sub67660-20111

main67660-20110-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

sub67660-20111

main67660-20111-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

sub67660-20141

sub67660-20112

main67660-20111-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM21

sub67660-20141

sub67660-20112

main67660-20111-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

sub67660-20141

sub67660-20112

main67660-20111-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

sub67660-20141

sub67660-20112

main67660-20111-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),GRAY,TRIM21

sub67660-20141

sub67660-20112

main67660-20111-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

sub67660-20141

sub67660-20112

main67660-20112-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM20

sub67660-20142

main67660-20112-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),GRAY,TRIM21

sub67660-20142

main67660-20112-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLACK,TRIM22

sub67660-20142

main67660-20120-C0iZZT23#199908-200008

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67660-20121

main67660-20121-C1iZZT23#200008-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67660-20151

sub67660-20122

main67660-20121-C2iZZT23#200208-200309

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67660-20151

sub67660-20122

main67660-20122-C1iZZT23#200309-200507

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLACK,TRIM2#

main67660-20130-C0iZZT23#199908-200008

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67660-20131

main67660-20131-C1iZZT23#200008-200208

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67660-20161

sub67660-20132

main67660-20131-C2iZZT23#200208-200309

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67660-20161

sub67660-20132

main67660-20132-C1iZZT23#200309-200507

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLACK,TRIM2#

sub67660-20162

main67660-20140-C0iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

sub67660-20141

main67660-20140-C1iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM21

sub67660-20141

main67660-20140-C2iZZT230199908-200008

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

sub67660-20141

main67660-20141-C3iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

sub67660-20142

main67660-20141-C4iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM21

sub67660-20142

main67660-20141-C5iZZT230200008-200208

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

sub67660-20142

main67660-20141-C6iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

sub67660-20142

main67660-20141-C7iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),GRAY,TRIM21

sub67660-20142

main67660-20141-C8iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

sub67660-20142

main67660-20142-C3iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM20

main67660-20142-C4iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),GRAY,TRIM21

main67660-20142-C5iZZT230200309-200507

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM22

main67660-20150-C0iZZT23#199908-200008

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67660-20151

main67660-20151-C1iZZT23#200008-200208

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67660-20152

main67660-20151-C2iZZT23#200208-200309

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67660-20152

main67660-20152-C1iZZT23#200309-200507

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

main67660-20160-C0iZZT23#199908-200008

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67660-20161

main67660-20161-C1iZZT23#200008-200208

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW & TWEETER SPEAKER),BLACK,TRIM2#

sub67660-20162

main67660-20161-C2iZZT23#200208-200309

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67660-20162

main67660-20162-C1iZZT23#200309-200507

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

main67660-20280-C0iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM20

sub67660-20281

main67660-20280-C1iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,GRAY,TRIM21

sub67660-20281

main67660-20280-C2iZZT230200208-200309

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM22

sub67660-20281

main67660-20281-C0iZZT230200309-200408

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM20

main67660-20281-C1iZZT230200309-200408

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,GRAY,TRIM21

main67660-20281-C2iZZT230200309-200408

DOOR TRIM=TYPE A-*104 & 8 SPEAKER,BLACK,TRIM22

main67660-20290-C0iZZT23#200208-200309

DOOR TRIM=TYPE B-*104 & 8 SPEAKER,BLACK,TRIM2#

sub67660-20291

main67660-20291-C0iZZT231200309-200507

DOOR TRIM=TYPE B-*104 & 8 SPEAKER,BLACK,TRIM2#

main67660-20300-C0iZZT23#200208-200309

DOOR TRIM=TYPE C-*104 & 8 SPEAKER,BLACK,TRIM2#

sub67660-20301

main67660-20301-C0iZZT231200309-200507

DOOR TRIM=TYPE C-*104 & 8 SPEAKER,BLACK,TRIM2#

67651HGRILLE, SPEAKER DOOR, RH

main67651-20070-B0iZZT231199908-200208

AMETHYST,TRIM20,21,22,23

sub67651-20070

main67651-20070-B0iZZT230199908-200208

AMETHYST,TRIM2#

sub67651-20070

main67651-20070-B2iZZT230200208-200507

DK.GRAY,TRIM20,21,22,23

sub67651-20070

main67651-20070-B2iZZT230200208-200507

DK.GRAY,TRIM2#

sub67651-20070

67652CGRILLE, SPEAKER DOOR, LH

main67652-20060-B0iZZT230199908-200208

AMETHYST,TRIM20,21,22,23

sub67652-20060

main67652-20060-B0iZZT230199908-200208

AMETHYST,TRIM2#

sub67652-20060

main67652-20060-B2iZZT230200208-200507

DK.GRAY,TRIM20,21,22,23

sub67652-20060

main67652-20060-B2iZZT230200208-200507

DK.GRAY,TRIM2#

sub67652-20060

67717PAD, FRONT DOOR TRIM, CENTER RH

main67717-20280iZZT23#200208-200507

TYPE A:REFER ILLUST.

main67717-20280iZZT23#199908-200208

TYPE A:REFER TO ILLUSTRATION

main67731-20080iZZT23#199908-200208

TYPE B:REFER TO ILLUSTRATION

main67731-20080iZZT23#200208-200507

TYPE B:REFER ILLUST.

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-20120iZZT23#199908-200308

sub68171-20121

main68171-20121iZZT23#200308-200507

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-20110iZZT23#199908-200308

sub68172-20111

main68172-20111iZZT23#200308-200507

7401

6771320250

main67713-20250

6771420220

main67714-20220

6774320110MARK, SIDE TRIM

main67743-20110

9015940141

main90159-40141

9015940223

main90159-40223

9016460014

main90164-60014

9018904178

main90189-04178

9018904186

main90189-04186

9090189022

main90901-89022

23 parts on this diagram · 4 diagrams in section
