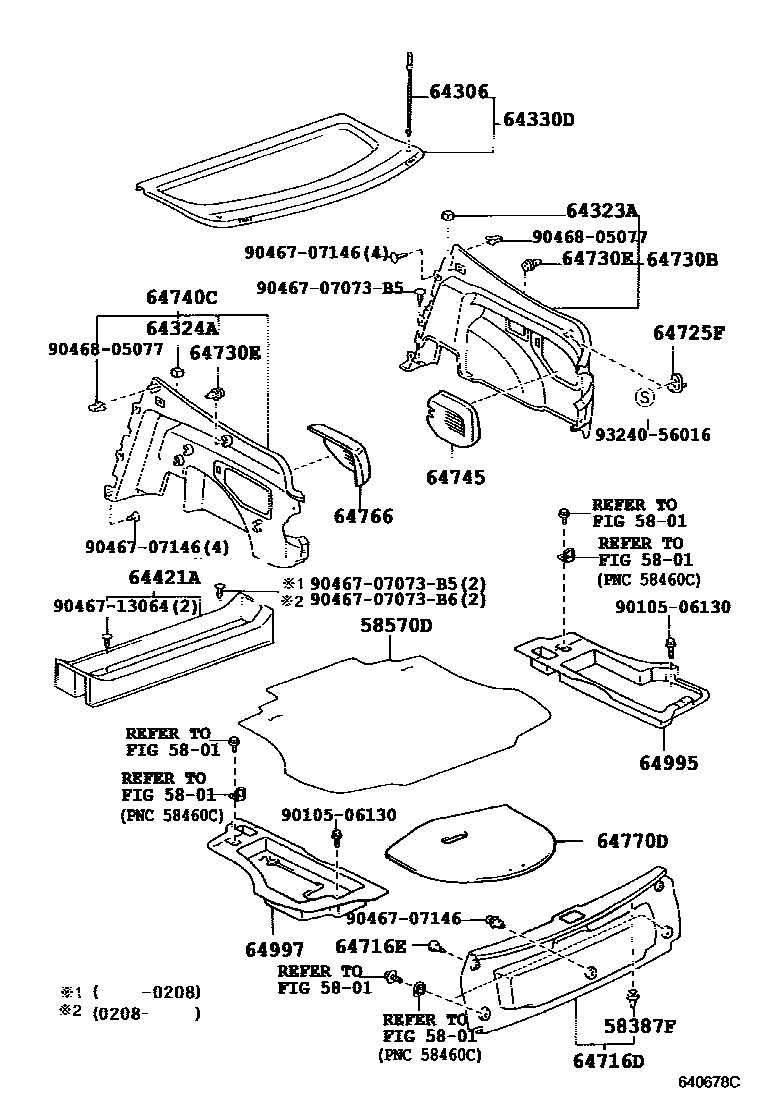

DECK BOARD & DECK TRIM COVER
5801
58387FCLIP, REAR FLOOR FINISH PLATE
58570DCARPET ASSY, REAR FLOOR
W(SPARE TIRE = TEMPORARY TIRE),AMETHYST,TRIM20,21,22,23
sub58570-20231
W(SPARE TIRE = TEMPORARY TIRE),DARK GRAY,TRIM20,21,22,23
sub58570-20231
W(SPARE TIRE = TEMPORARY TIRE),DARK GRAY,TRIM2#
W(SPARE TIRE = TEMPORARY TIRE),DARK GRAY,TRIM20,21,22,23
W(SPARE TIRE = GROUND TIRE),AMETHYST,TRIM20,21,22,23
sub58570-20251
W(SPARE TIRE = GROUND TIRE),DARK GRAY,TRIM20,21,22,23
sub58570-20251
W(SPARE TIRE = GROUND TIRE),DARK GRAY,TRIM20,21,22,23
W(SPARE TIRE = GROUND TIRE),DARK GRAY,TRIM2#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323ACLAMP, PACKAGE TRAY TRIM, RH
64324ACLAMP, PACKAGE TRAY TRIM, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
64421ATRAY, LUGGAGE COMPARTMENT
64716DCOVER, DECK TRIM, REAR
64716ECLIP(FOR DECK TRIM REAR COVER)
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64730BPANEL ASSY, DECK TRIM SIDE, RH
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
64745COVER, REAR COMBINATION LAMP SERVICE, RH
64766COVER SUB-ASSY, QUARTER TRIM JACK
64770DCOVER ASSY, SPARE WHEEL
W(SPARE TIRE = TEMPORARY TIRE)
W(SPARE TIRE = GROUND TIRE)
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
9010506130
main90105-06130
9046707073B5
main90467-07073B5
9046707073B6
main90467-07073B6
9046707146
main90467-07146
9046713064
main90467-13064
9046805077
main90468-05077
9324056016
main93240-56016
26 parts on this diagram · 1 diagram in section
