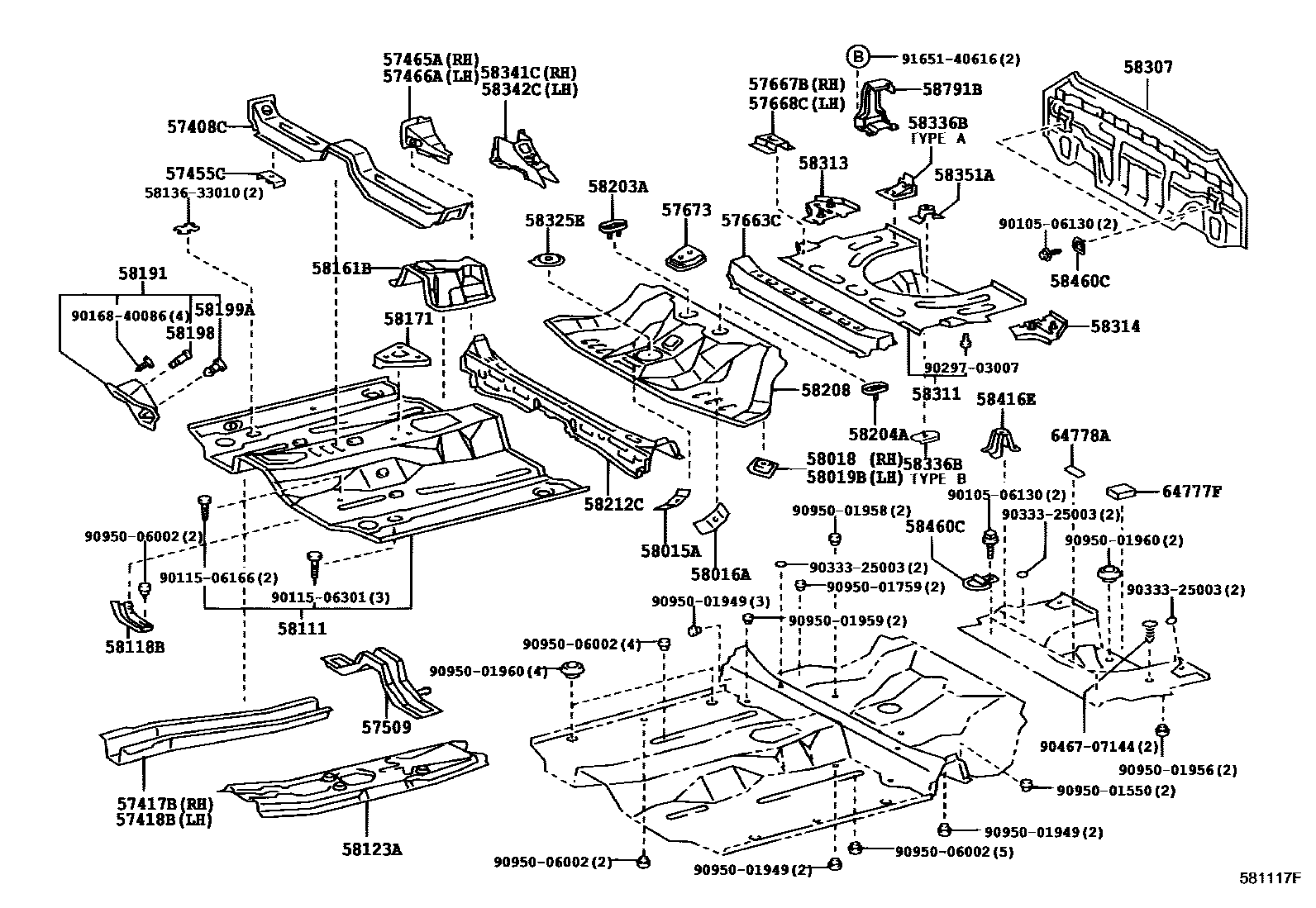

FLOOR PAN & LOWER BACK PANEL

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57451-20150i199908-200010

sub57451-20151

main57451-20151i200010-200507

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-47010i199908-200507

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-47010i199908-200507

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-20050i199908-200507

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-20090i199908-200507

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-20080i199908-200507

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-47010i199908-200507

57663CMEMBER, REAR FLOOR CROSS, CENTER

main57663-32010i199908-200507

57667BREINFORCEMENT, REAR FLOOR CROSSMEMBER, RH

main57667-20060i199908-200507

57668CREINFORCEMENT, REAR FLOOR CROSSMEMBER, LH

main57668-20040i199908-200507

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-20130i199908-200507

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-20110i199908-200208

main58015-20130i200208-200507

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20110i199908-200208

main58016-20130i200208-200507

58018REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 RH

main58018-20040i199908-200507

58019BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 LH

main58019-20040i199908-200507

58111PAN, FRONT FLOOR

main58111-20901i199908-200006

sub58111-20902

main58111-20902i200006-200010

sub58111-20903

main58111-20903i200010-200507

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-20010i199908-200006

main58118-20011i200006-200507

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20100i199908-200208

main58123-20101i200208-200507

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-20260i199908-200507

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-20150i199908-200208

main58171-20151i200208-200507

58191FOOTREST, FRONT FLOOR

main58192-20080i199908-200507

main58192-20090i199908-200507

W(ALUMINUM)

58198CLIP, FOOTREST

main58198-20210i199908-200507

58199ACLIP, FOOTREST, NO.2

main58198-20210i199908-200507

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58213-20120i199908-200507

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58214-20050i199908-200507

58208PAN, CENTER FLOOR

main58211-20510i199908-200208

main58211-20550i200208-200507

58212CPAN, CENTER FLOOR, FRONT

main58212-20120i199908-200507

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-2B260i199908-200507

58311PAN, REAR FLOOR

main58311-20901i199908-200507

58313PANEL, REAR FLOOR SIDE, RH

main58313-20400i199908-200507

58314PANEL, REAR FLOOR SIDE, LH

main58314-20900i199908-200507

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-20100i199908-200507

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12060i199908-200208

TYPE B:REFER TO ILLUSTRATION

main58336-12060i200208-200507

TYPE B:REFER ILLUST.

main58336-20040i199908-200507

TYPE A:REFER TO ILLUSTRATION

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-20050i199908-200507

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-20050i199908-200507

58351ABRACKET, SPARE WHEEL CARRIER

main58351-33010i199908-200507

58416EBRACKET, DECK BOARD, NO.1 RH

main58416-20010i199908-200507

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-20030i199908-200507

58791BCARRIER, JACK

main58791-20140i199908-200507

64777FCUSHION, SPARE WHEEL

main64777-20040i199908-200507

64778APROTECTOR, SPARE WHEEL

main64778-20080i199908-200507

sub64778-21010

5813633010COVER, FRONT FLOOR HOLE

main58136-33010

9010506130

main90105-06130

9011506166

main90115-06166

9011506301

main90115-06301

9016840086

main90168-40086

9029703007

main90297-03007

9033325003

main90333-25003

9046707144

main90467-07144

9095001550

main90950-01550

9095001759

main90950-01759

9095001949

main90950-01949

9095001956

main90950-01956

9095001958

main90950-01958

9095001959

main90950-01959

9095001960

main90950-01960

9095006002

main90950-06002

9165140616

main91651-40616

58 parts on this diagram · 1 diagram in section
