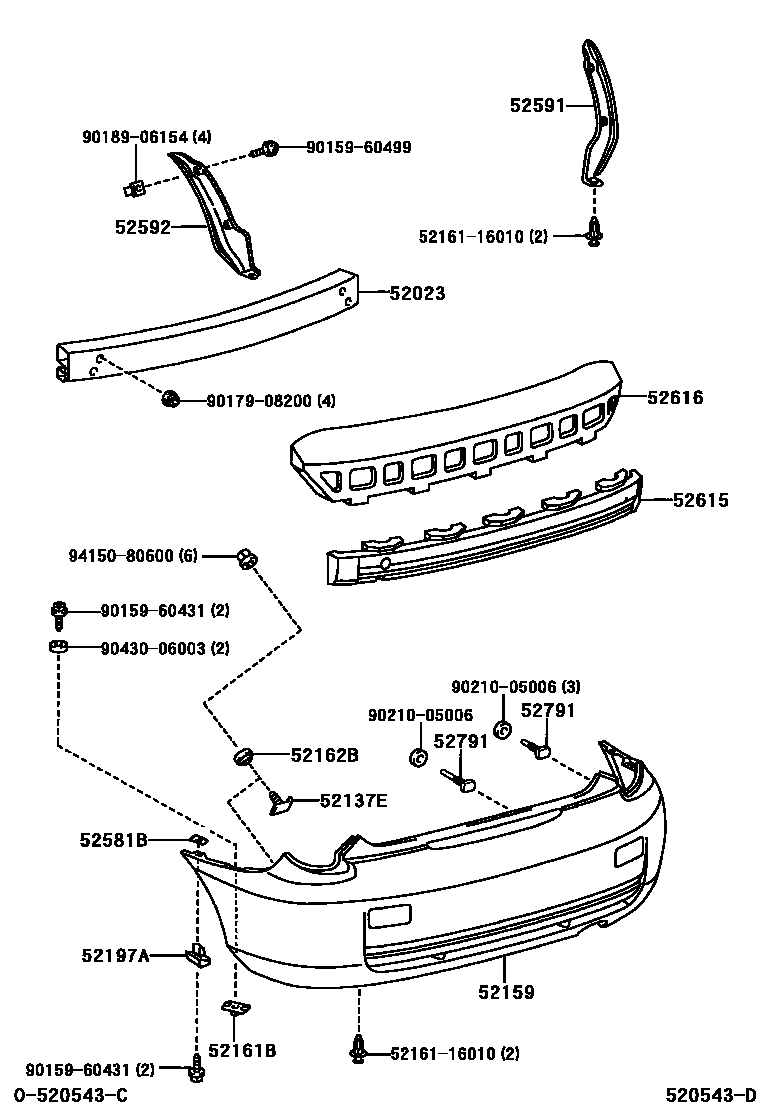

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52137EPLATE, REAR BUMPER BRACKET, NO.1
52159COVER, REAR BUMPER
52161BPIECE, REAR BUMPER
52162BPLATE, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52616ABSORBER, REAR BUMPER ENERGY, LH
52791BOLT, BUMPER MOULDING SET, NO.1
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
9015960431
main90159-60431
9015960499
main90159-60499
9017908200
main90179-08200
9018906154
main90189-06154
9021005006
main90210-05006
9043006003
main90430-06003
9415080600
main94150-80600
20 parts on this diagram · 1 diagram in section
