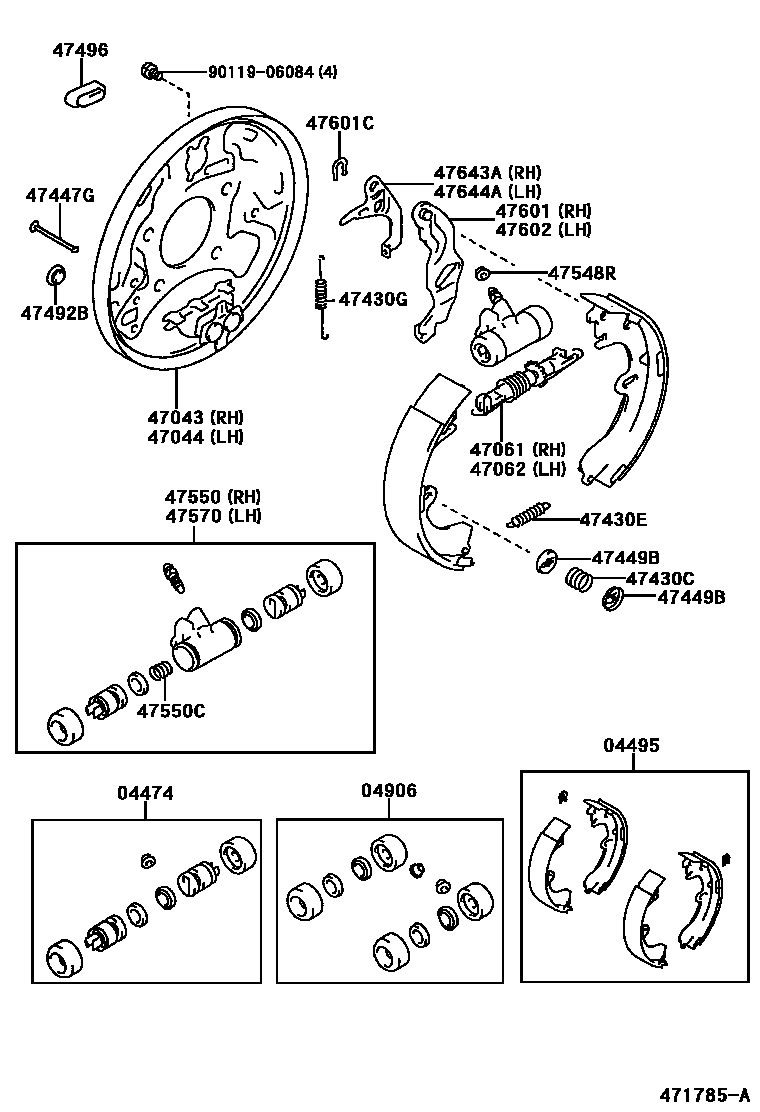

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-10032iZZT230199908-200103

sub04474-63020

main04474-63020iZZT230200103-200208

04495SHOE KIT, REAR BRAKE

main04495-47010iZZT230199908-200502

MARK AKB LA509A

main04495-52040iZZT230200502-200507

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iZZT230199908-200507

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140iZZT230200208-200507

main47043-47010iZZT230199908-200208

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140iZZT230200208-200507

main47044-47010iZZT230199908-200208

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-47010iZZT230199908-200208

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-47010iZZT230199908-200208

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20147iZZT230199908-200208

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14073iZZT230199908-200208

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-14072iZZT230199908-200208

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-11010iZZT230199908-200208

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iZZT230199908-200208

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iZZT230199908-200208

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iZZT230199908-200208

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iZZT230199908-200208

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20150iZZT230199908-200208

main47550-20211iZZT230200208-200507

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iZZT230200103-200208

main90501-07006iZZT230199908-200103

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20060iZZT230199908-200208

main47570-20101iZZT230200208-200507

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iZZT230199908-200507

sub47601-52100

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iZZT230199908-200208

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iZZT230199908-200507

sub47602-52100

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iZZT230199908-200507

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iZZT230199908-200507

9011906084

main90119-06084
