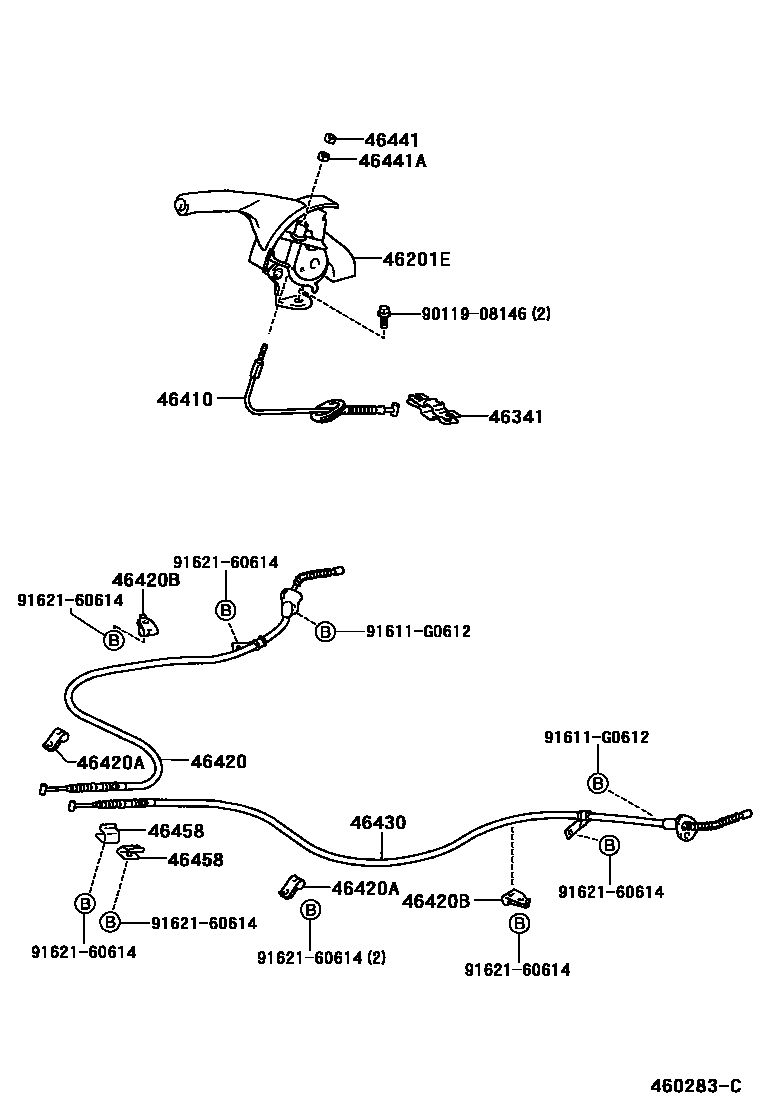

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20370-C0iZZT230199908-200507

BLACK,TRIM20,21,22,23

main46201-20370-C0iZZT230199908-200507

BLACK,TRIM2#

46341EQUALIZER, PARKING BRAKE

main46341-20070iZZT23#¥360199908-200507

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20450iZZT23#¥2,170199908-200507

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20380iZZT230¥5,100199908-200507

main46420-20460iZZT231¥5,100199908-200507

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B76iZZT23#¥320199908-200507

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B88iZZT23#¥430199908-200507

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20570iZZT230¥4,930199908-200507

main46430-20580iZZT231¥4,930199908-200507

46441NUT, WIRE ADJUSTING, NO.1

main90179-06058iZZT23#¥130199908-200208

sub90179-06299¥70

main90179-06299iZZT23#¥70200208-200507

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iZZT23#¥160200107-200507

main90179-06164iZZT23#¥130199908-200107

sub90179-06171¥100

46458RETAINER, CABLE

main46458-28010iZZT23#¥190199908-200507

9011908146

main90119-08146¥200

91611G0612

main91611-G0612¥70

9162160614

main91621-60614¥120

13 parts on this diagram · 2 diagrams in section
