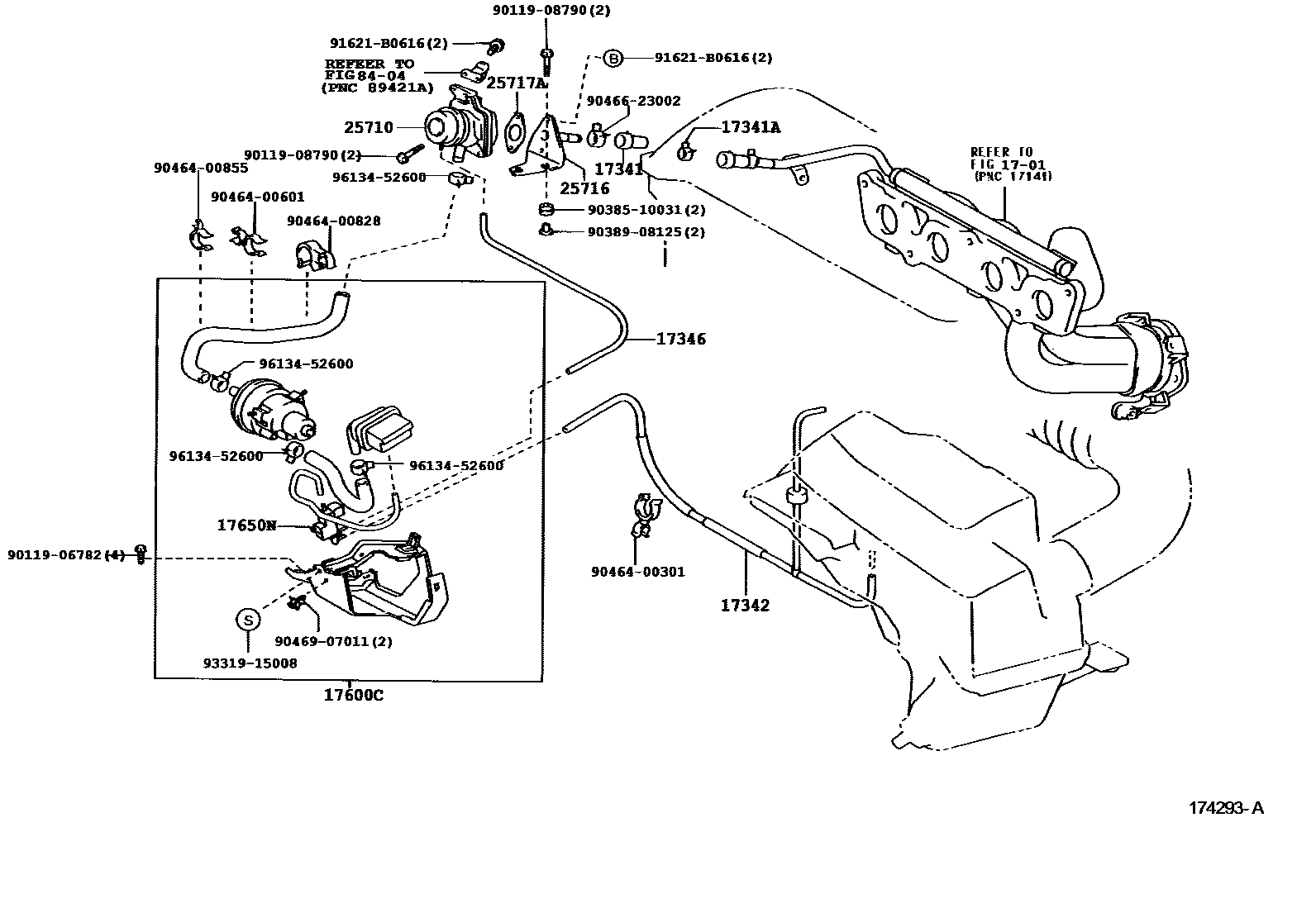

MANIFOLD AIR INJECTION SYSTEM

1701

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-88600i2ZZGE..ZZT231200308-200507

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-21010i2ZZGE..ZZT231200308-200507

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17308-22030i2ZZGE..ZZT231200308-200403

main17308-22031i2ZZGE..ZZT231200403-200507

17346HOSE, NO.6(FOR AIR INJECTION SYSTEM)

main17346-22020i2ZZGE..ZZT231200308-200507

17600CPUMP ASSY, AIR

main17600-22010i2ZZGE..ZZT231200308-200403

sub17600-22011

sub17308-22031

main17600-22011i2ZZGE..ZZT231200403-200507

17650NVALVE, VACUUM SWITCHING

main90910-12059i2ZZGE..ZZT231200308-200507

25710VALVE ASSY, AIR SWITCHING

main25710-22020i2ZZGE..ZZT231200308-200507

25716BRACKET, AIR SWITCHING VALVE

main25716-22010i2ZZGE..ZZT231200308-200507

25717AGASKET, AIR SWITCHING VALVE

main25717-22010i2ZZGE..ZZT231200308-200507

8404

9011906782

main90119-06782

9011908790

main90119-08790

9038510031

main90385-10031

9038908125

main90389-08125

9046400301

main90464-00301

9046400601

main90464-00601

9046400828

main90464-00828

9046400855

main90464-00855

9046623002

main90466-23002

9046907011

main90469-07011

91621B0616

main91621-B0616

9331915008

main93319-15008

9613452600

main96134-52600

24 parts on this diagram · 1 diagram in section
