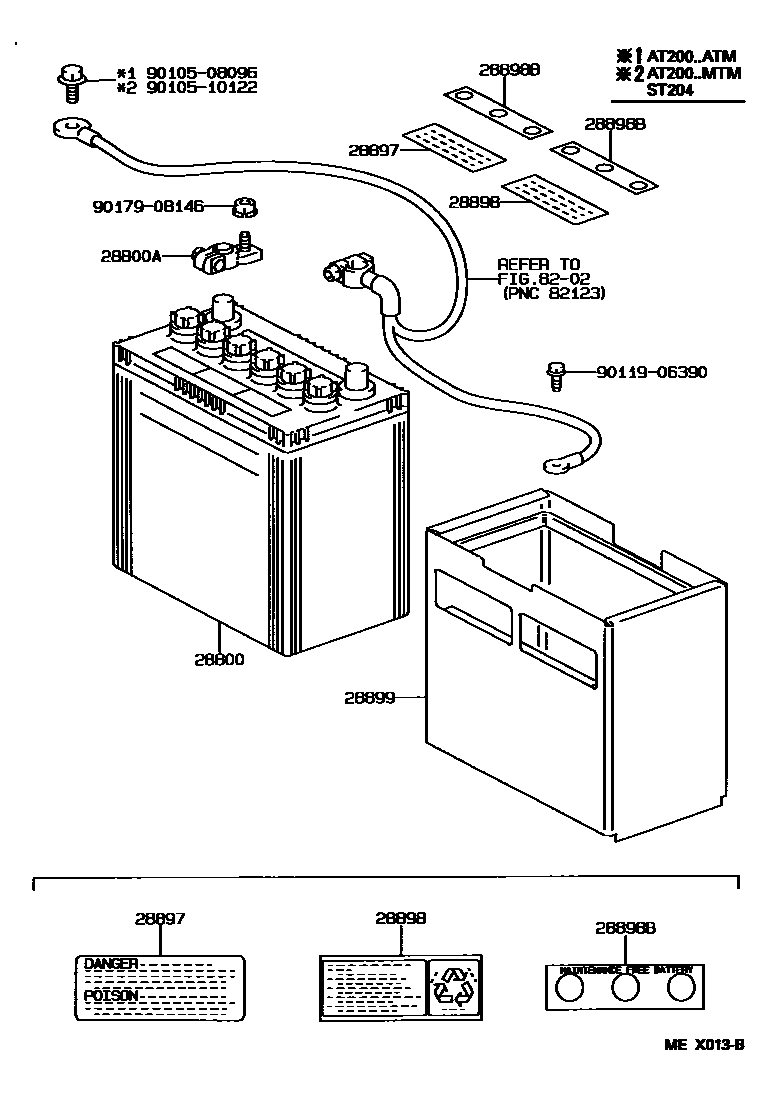

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16130i7AFE..AT200..USA199508-199712

32B24L(S)

sub28800-74261

main28800-16141i7AFE,5SFE..AT200,ST204..(CP,LB)..USA199610

55D23L

main28800-31010i7AFE..AT200..USA199309-199508

32C24L

sub28800-20060

main28800-43261i7AFE..AT200;5SFE..ST204..(CP,LB)..USA199309-199610

55D23L

main28800-43262i7AFE,5SFE..AT200,ST204..(CP,LB)..USA199610

55D23L

main28800-74180i5SFE..ST204199309-199610

65D23L

main28800-74181i5SFE..ST204199610

65D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i7AFE,5SFE..AT200,ST204199309-199709

main90982-05035i7AFE,5SFE..AT200,ST204199709

28897PLATE, BATTERY CAUTION

main28897-26010i7AFE..AT200..USA199309-199508

main28897-38010i7AFE,5SFE..AT200,ST204..CND199309-199610

main28897-46020i5SFE..ST204..CND199610

28898PLATE, BATTERY

main28898-26010i7AFE,5SFE..AT200,ST204..USA199309-199712

28898BPLATE, BATTERY

main28898-11020i7AFE,5SFE..AT200,ST204199309

28899INSULATOR, BATTERY

main28899-46020i7AFE..AT200..USA199601-199712

W(BATTERY=32B24L)

main28899-74120i7AFE..AT200..USA199309-199508

W(BATTERY=32C24L)

main28899-74130i7AFE,5SFE..AT200,ST204199309-199510

sub28899-46060

main28899-74160i7AFE..AT200..USA199508-199601

W(BATTERY=32B24L)

main28899-74170i7AFE,5SFE..AT200,ST204..CP,LB199508-199510

8202

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9017908146

main90179-08146

11 parts on this diagram · 1 diagram in section
