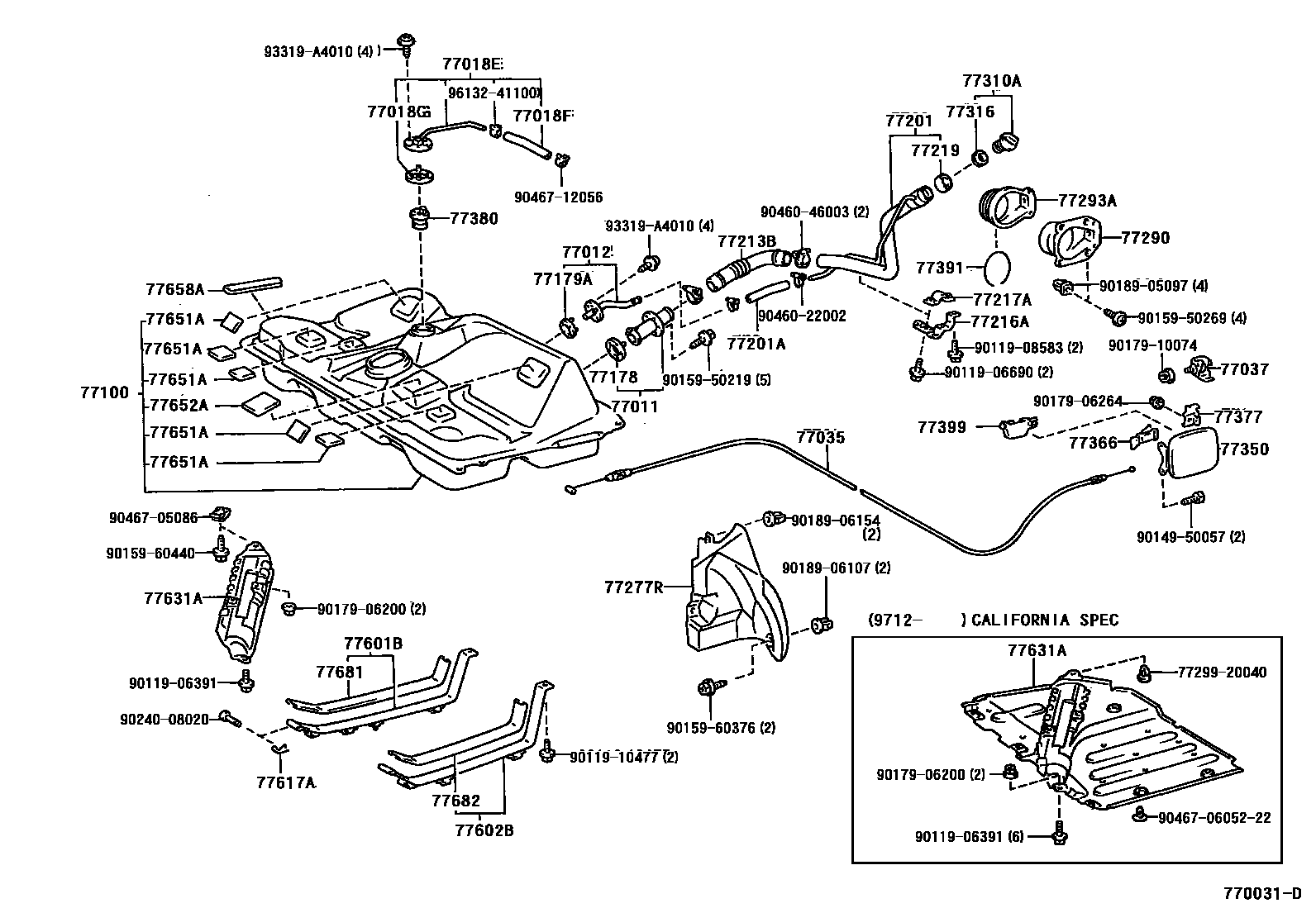

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1CALIFORNIA SPEC

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20050iAT200,ST204199309-199808

main77011-20060iST204..CND199808

main77011-20060iST204..USA199712

CALIFORNIA SPEC

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-20110iAT200,ST204199309

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-20200iAT200,ST204199309-199808

main77018-20220iST204..USA199712

CALIFORNIA SPEC

main77018-20220iST204..CND199808

77018FHOSE, FUEL TANK EVAPORATION VENT

main77279-20010iST204199712-199808

main95333-06020iAT200,ST204199312-199808

*H,L=140

sub95337-06020

main95333-06020iAT200,ST204199309-199312

*H,L=130

sub95337-06020

77018GGASKET, FUEL TANK EVAP/VENT TUBE

main77179-26010iAT200,ST204199309

sub77179-26011

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20470iAT200,ST204199309

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20070iAT200,ST204199309-199407

main77037-20100iAT200,ST204199408

77100TANK ASSY, FUEL

main77001-20941iAT200,ST204199309

sub77001-20946

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT200,ST204199309

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iAT200,ST204199309

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20490iAT200,ST204199309-199712

sub77201-20570

main77201-20590iST204199712-199908

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13016iST204199712-199808

L=160

main95311-13017iAT200,ST204199309-199712

L=170

main95312-13016iST204..USA199712

L=160,CALIFORNIA SPEC

main95312-13016iST204..CND199808

L=160

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-20110iAT200,ST204199309-199808

main77213-20160iST204..USA199712

CALIFORNIA SPEC

main77213-20160iST204..CND199808

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-20150iAT200,ST204199309-199808

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-20040iST204..CND199309-199808

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iAT200,ST204199309-199808

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20240iAT200,ST204199309

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20160iAT200,ST204199309-199401

sub77290-20161

main77290-20161iAT200,ST204199401

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20100iAT200,ST204199309

77310ACAP ASSY, FUEL TANK

main77310-12140iAT200,ST204199309-199803

main77310-48020iST204199803

77316GASKET, FUEL TANK CAP

main77316-16010iAT200,ST204199309

77350LID ASSY, FUEL FILLER OPENING

main77350-20240iAT200,ST204..LB199309

main77350-20250iAT200,ST204..CP,CVT199309

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iAT200,ST204199309

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iAT200,ST204199309

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iAT200,ST204199309

77391RING, FUEL INLET BOX

main77391-14020iAT200,ST204199309

77399HANGER, FUEL TANK CAP

main77399-20010iAT200,ST204199309

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20180iAT200,ST204199309-199808

main77601-20190iST204..CND199808

main77601-20190iST204..USA199712

CALIFORNIA SPEC

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20210iAT200,ST204199309-199808

main77602-20220iST204..USA199712

CALIFORNIA SPEC

main77602-20220iST204..CND199808

77617AUNION, AUXILIARY FUEL BAND

main77617-12010iAT200,ST204199309-199808

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-20080iAT200,ST204199309-199808

main77631-20100iST204..USA199712

CALIFORNIA SPEC

main77631-20100iST204..CND199808

77651ACUSHION, FUEL TANK, NO.1

main77652-12100iAT200,ST204199309-199312

77652ACUSHION, FUEL TANK, NO.2

main77652-20110iAT200,ST204199309-199408

sub77652-33010

main77652-33010iAT200,ST204199408-199510

sub77652-20110

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-20020iAT200,ST204199309-199510

77681SEAT, FUEL TANK BAND, RH

main77681-32060iAT200,ST204199309-199808

77682SEAT, FUEL TANK BAND, LH

main77681-32060iST204..CND199309-199808

7729920040CLAMP, FUEL TUBE W/GROMMET, NO.5

main77299-20040

9011906391

main90119-06391

9011906690

main90119-06690

9011908583

main90119-08583

9011910477

main90119-10477

9014950057

main90149-50057

9015950219

main90159-50219

9015950269

main90159-50269

9015960376

main90159-60376

9015960440

main90159-60440

9017906200

main90179-06200

9017906264

main90179-06264

9017910074

main90179-10074

9018905097

main90189-05097

9018906107

main90189-06107

9018906154

main90189-06154

9024008020

main90240-08020

9046022002

main90460-22002

9046046003

main90460-46003

9046705086

main90467-05086

904670605222

main90467-0605222

9046712056

main90467-12056

93319A4010

main93319-A4010

9613241100

main96132-41100

60 parts on this diagram · 4 diagrams in section
