SIDE MEMBER
61021CPILLAR SUB-ASSY, FRONT BODY, RH
W(SIDE MUDGUARD)
61022CPILLAR SUB-ASSY, FRONT BODY, LH
W(SIDE MUDGUARD)
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61128CREINFORCEMENT, COWL SIDE PANEL, NO.2 LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61233ARAIL, ROOF SIDE, INNER NO.2 RH
61234ARAIL, ROOF SIDE, INNER NO.2 LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH
61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61623BTROUGH, BACK DOOR OPENING, REAR RH
61624BTROUGH, BACK DOOR OPENING, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61824PLATE, NOISE CONTROL, NO.1
FOR SUN ROOF DRAIN
FOR SUN ROOF DRAIN
FOR SEAT BELT
62151BPAD, COWL SIDE SILENCER
9033335001
main90333-35001
9095001266
main90950-01266
9095001327
main90950-01327
9095001392
main90950-01392
9095001580
main90950-01580

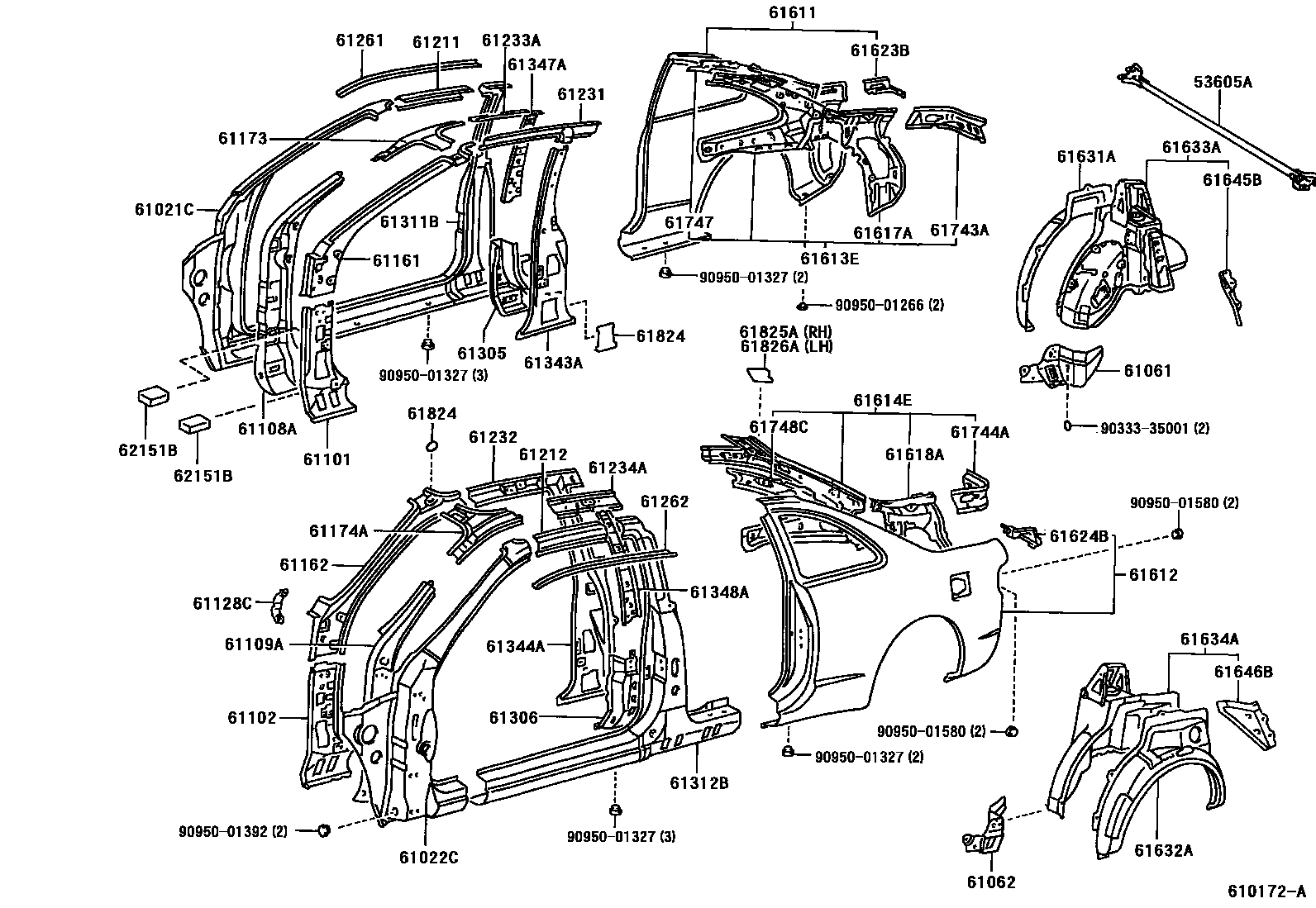

57 parts on this diagram · 3 diagrams in section
