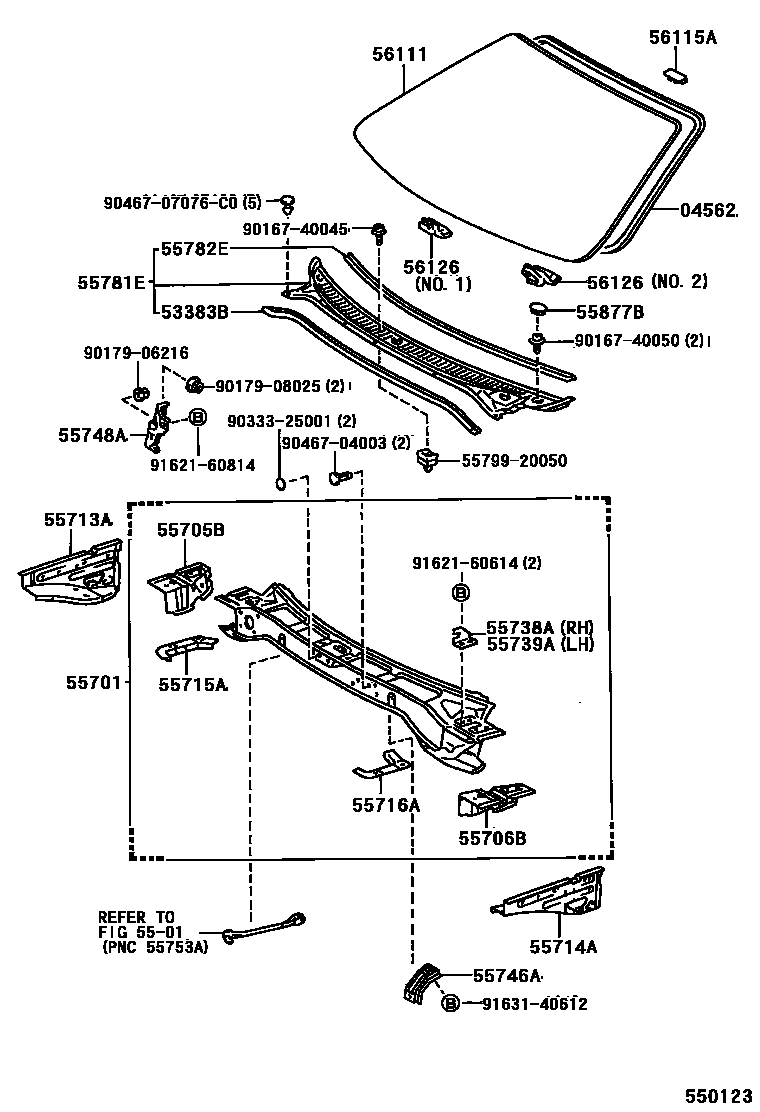

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAT200,ST204199309

53383BSEAL, HOOD TO COWL TOP

main53383-20170iAT200,ST204199309

5501

55701PANEL SUB-ASSY, COWL

main55700-2B070iAT200,ST204199309

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-20110iAT200,ST204199309

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-20130iAT200,ST204199309

55713APANEL, COWL TOP SIDE, RH

main55713-20140iAT200,ST204199309

55714APANEL, COWL TOP SIDE, LH

main55714-20150iAT200,ST204199309

55715ABRACE, COWL TOP TO APRON, RH

main55715-20130iAT200,ST204199309

55716ABRACE, COWL TOP TO APRON, LH

main55716-20100iAT200,ST204199309

55738ASTOPPER, HOOD, RH

main55738-20070iAT200,ST204199309

55739ASTOPPER, HOOD, LH

main55739-20070iAT200,ST204199309

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-20110iAT200,ST204199309

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-20160iAT200,ST204199309

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20200iAT200,ST204..(CP,LB)..USA199309

W(REAR HEATER DUCT)

sub55708-20220

main55708-20220iAT200,ST204199309

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-20110iAT200,ST204199309

55877BCOVER, COWL VENT, RH

main55877-16020iAT200,ST204199309

56111GLASS, WINDSHIELD

main56111-0W080iAT200,ST204..CND199405-199508

*TL,T=4.76,GREEN

main56111-2B370iST204..CVT199309-199510

*TL,T=4.76,BLUE

sub56111-2B530

main56111-2B530iAT200,ST204..CP,LB199508-199510

*TL,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20080iAT200,ST204199309

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-20040iAT200,ST204199309

NO.2

main56127-20010iAT200,ST204199309

NO.1

5579920050COVER, WIPER MOTOR

main55799-20050

9016740045

main90167-40045

9016740050

main90167-40050

9017906216

main90179-06216

9017908025

main90179-08025

9033325001

main90333-25001

9046704003

main90467-04003

9046707076C0

main90467-07076C0

9162160614

main91621-60614

9162160814

main91621-60814

9163140612

main91631-40612

31 parts on this diagram · 1 diagram in section
