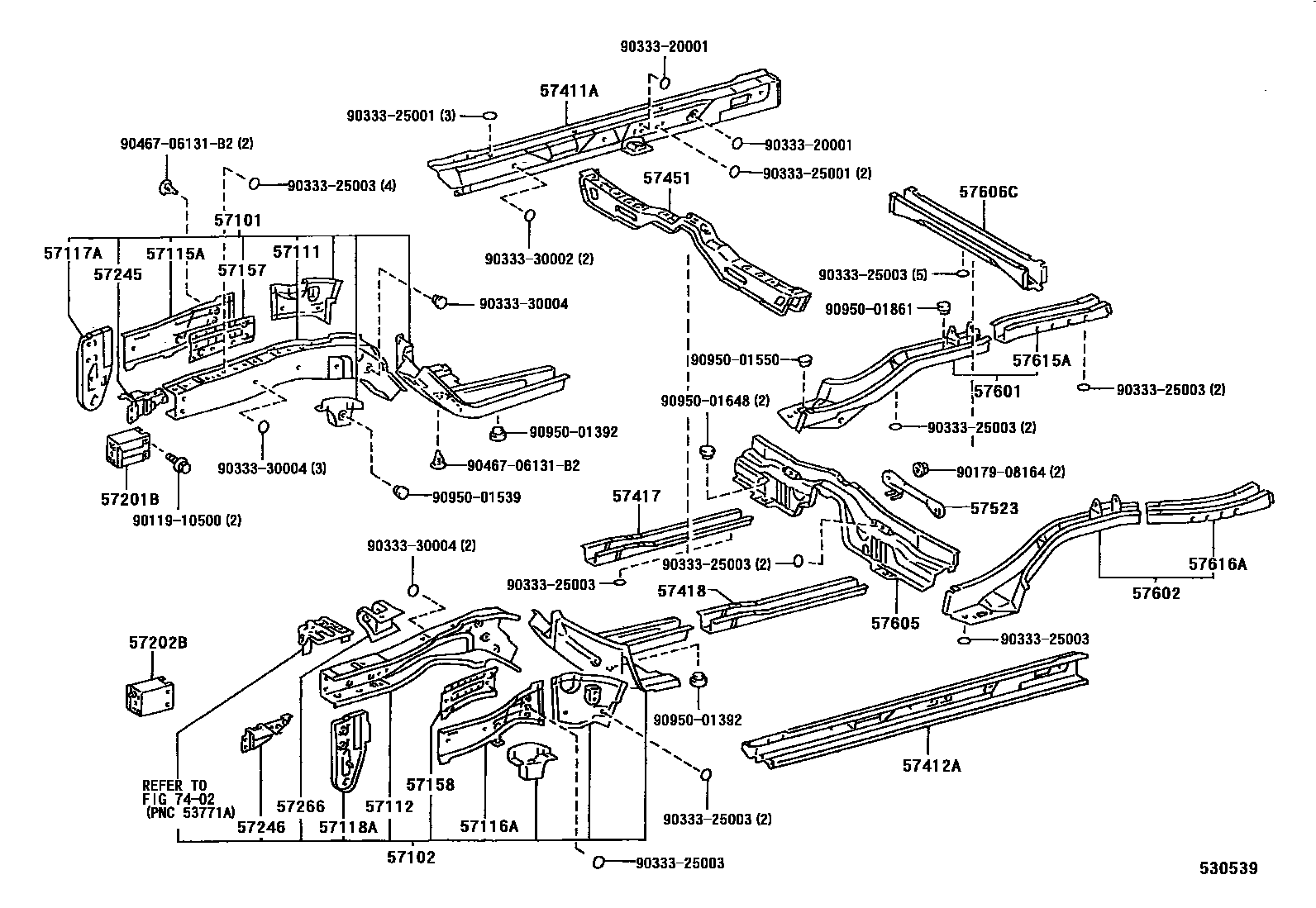

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20780iST204199309

main57101-20790iAT200199309-199712

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20800iST204199309

main57102-20810iAT200199309-199712

57111MEMBER, FRONT SIDE, RH

main57111-20240iAT200,ST204199309

57112MEMBER, FRONT SIDE, LH

main57112-20250iAT200,ST204199309

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20170iAT200,ST204199309

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20190iAT200,ST204199309

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-20100iAT200,ST204199309

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-20060iAT200,ST204199309

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-20090iAT200,ST204199309

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-20090iAT200,ST204199309

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-20040iAT200,ST204199309

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-20050iAT200,ST204199309

57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH

main57245-20020iAT200,ST204199309

57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH

main57246-20020iAT200,ST204199309

57266REINFORCEMENT, TOUSION BAR ANCHOR ARM, LH

main57266-20150iST204199309

main57266-20160iAT200199309-199712

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-20310iAT200,ST204..CP,LB199309-199508

sub57401-20340

main57401-20330iST204..CVT199408-199510

sub57401-20380

main57401-20340iAT200,ST204..CP,LB199508

main57401-20380iST204..CVT199510

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-20340iAT200,ST204..CP,LB199309-199508

sub57402-20370

main57402-20360iST204..CVT199408-199510

sub57402-20410

main57402-20370iAT200,ST204..CP,LB199508

main57402-20410iST204..CVT199510

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20090iAT200,ST204199309

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20090iAT200,ST204199309

57451MEMBER, FRONT FLOOR CROSS

main57408-20901iAT200,ST204199309

57523BRACE, CENTER FLOOR CROSSMEMBER

main57503-20020iAT200,ST204199309

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20430iAT200,ST204199309-199808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20420iAT200,ST204199309-199808

57605CROSSMEMBER SUB-ASSY, REAR

main57605-20110iAT200,ST204199309-199510

sub57605-20130

sub90333-25003

main57605-20130iAT200,ST204..CP,LB199508-199808

sub57605-20160

main57605-20160iST204..ST199712-199808

CALIFORNIA SPEC

main57605-20160iST204199808

main57605-20170iST204..GT..USA199712

CALIFORNIA SPEC

sub57605-20160

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20180iAT200,ST204199309-199808

main57606-20220iST204199808

main57606-20220iST204..USA199712-199808

CALIFORNIA SPEC

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20910iAT200,ST204199309-199808

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-20909iAT200,ST204199309-199808

7402

9011910500

main90119-10500

9017908164

main90179-08164

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330002

main90333-30002

9033330004

main90333-30004

9046706131B2

main90467-06131B2

9095001392

main90950-01392

9095001539

main90950-01539

9095001550

main90950-01550

9095001648

main90950-01648

9095001861

main90950-01861

41 parts on this diagram · 1 diagram in section
