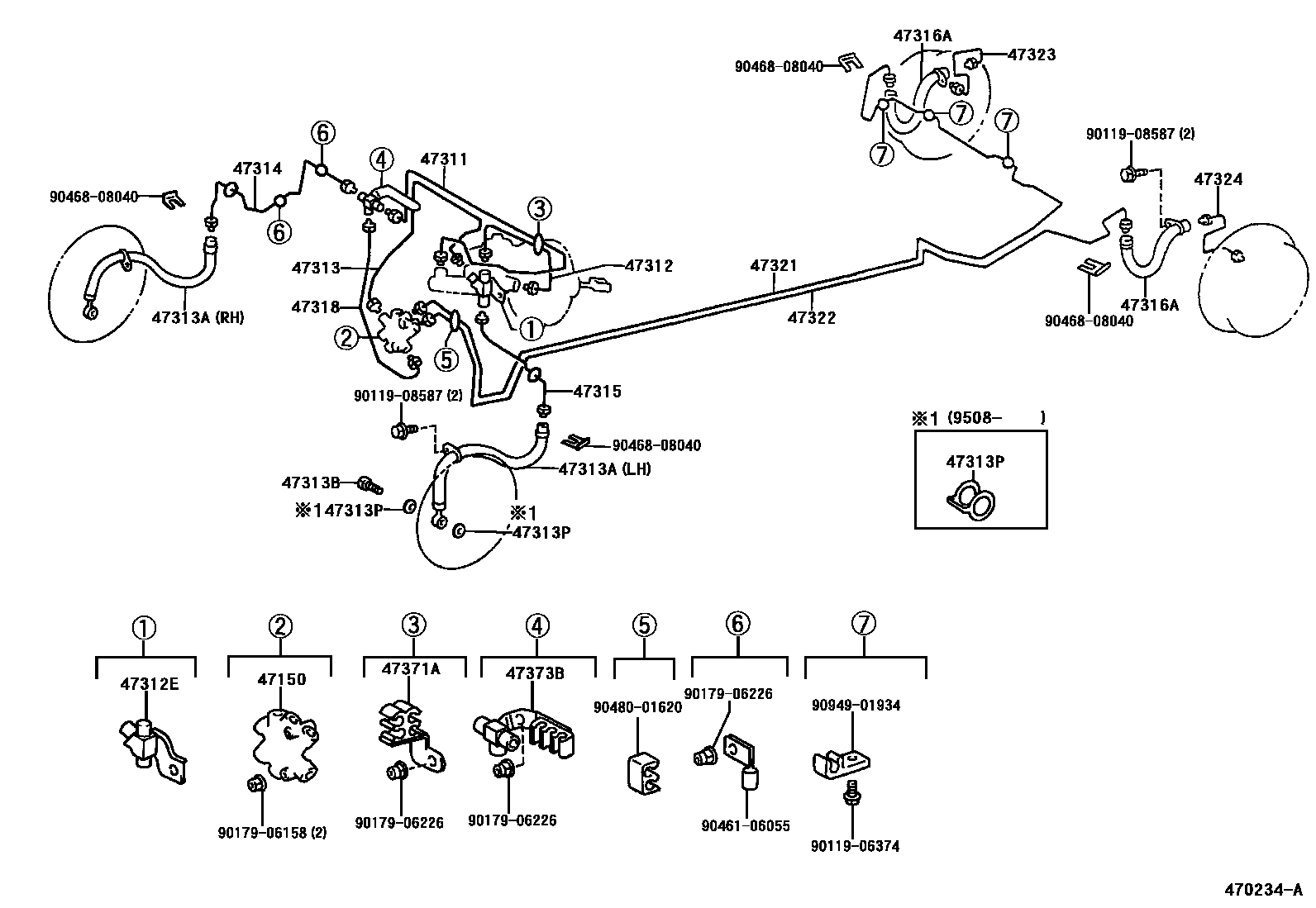

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1W(ABS) 0005 1W(ABS) 0006 1W(ABS) 0007 1W(ABS) 0008 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-20240iST204199412

main47150-20280iAT200199412-199712

main47150-20290iST204199309-199407

sub47150-20240

main47150-20310iAT200199309-199407

sub47150-20280

main47150-20370iAT200199309-199412

W(ABS)

sub47150-20280

main47150-20380iST204199309-199412

W(ABS)

sub47150-20240

47311TUBE, FRONT BRAKE, NO.1

main47311-2B090iAT200,ST204199309

main47311-2B110iAT200,ST204199309-199606

W(ABS)

main47311-2B170iAT200,ST204199606

W(ABS)

47312TUBE, FRONT BRAKE, NO.2

main47311-2B120iAT200,ST204199309

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12015iAT200,ST204199309

W(ABS)

main90904-13009iAT200,ST204199309

47313TUBE, FRONT BRAKE, NO.3

main47313-20700iAT200,ST204199309

main47313-20720iAT200,ST204199309-199606

W(ABS)

main47313-20770iAT200,ST204199606

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02761iAT200,ST204199309-199510

RH

sub90947-02847

main90947-02762iAT200,ST204199309-199510

LH

sub90947-02848

main90947-02847iAT200,ST204..CP,LB199508-199510

RH

main90947-02848iAT200,ST204199508-199510

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iAT200,ST204199309-199503

main90401-10058iAT200,ST204199503

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iST204..CVT199309-199510

main47389-50020iAT200,ST204199508-199510

47314TUBE, FRONT BRAKE, NO.4

main47314-20590iAT200,ST204199309

main47314-20610iAT200,ST204199309-199606

W(ABS)

main47314-20650iAT200,ST204199606

W(ABS)

47315TUBE, FRONT BRAKE, NO.5

main47315-20640iAT200,ST204199309

47316TUBE, FRONT BRAKE, NO.6

main47316-20560iAT200,ST204199309-199606

main47316-20590iAT200,ST204199606

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02769iST204..CVT199309-199510

sub90947-02852

main90947-02770iAT200199309-199508

sub90947-02851

main90947-02851iAT200199508-199712

main90947-02852iST204..CP,LB199508-199510

47318TUBE, FRONT BRAKE, NO.8

main47318-20340iAT200,ST204199309-199606

W(ABS)

main47318-20350iAT200,ST204199309

main47318-20390iAT200,ST204199606

W(ABS)

47321TUBE, REAR BRAKE, NO.1

main47321-20380iAT200,ST204199309

47322TUBE, REAR BRAKE, NO.2

main47322-20490iAT200,ST204199309

47323TUBE, REAR BRAKE, NO.3

main47323-20150iAT200199309-199712

47324TUBE, REAR BRAKE, NO.4

main47324-20150iAT200199309-199712

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20440iAT200,ST204199309-199606

W(ABS)

main47371-20530iAT200,ST204199309

47373BCLAMP, BRAKE TUBE, NO.3

main47371-20540iAT200,ST204199309

9011906374

main90119-06374

9011908587

main90119-08587

9017906158

main90179-06158

9017906226

main90179-06226

9046106055

main90461-06055

9046808040

main90468-08040

9048001620

main90480-01620

9094901934

main90949-01934
