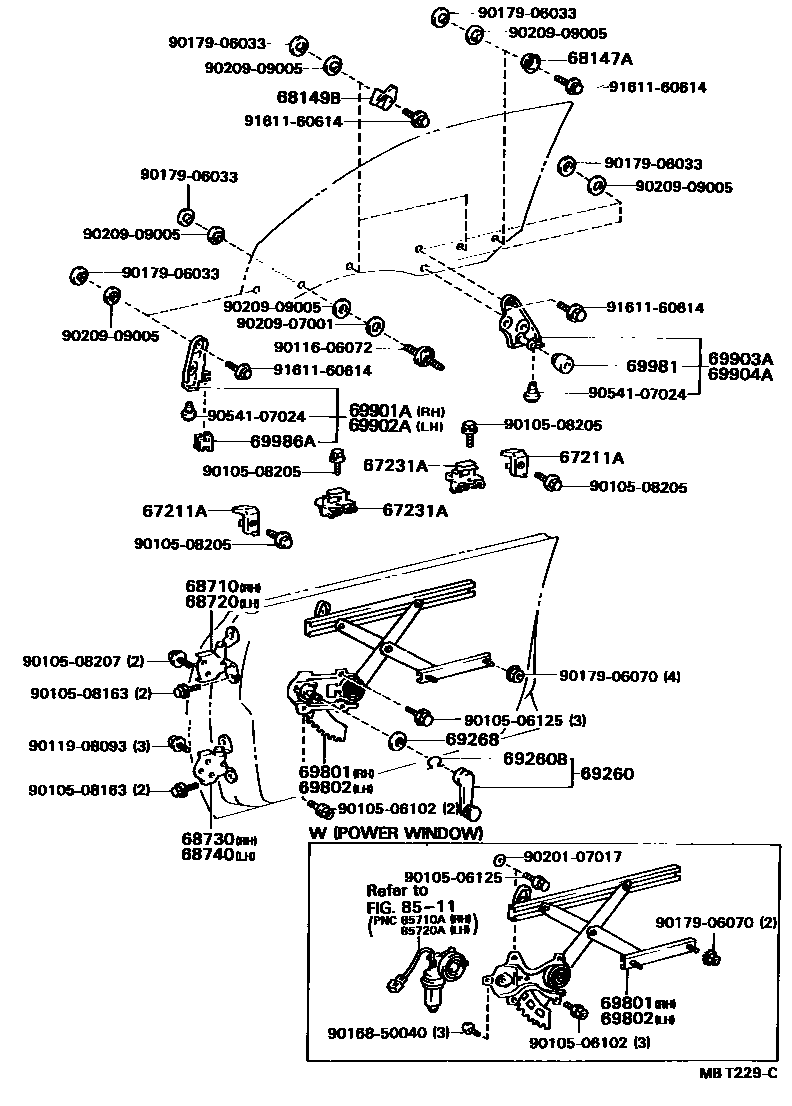

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-20030iAT180,ST18#198909-199105

STAMPED NO.2

sub67211-20120

main67211-20050iAT180,ST18#198909-199105

STAMPED NO.1

sub67211-20120

main67211-20060iAT180,ST18#198909-199105

STAMPED NO.3

sub67211-20120

main67211-20100iST184..CVT199006-199010

STAMPED NO.4

sub67211-20120

main67211-20120iAT180,ST18#199105-199309

STAMPED NO.1

main67211-20120iST184..CVT199010-199309

main67211-20120iAT180,ST18#199109-199309

STAMPED N0.3

67231ASUPPORT, FRONT DOOR TRIM

main67231-20050iAT180,ST18#198909-199004

STAMPED NO.1

sub67231-20051

main67231-20051iAT180,ST18#199109-199309

STAMPED N0.1

main67231-20051iAT180,ST18#199004-199109

STAMPED NO.1

main67231-20060iAT180,ST18#198909-199004

STAMPED NO.2

sub67231-20061

main67231-20061iAT180,ST18#199004-199109

STAMPED NO.2

sub67231-20051

main67231-20061iAT180,ST18#199109-199309

STAMPED N0.2

sub67231-20051

main67231-20070iAT180,ST18#198909-199004

STAMPED NO.3

sub67231-20071

main67231-20071iAT180,ST18#199109-199309

STAMPED N0.3

sub67231-20051

main67231-20071iAT180,ST18#199004-199109

STAMPED NO.3

sub67231-20051

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-14020iAT180,ST18#198909-199309

68149BSTABILIZER, FRONT DOOR GLASS MALE

main68149-20010iAT180,ST18#198909-199008

main68149-20020iAT180,ST18#199008-199208

main68149-20030iAT180,ST18#199208-199309

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20100iAT180,ST18#198909-199309

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20090iAT180,ST18#198909-199309

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20120iAT180,ST18#198909-199309

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20120iAT180,ST18#198909-199309

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-13iST184..CVT198909-199109

SHADOW GRAY,TRIM1#

sub69260-22030

main69260-22030-14iAT180,ST184..CP,LB198909-199309

DARK BLUE,TRIM8#

sub69260-22030

main69260-22030-42iAT180,ST184..CP,LB198909-199008

RED,TRIM3#

sub69260-22030

main69260-22030-46iAT180,ST184..CP,LB199008-199108

CHOCOLATE BROWN,TRIM4#

sub69260-22030

main69260-22030-P0iAT180,ST184..CP,LB199108-199309

SHADOW GRAY,TRIM1#

sub69260-22030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAT180,ST184198909-199309

sub90520-01274

69268PLATE, WINDOW REGULATOR HANDLE

main69268-20020iAT180,ST184198909-199309

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20170iST185198910-199309

main69801-20170iST184198909-199309

W(POWER WINDOW)

main69810-20220iAT180,ST184198909-199309

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20190iST184198909-199309

W(POWER WINDOW)

main69802-20190iST185198910-199309

main69820-20240iAT180,ST184198909-199309

69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20160iAT180,ST18#198909-199309

69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH

main69902-20080iAT180,ST18#198909-199309

69903ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH

main69903-20090iAT180,ST18#198909-199309

69904ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH

main69904-20070iAT180,ST18#198909-199309

69981ROLLER, FRONT DOOR GLASS GUIDE

main69981-14020iAT180,ST18#198909-199309

69986APIECE, FRONT DOOR GLASS GUIDE

main69986-20020iAT180,ST18#198909-199309

8511

9010506102

main90105-06102

9010506125

main90105-06125

9010508163

main90105-08163

9010508205

main90105-08205

9010508207

main90105-08207

9011606072

main90116-06072

9011908093

main90119-08093

9016850040

main90168-50040

9017906033

main90179-06033

9017906070

main90179-06070

9020107017

main90201-07017

9020907001

main90209-07001

9020909005

main90209-09005

9054107024

main90541-07024

9161160614

main91611-60614

35 parts on this diagram · 1 diagram in section
