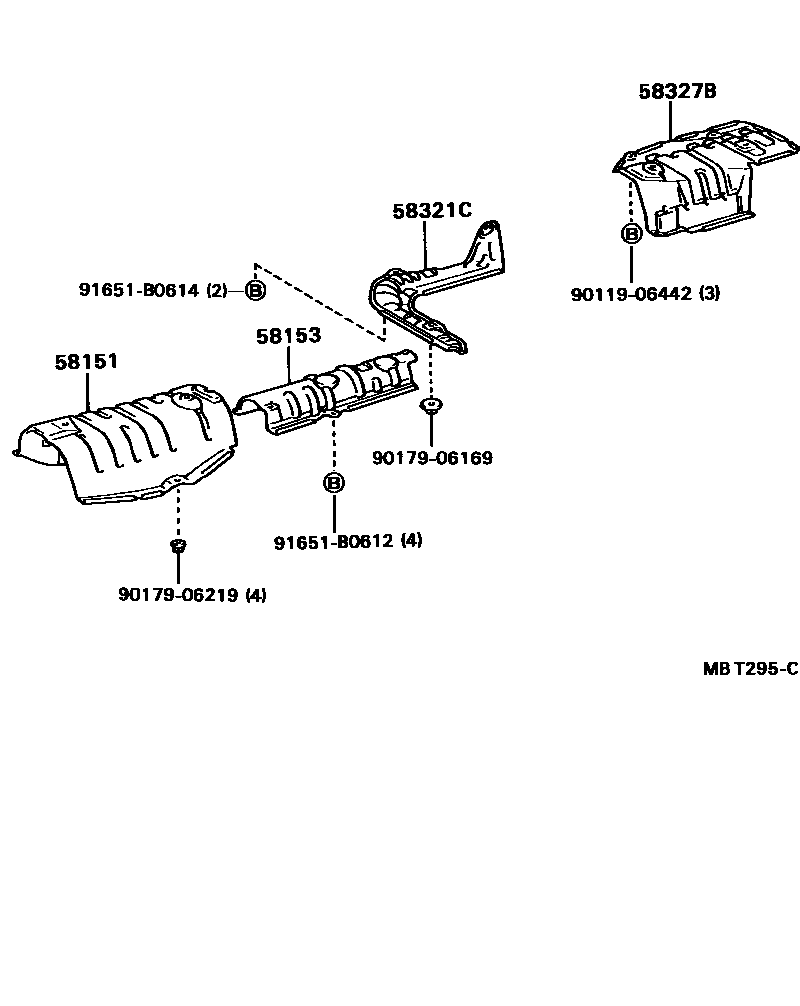

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-20040iST185198910-199309

main58151-20060iAT180198909-199309

CALIFORNIA SPEC

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20070iAT180198909-199309

58321CINSULATOR, REAR FLOOR HEAT, FRONT

main58321-20040iST185198910-199309

main58321-20060iAT180,ST184198909-199309

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-20040iST185198910-199309

main58327-20060iAT180,ST184198909-199309

9011906442

main90119-06442

9017906169

main90179-06169

9017906219

main90179-06219

91651B0612

main91651-B0612

91651B0614

main91651-B0614

9 parts on this diagram · 2 diagrams in section
