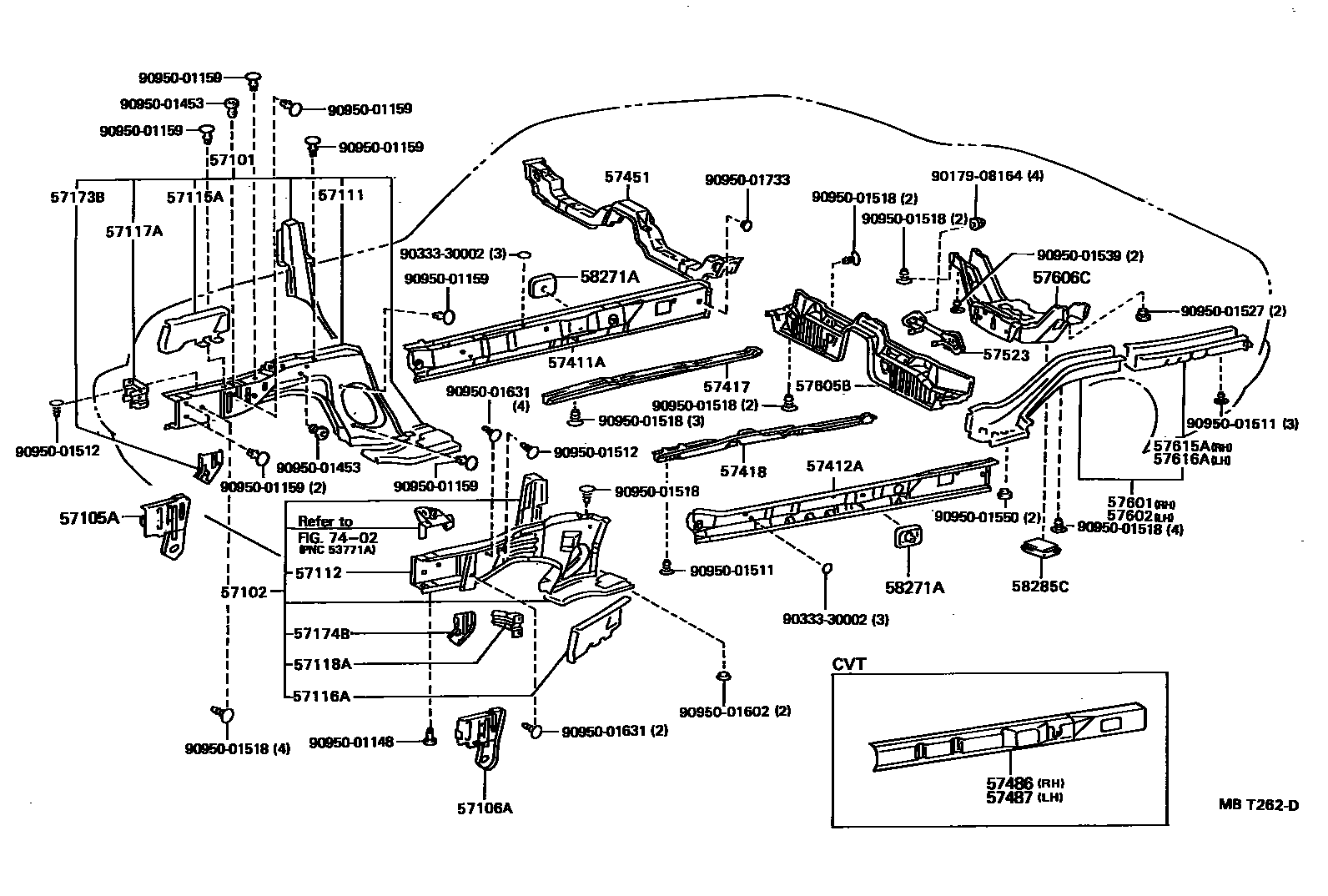

FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57173BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57174BREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57523BRACE, CENTER FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58285CCOVER, REAR FLOOR HOLE
7402
9017908164
9033330002
9095001148
9095001159
9095001453
9095001511
9095001512
9095001518
9095001527
9095001539
9095001550
9095001602
9095001631
9095001733
43 parts on this diagram · 2 diagrams in section
