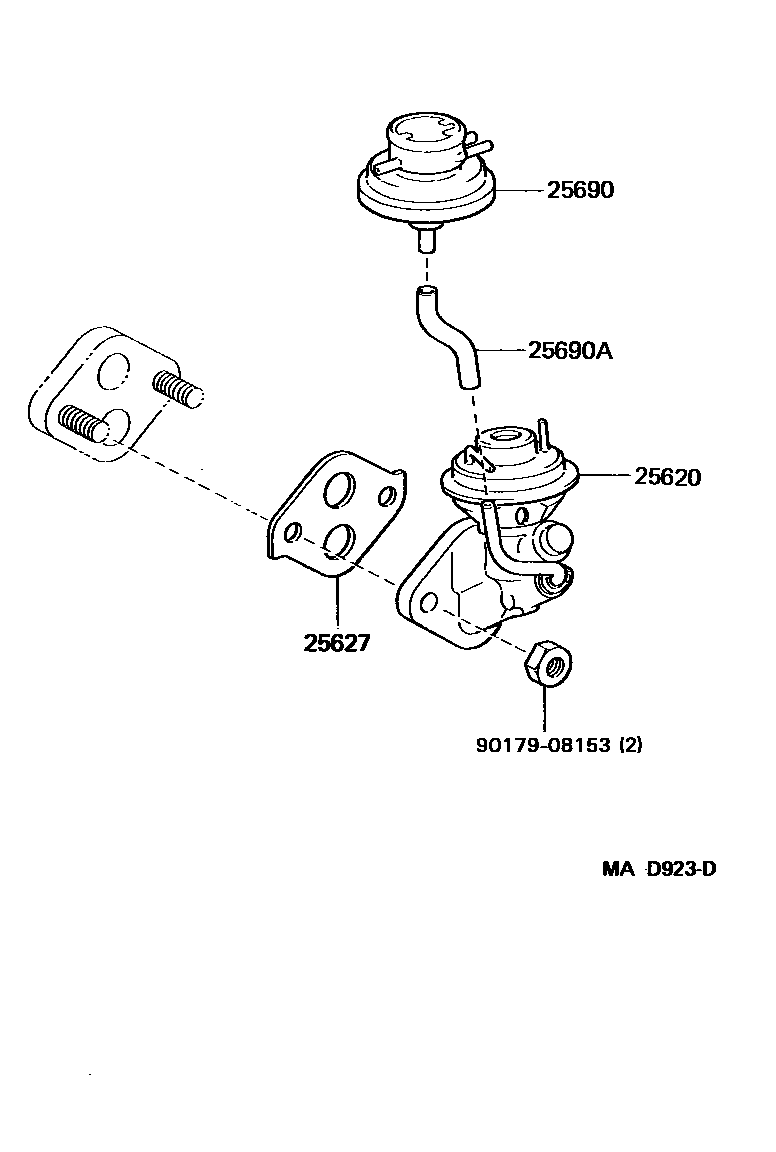

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25620VALVE ASSY, EGR

main25620-15330i4AFE..AT180¥19,500198909-199309

main25620-16121i4AFE..AT180..USA¥19,500198909-199309

CALIFORNIA SPEC

main25620-74180i5SFE..ST184..MTM..USA¥19,800198909-199106

CALIFORNIA SPEC

sub25620-74181¥19,500

main25620-74181i5SFE..ST184..MTM..USA¥19,500199106-199209

CALIFORNIA SPEC

sub25620-74230¥19,500

main25620-74190i5SFE..ST184..ATM..USA¥19,800198909-199106

CALIFORNIA SPEC

sub25620-74191¥19,500

main25620-74191i5SFE..ST184..ATM..USA¥19,500199106-199209

CALIFORNIA SPEC

sub25620-74240¥19,500

main25620-74200i5SFE..ST184..MTM¥19,800198909-199106

sub25620-74201¥19,500

main25620-74201i5SFE..ST184..MTM¥19,500199106-199209

sub25620-74250¥19,600

main25620-74210i5SFE..ST184..ATM¥19,800198909-199106

sub25620-74211¥19,500

main25620-74211i5SFE..ST184..ATM¥19,500199106-199209

sub25620-74260¥19,500

main25620-74220i3SGTE..ST185¥19,500198910-199309

main25620-74230i5SFE..ST184..MTM..USA¥19,500199209-199309

CALIFORNIA SPEC

main25620-74240i5SFE..ST184..ATM..USA¥19,500199209-199309

CALIFORNIA SPEC

main25620-74250i5SFE..ST184..MTM¥19,600199209-199309

main25620-74260i5SFE..ST184..ATM¥19,500199209-199309

25627GASKET, EGR VALVE

main25627-16020i4AFE..AT180¥350198909-199309

main25627-74011i5SFE..ST184¥140198909-199309

main25627-74060i3SGTE..ST185¥140198910-199309

25690MODULATOR ASSY, EGR VACUUM

main25690-88380i3SGTE..ST185¥6,600198910-199309

main25870-16180i4AFE..AT180¥7,500198909-199309

main25870-74090i5SFE..ST184..MTM¥7,600198909-199309

main25870-74100i5SFE..ST184..ATM¥7,500198909-199208

sub25870-74090¥7,600

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-16050i4AFE..AT180¥740198909-199309

main25695-88381i3SGTE..ST185¥2,330198910-199309

main90445-11065i5SFE..ST184¥320198909-199309

9017908153

main90179-08153¥90

5 parts on this diagram · 3 diagrams in section
