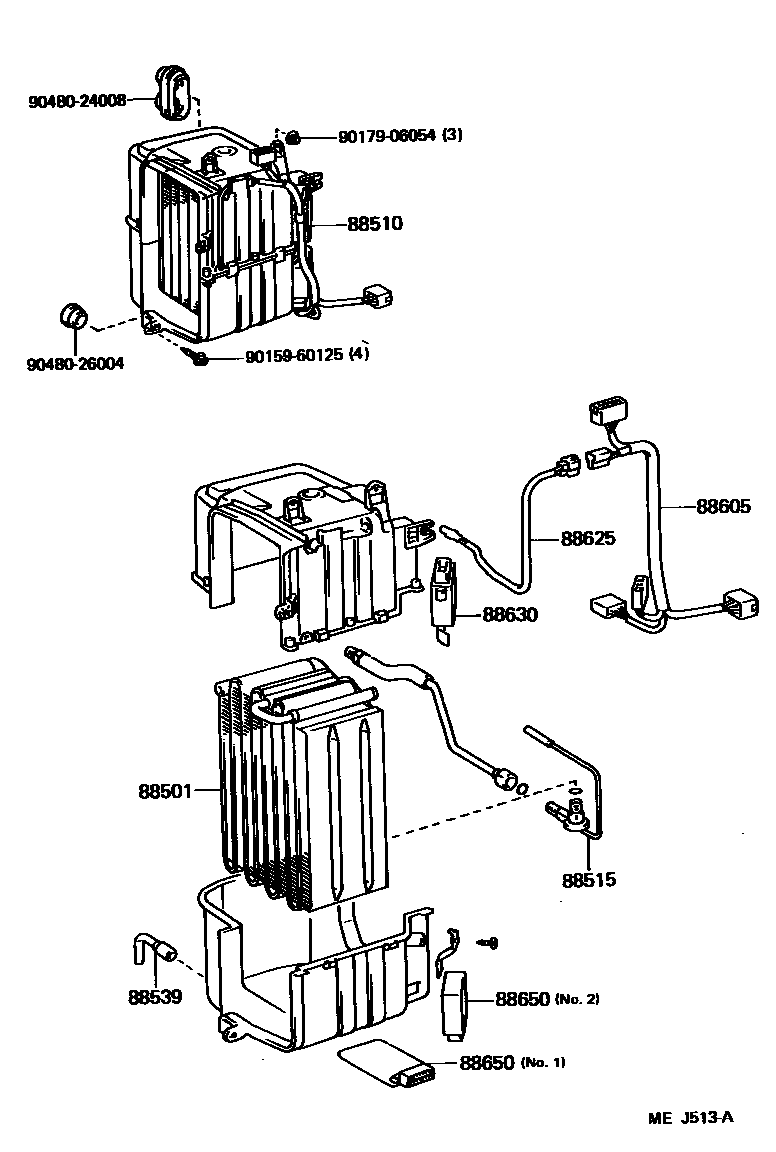

HEATING & AIR CONDITIONING - COOLER UNIT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20211iST162..ST;ST162..CVT198708-198908

88510UNIT ASSY, COOLER

main88510-20500iST162..ST198708-198908

main88510-20520iST162..CVT198708-198908

main88510-20530iST165198710-198908

88515VALVE, COOLER EXPANSION

main88515-16040iST162..ST;ST162..CVT¥7,100198708-198908

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iST162..ST;ST162..CVT198708-198908

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-20590iST162..ST198708-198908

main88605-20601iST162..CVT198708-198908

main88605-20820iST165198710-198908

88625THERMISTOR, COOLER, NO.1

main88625-12070iST16#..(CP,LB)..(GT,GTS,TBO4W,TBOAT)198708-198908

88630RELAY ASSY, COOLER

main88630-20020iST16#..LB198708-198908

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20340iST165198710-198908

NO.2

main88650-20350iST162..ST;ST162..CVT198708-198908

NO.1

main88650-20370iST165198710-198908

NO.1

9015960125

main90159-60125¥120

9017906054

main90179-06054¥100

9048024008

main90480-24008

9048026004

main90480-26004¥0

12 parts on this diagram · 1 diagram in section
